Polymer Material Testing: A Comprehensive Guide to Characterization and Quality Assurance
Why Polymer Material Testing Is Essential
Polymers are among the most widely used engineering materials in the modern world — from commodity packaging films and automotive body panels to high-performance aerospace composites and life-critical medical implants. Their versatility arises from the extraordinary range of properties achievable through molecular design, compounding, and processing — but realizing and verifying those properties in manufactured products requires systematic, rigorous testing.
Polymer material testing provides the objective, quantitative performance data that engineers use for material selection, quality assurance, failure analysis, and regulatory compliance across the automotive, aerospace, electronics, medical device, and industrial sectors. Without it, material properties are claims — not verified facts.
Categories of Polymer Material Testing
Mechanical Testing
Mechanical properties define how a polymer responds to applied forces — its strength, stiffness, toughness, and deformation behavior under service loads:
- Tensile testing (ASTM D638, ISO 527): Yield strength, tensile strength, elongation at break, Young’s modulus — the most fundamental mechanical property set
- Flexural testing (ASTM D790, ISO 178): Flexural modulus and flexural strength for beam-like parts under bending loads
- Impact testing (ASTM D256 Izod; ASTM D6110 Charpy): Energy absorbed during fracture — critical for impact-sensitive applications
- Hardness (ASTM D2240, D785): Surface resistance to indentation — rapid production screening
- Fatigue testing (ASTM D7791): Cyclic loading life — for dynamically stressed components
- Creep and stress relaxation (ASTM D2990): Time-dependent deformation under sustained load — critical for long-term sealing applications
Chemical and Compositional Analysis
- FTIR spectroscopy: Polymer identity, functional group analysis, additive identification
- GC-MS: Volatiles, residual monomers, plasticizer identification
- ICP-MS/OES: Heavy metal and elemental impurity analysis
- TGA: Filler content, carbon black level, thermal decomposition profile
- DSC: Polymer identity, crystallinity, glass transition, melting point, cure state

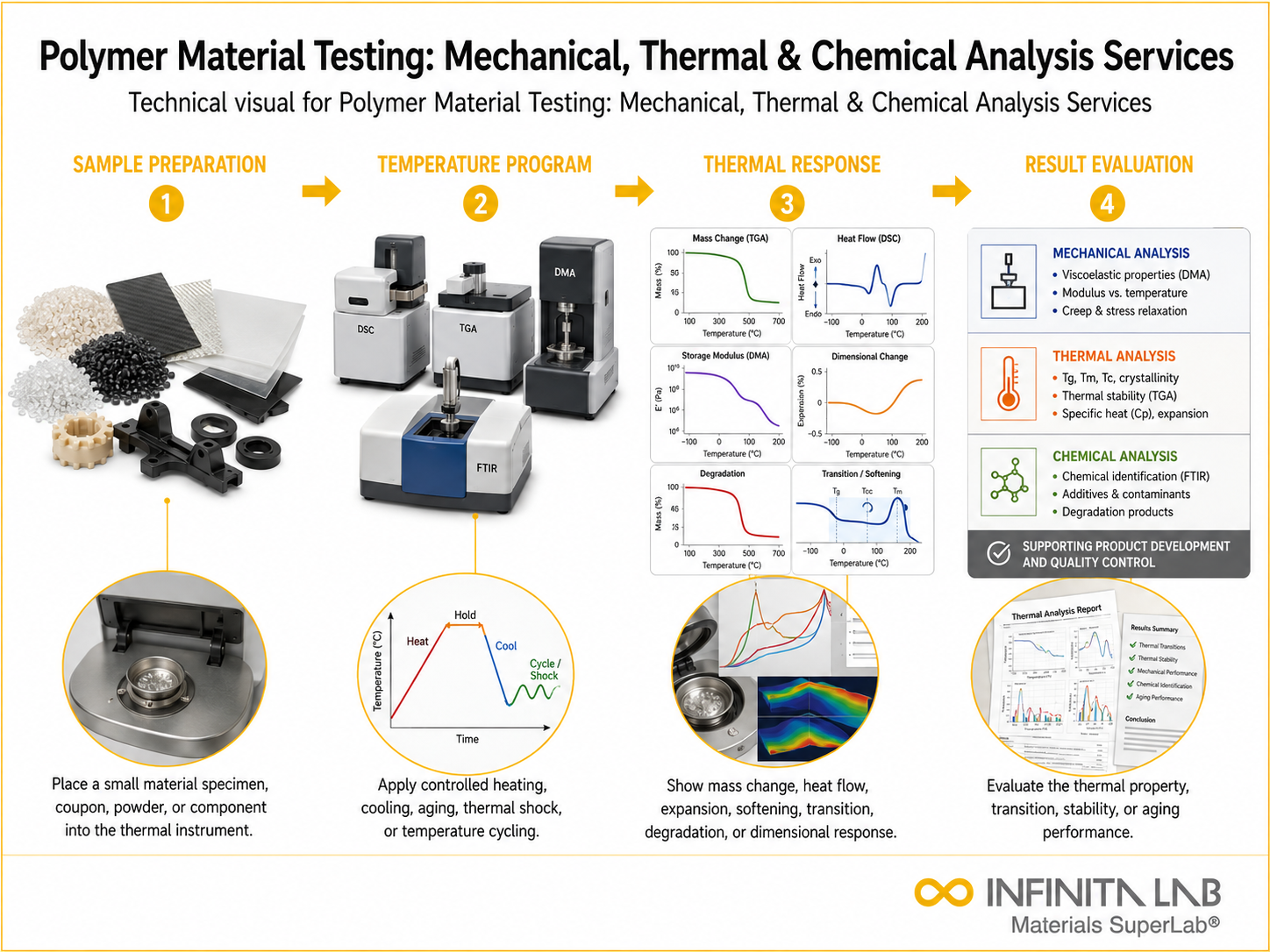

Thermal Analysis
- Heat deflection temperature (HDT) — ASTM D648: Service temperature limit under load — critical for structural applications
- Vicat softening point (VSP) — ASTM D1525: Upper use temperature under indentation load
- TGA (ASTM E1131): Decomposition onset, thermal stability, filler quantification
- DSC (ASTM D3418): Melting, crystallization, Tg, oxidative induction time (OIT)
- Dynamic Mechanical Analysis (DMA — ASTM E1640): Storage/loss modulus vs. temperature; Tg determination
Electrical Testing
- Dielectric constant and dissipation factor (ASTM D150): Capacitive and resistive properties for electronic applications
- Dielectric strength (ASTM D149): Maximum voltage before insulation breakdown
- Volume and surface resistivity (ASTM D257): Insulation and anti-static performance
Environmental and Weathering Testing
- UV weathering (ASTM G154, G155): Photodegradation resistance
- Humidity and moisture resistance (ASTM D570): Water absorption
- Ozone resistance (ASTM D1149): Ozone cracking resistance for elastomers
- Chemical resistance (ASTM D543): Resistance to immersion in test fluids
Polymer Testing Standards Reference
Property Category | Key Standards |
Mechanical | ASTM D638, D790, D256, D2240 |
Thermal | ASTM D648, D1525, E1131, D3418 |
Electrical | ASTM D150, D149, D257 |
Chemical | ASTM D543, D570, D1149 |
Flammability | UL 94, ASTM D635, D3801 |
Conclusion
Polymer material testing is not a single discipline but a coordinated suite of analytical, mechanical, thermal, electrical, and environmental characterization methods — each providing a different dimension of insight into material performance. The most effective testing programs apply the right combination of methods for the specific application requirements and regulatory context, generating data that is traceable, reproducible, and defensible. For polymer product developers and quality engineers, comprehensive material testing is the investment that converts material specifications into verified product performance.
Partnering with Infinita Lab for Polymer Material Testing
Infinita Lab addresses the most frustrating pain points in the polymer testing process: complexity, coordination, and confidentiality. Our platform is built for secure, simplified support, allowing engineering and R&D teams to focus on what matters most — innovation. From kickoff to final report, we orchestrate every detail, fast, seamlessly, and behind the scenes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the difference between ASTM D638 and ISO 527 for tensile testing of plastics? Both measure tensile strength, modulus, and elongation of plastics. Key differences include specimen geometry (dumbbell shape and dimensions differ), test speed, and reporting of modulus (ISO 527 specifies chord modulus; ASTM D638 uses tangent modulus). Results are not directly interchangeable — the standard must be specified in material procurement documents.
How is the glass transition temperature (Tg) measured for polymers? Tg is measured by DSC (as a step change in heat capacity on heating), DMA (as a peak in loss modulus or tan δ), or TMA (as a change in thermal expansion slope). DSC is most common for materials specification; DMA provides the most precise Tg for structural applications where the modulus transition temperature is critical.
What is oxidative induction time (OIT) and why is it tested? OIT (measured by DSC under oxygen atmosphere) quantifies the remaining antioxidant stabilizer content in a polymer — indicating remaining service life or processing history. Geomembranes, pipe materials, and medical-grade polymers with depleted antioxidant stabilizers degrade rapidly in service; OIT testing identifies material approaching end of useful life.
What is UL 94 flammability testing and when is it required? UL 94 classifies plastic materials by their burning behavior under a standardized vertical flame test — from V-0 (self-extinguishing within 10 seconds, no burning drips) to HB (horizontal burning rate limited). UL 94 classification is required for electronic device housings, enclosures, and components under UL, IEC, and national electrical safety regulations.
Can polymer material testing be performed on very small production samples? Most ASTM test methods specify minimum specimen dimensions but offer provisions for sub-size specimens when material is limited. Micro-scale mechanical testing, nano-DSC, and micro-FTIR extend testing capability to milligram-level samples. During product development when material is scarce, Infinita Lab's specialists advise on the most informative test selection given available sample volume.
