What Is an Optical Square in Metrology? Uses and Applications
What Is an Optical Square?
An optical square is a precision optical instrument used in metrology to deflect a laser beam, collimated light beam, or line of sight by exactly 90° — enabling alignment measurement, machine tool squareness verification, and structural plumb/level inspection with sub-arcsecond angular accuracy. It is a fundamental reference tool in precision alignment metrology used alongside autocollimators, alignment telescopes, and laser trackers.

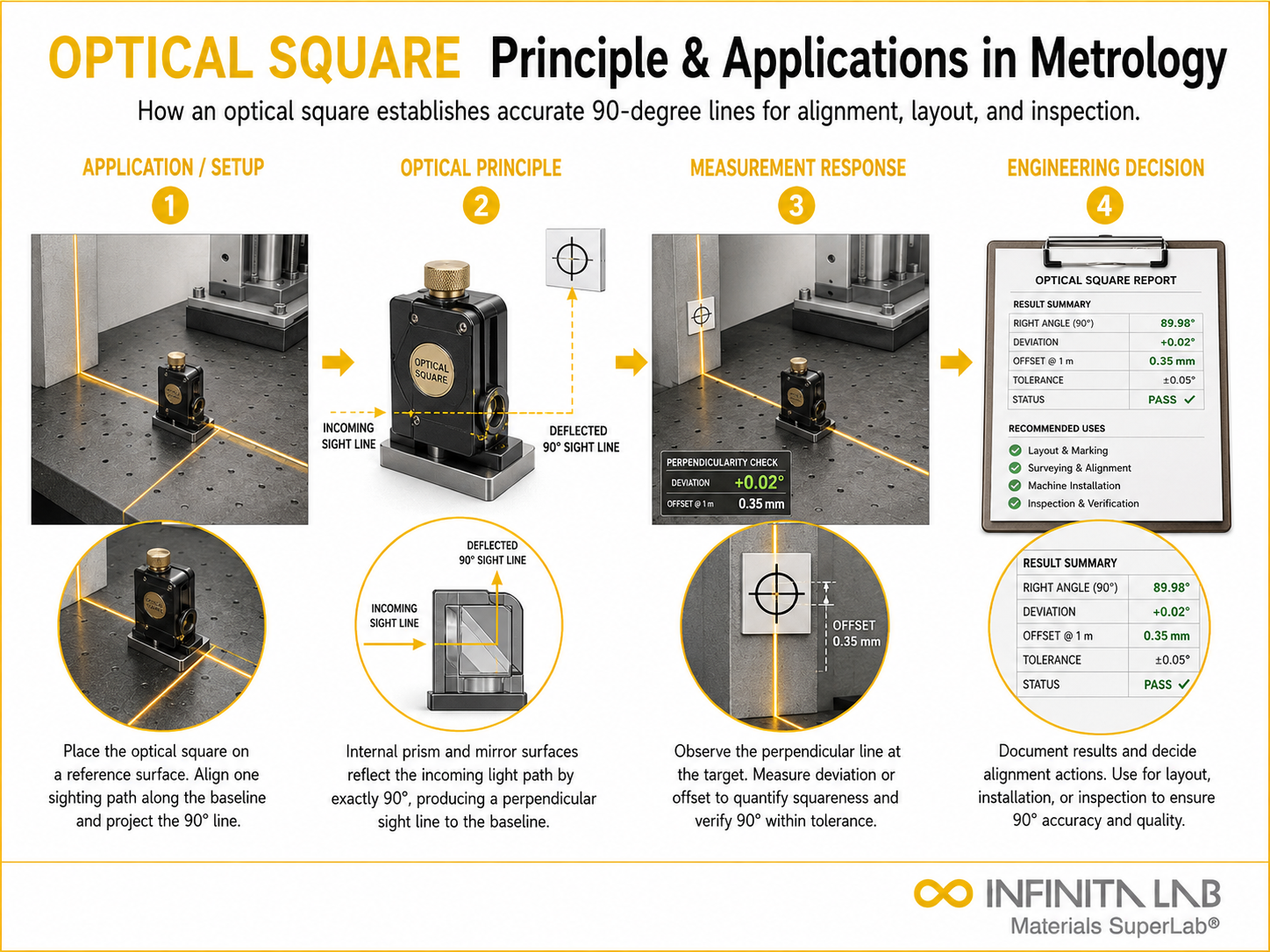

Optical Principle of the Optical Square
The optical square exploits two fundamental optical principles:
Pentaprism Design
The most common optical square type uses a pentaprism — a five-sided glass prism with two reflective surfaces at a specific dihedral angle. The pentaprism reflects an incident beam through exactly 90° regardless of the prism’s orientation about the beam axis. This orientation independence is its critical advantage — small rotations of the pentaprism about the beam axis do not change the deflection angle, making the 90° deflection highly reproducible and independent of mounting alignment.
Mirror-Pair Design
Two precision flat mirrors held at exactly 45° to each other deflect the incident beam through 90° by two successive reflections. The accuracy of the 90° deflection depends critically on the 45° mirror angles being held within arcsecond tolerance.
How Optical Squares Are Used in Precision Metrology
Machine Tool Alignment and Squareness Verification
In CNC machine tool calibration, the optical square is used with an autocollimator to verify the squareness of axis motions:
- The autocollimator measures the angular deviation of a mirror mounted on the moving axis
- The optical square deflects the autocollimator line of sight by 90° to check the perpendicular axis
- This enables measurement of squareness between X-Y, X-Z, or Y-Z axes of machine tools to arcsecond precision — verifying compliance with ISO 230-1 (geometric accuracy of machine tools)
Structural Plumb and Levelness Measurement
Optical squares are used in large structure alignment — verifying that vertical columns are plumb, horizontal beams are level, and floor flatness is within specification in precision manufacturing facilities, clean rooms, and metrology laboratories. The 90° deflection enables the theodolite or alignment telescope to be aimed both horizontally and vertically from a single instrument setup.
Laser Alignment Systems
In precision laser alignment systems for particle accelerators, optical bench equipment, and astronomical telescopes, optical squares deflect the reference laser beam to access measurement points on perpendicular surfaces — extending the reach of the alignment system without repositioning the laser source.
Types of Optical Squares
Roof pentaprism: The standard precision optical square — deflects beam 90° independent of lateral tilt about beam axis. Available in accuracy classes of 5, 10, 20, and 30 arcseconds angular error.
Cube beamsplitter: Splits incident beam into transmitted (0°) and reflected (90°) components simultaneously — enabling alignment of two perpendicular axes simultaneously from a single instrument position.
Surveyor’s optical square: A simpler version using two partially silvered mirrors for construction and surveying applications requiring metre-scale alignment at lower angular accuracy.
Calibration of Optical Squares
Optical squares are calibrated by comparing their deflection angle against a reference angle standard — typically using two autocollimators in an autocollimator reversal method. The 90° error of the optical square is determined to arcsecond accuracy, and the result is documented in a calibration certificate with measurement uncertainty.
Industrial Applications
In precision engineering, optical squares are standard equipment in machine tool calibration laboratories for ISO 230 geometric accuracy testing. In semiconductor equipment manufacturing, the sub-arcsecond squareness of wafer stage axes must be verified using optical squares and autocollimators. In metrology laboratories, optical squares enable the alignment of measurement axes in large coordinate measuring systems.
Why Choose Infinita Lab for Precision Alignment Metrology?
Infinita Lab provides precision dimensional metrology services — including squareness verification, machine tool calibration, and alignment measurement — through our nationwide accredited metrology laboratory network with traceable instrumentation.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you.
Frequently Asked Questions (FAQs)
What is the accuracy of a precision pentaprism optical square? High-accuracy pentaprisms achieve 90° deflection with angular errors of ±2–5 arcseconds. Ultra-precision versions achieve ±0.5–1 arcsecond for demanding alignment applications. The accuracy class required depends on the geometric tolerance being measured — machine tool squareness tolerances of 10–20 µm/m correspond to angle tolerances of approximately 2–4 arcseconds.
Why is the pentaprism preferred over a flat mirror for machine tool squareness measurement? A flat mirror deflects by 90° only if mounted precisely at 45°. Mounting errors directly add to the measured squareness error. The pentaprism deflects exactly 90° independent of its tilt about the beam axis — small mounting imperfections do not affect the deflection accuracy. This insensitivity to mounting errors makes the pentaprism much more practical for field machine tool calibration.
What is an autocollimator and how does it work with an optical square? An autocollimator projects a collimated beam of light onto a plane mirror and measures the angular deviation of the reflected beam to determine the mirror's tilt angle — with accuracy of 0.01–1 arcsecond. Combined with an optical square, the autocollimator can measure angular deviations of machine axes in two orthogonal planes by sequentially deflecting the measurement beam 90° using the optical square.
How does ISO 230-1 use optical squares for machine tool geometric accuracy testing? ISO 230-1 requires squareness measurement between all pairs of linear axes (X-Y, X-Z, Y-Z) on CNC machining centres. The procedure uses an autocollimator aligned with one axis and an optical square to deflect the measurement to the perpendicular axis — measuring the angular deviation from true squareness as the axes travel through their full range.
Can optical squares be used for laser level alignment in large structures? Yes. Large-scale alignment applications — levelling of precision machine tool foundations, alignment of metrology equipment, and structural plumb verification in tall buildings — use optical squares to extend laser level or theodolite reference lines through 90° bends and around corners without repositioning the primary instrument.
