Heat Exchanger Failure Analysis: Root Causes, Corrosion & Testing Methods
The Importance of Heat Exchanger Failure Analysis
Heat exchangers are critical process components in the oil and gas, power generation, HVAC, and chemical processing industries — transferring thermal energy between process fluids while maintaining physical separation. When heat exchangers fail — through corrosion, fouling, erosion, or mechanical fatigue — the consequences range from process inefficiency and unplanned downtime to catastrophic loss of containment, fire, and explosion. Systematic failure analysis identifies root causes, supports insurance and warranty claims, guides repair or replacement decisions, and drives design improvements to prevent recurrence.
Common Heat Exchanger Failure Modes
Corrosion Under Insulation (CUI)
External corrosion beneath thermal insulation — driven by trapped moisture cycling through wet-dry cycles — is a leading cause of pressure boundary failures in insulated piping and shell-and-tube heat exchangers. CUI is often invisible until advanced pitting or wall thinning causes leakage. External ultrasonic pulsed eddy current (PEC) inspection and radiography can detect CUI without removing insulation.
Pitting and Crevice Corrosion
Chloride-containing process fluids or cooling water cause pitting corrosion on stainless steel and aluminum tube surfaces, with crevice attack at tube-to-tubesheet rolled joints. Pitting initiates at inclusions or passive film defects, progressively penetrating tube walls until through-pitting leakage causes process fluid mixing. SEM-EDS analysis of pit morphology and deposit chemistry identifies the corrosive species responsible.
Erosion-Corrosion
High-velocity, particle-laden fluids or multiphase flow (liquid-gas) cause combined erosion-corrosion on tube inlet ends, bend extrados, and impingement zones downstream of inlet nozzles. Characteristic scalloped or horseshoe erosion patterns and accelerated metal removal in flow direction confirm erosion-corrosion as the failure mechanism.
Stress Corrosion Cracking (SCC)
Residual tensile stresses from tube rolling, cold working, or differential thermal expansion — combined with corrosive environments (chlorides for austenitic stainless steels, ammonia for brass) — cause transgranular or intergranular SCC. SCC failures are characteristically branched, brittle-appearing transgranular cracks with little bulk plastic deformation. Metallographic cross-section and SEM fractography confirm SCC morphology.
Fouling-Induced Failure
Fouling deposits — calcium carbonate scale, biofouling, oil, and process deposits — reduce heat-transfer efficiency and can create differential-aeration cells that accelerate corrosion beneath them. Deposit characterization by XRD (crystalline phases), FTIR (organic species), and ICP-OES (elemental composition) identifies fouling mechanisms and guides chemical cleaning programs.
Analytical Methods for Heat Exchanger Failure Analysis

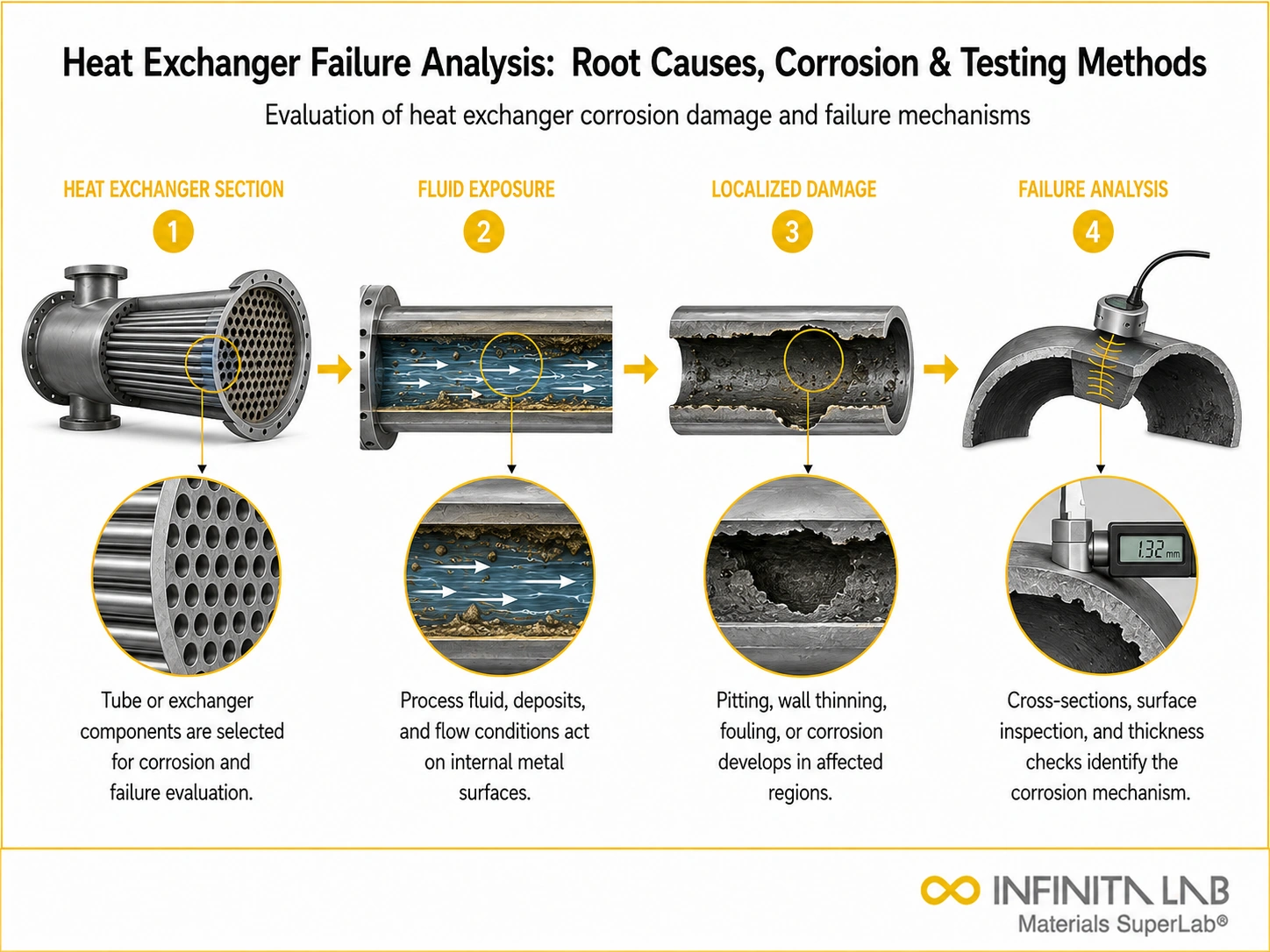

A comprehensive failure analysis protocol for heat exchangers includes: visual and dimensional inspection, leak location by pressure testing, wall thickness measurement by UT, metallographic section preparation, optical and SEM microscopy for microstructure and fracture morphology, EDS for deposit and corrosion product chemistry, ASTM A262 for intergranular corrosion susceptibility, and hardness testing for overheating or improper heat treatment assessment.
Conclusion
Failure analysis of a heat exchanger is critical for determining the root causes of degradation, including corrosion, erosion, fouling, and stress cracking. This is possible through employing sophisticated inspection and analytical methods. This will help avoid expensive downtime, improve reliability, and increase safety. Proper failure analysis is also helpful for selecting materials and developing strategies for critical applications.
Why Choose Infinita Lab for Heat Exchanger Failure Analysis?
With Infinita Lab, you are guaranteed a Nationwide Network of Accredited Laboratories, the best consultants from around the world, convenient sample pick-up and delivery, and fast turnaround time. Our specialists guide heat exchanger failure analysis from root cause investigation to corrective action recommendations.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090. [Request a Quote]
Frequently Asked Questions
What is the most common cause of heat exchanger tube failure? Pitting corrosion from chloride-containing cooling water or process fluids is the most common cause of heat exchanger tube failures, particularly in austenitic stainless steel (304, 316) and copper alloy (admiralty brass, Cu-Ni) tube bundles. Cooling tower water chemistry excursions, inadequate biocide treatment, and stagnant dead legs create aggressive localized corrosion conditions.
How is stress corrosion cracking distinguished from fatigue cracking in heat exchanger tubes? SCC produces branched, brittle transgranular or intergranular cracks with minimal plastic deformation, typically initiating from corrosion pits on the tube surface. Fatigue cracks are typically single, non-branched, and show beach marks (fatigue striations) on the fracture surface under SEM. Both can initiate from pitting, but SCC progresses without cyclic loading while fatigue requires repeated stress cycling.
What is flow-accelerated corrosion (FAC) and how is it detected? FAC is the dissolution of the protective magnetite (Fe₃O₄) layer on carbon steel surfaces in high-velocity water or wet steam flow — exposing fresh metal to continued corrosive attack. It causes characteristic orange-peel or horseshoe patterns on internal pipe and heat exchanger surfaces. Detection involves wall thickness trending by UT, iron oxide (magnetite) deposit analysis by XRD, and dissolved iron monitoring in process fluid.
What information does deposit analysis provide in heat exchanger failure investigation? Deposit characterization using XRD, FTIR, and ICP-OES identifies fouling sources. Calcium carbonate suggests hardness issues, iron oxides indicate corrosion transport, and biological deposits reveal inadequate biocide treatment in systems.
What standards govern heat exchanger inspection and failure analysis? ASME Section VIII Div. 1 and TEMA (Tubular Exchanger Manufacturers Association) standards govern heat exchanger design and fabrication. API 510 (Pressure Vessel Inspection) and API 571 (Damage Mechanisms) govern in-service inspection and damage mechanism recognition. ASTM A262, G48, G71, and NACE MR0175/ISO 15156 provide material-specific corrosion testing and evaluation standards.
