Fault Tree Analysis (FTA) for Electronics: Solving Complex Root Cause Failures
Fault Tree Analysis (FTA) is a systematic, top-down failure analysis methodology that uses Boolean logic to identify the combinations of component failures, human errors, and environmental conditions that can lead to an undesired system-level event. Originally developed for aerospace and nuclear safety, FTA has become essential for investigating electronic failures across the semiconductor, automotive, medical devices, telecommunications, and defense industries. For companies seeking fault tree analysis and electronic failure investigation support from a US-based testing lab, Infinita Lab provides comprehensive analytical services through its accredited laboratory network.
How Fault Tree Analysis Works

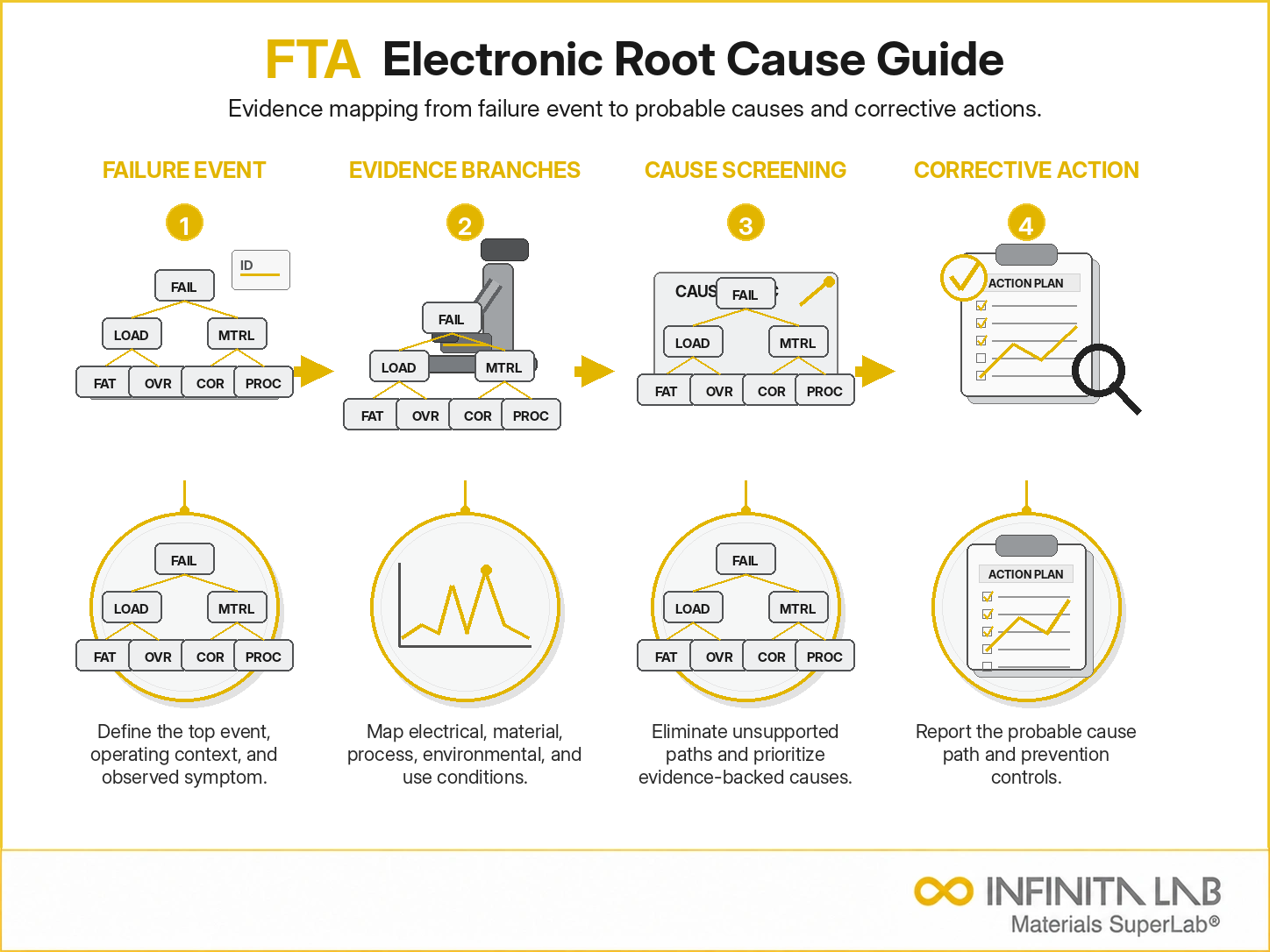

FTA begins with defining a top-level undesired event (system failure) and systematically works downward to identify all possible contributing causes. Logic gates (AND, OR, NOT) connect events at each level, creating a graphical tree structure that maps causal relationships. AND gates indicate that all input events must occur simultaneously, while OR gates indicate that any single input event can cause the output.
Key Elements of a Fault Tree
Top Event
The system-level failure being investigated includes a complete electronic system malfunction, loss of safety-critical functions, or product field failure.
Intermediate Events
Subsystem or circuit-level failures that contribute to the top event, such as power supply failure, signal integrity degradation, or communication bus error.
Basic Events
The lowest-level individual component failures, manufacturing defects, or environmental stresses that initiate the failure chain—such as capacitor dielectric breakdown, solder joint fatigue crack, or ESD damage to an IC.
Applications in Electronic Failure Analysis
FTA is applied to investigate field failures by mapping all possible failure paths, evaluating system reliability, and identifying single points of failure, supporting design reviews by quantifying failure probability, complying with safety standards (IEC 61025, ISO 26262 for automotive, IEC 60812), and prioritizing root cause investigation when multiple failure modes are possible.
Combining FTA with Physical Analysis
FTA identifies candidate root causes, which are then confirmed through physical failure analysis, including electrical characterization, X-ray and acoustic microscopy, cross-sectional analysis (FIB/SEM), and materials characterization (EDS, FTIR). This combination of logical and physical analysis ensures that root causes are both theoretically sound and physically verified.
Partnering with Infinita Lab for Optimal Results
Infinita Lab addresses the most frustrating pain points in the Fault Tree Analysis testing process: complexity, coordination, and confidentiality. Our platform is built for secure, simplified support, allowing engineering and R&D teams to focus on what matters most: innovation. From kickoff to final report, we orchestrate every detail—fast, seamlessly, and behind the scenes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is Fault Tree Analysis? FTA is a top-down, deductive failure analysis method that uses logic diagrams to identify all combinations of events (component failures, errors, conditions) that can cause a specific system-level failure.
What is the difference between FTA and FMEA? FTA starts from a top-level failure and works downward to find causes (deductive), while FMEA starts from individual component failure modes and works upward to determine system effects (inductive). They provide complementary perspectives.
What standards govern Fault Tree Analysis? IEC 61025 covers FTA methodology; ISO 26262 requires FTA for automotive functional safety; IEC 61508 covers industrial safety systems; and NASA and military standards define FTA requirements for aerospace and defense applications.
What are AND gates and OR gates in FTA? AND gates mean that all input events must occur for the output event to occur (simultaneous failures). OR gates mean any single input event alone can cause the output event. This logic structure maps failure combinations.
How does FTA help electronic design? FTA identifies single points of failure, quantifies system reliability, evaluates redundancy effectiveness, and highlights critical components requiring higher reliability grades—enabling designers to improve system robustness before production.
