ASTM D1525: Vicat Softening Temperature Test for Plastics
What Is ASTM D1525?
ASTM D1525 — Standard Test Method for Vicat Softening Temperature of Plastics — defines the standardised procedure for determining the Vicat Softening Point (VSP) of thermoplastic materials. It is the primary US standard for this test, providing precise specifications for apparatus design, specimen preparation, test fluid, loading conditions, heating rate, and penetration measurement — ensuring reproducible, comparable VSP data across laboratories worldwide.
Scope of ASTM D1525
ASTM D1525 applies to rigid and semi-rigid thermoplastics that soften progressively with increasing temperature rather than melting sharply. It is applicable to a broad range of materials including:
- Polyolefins (polyethylene, polypropylene, polybutylene)
- Rigid PVC and CPVC
- Polystyrene and ABS
- Polycarbonate, acetal (POM), and nylon
- Engineering thermoplastics (PEEK, PPS, PEI) with appropriate high-temperature apparatus
It is not applicable to thermosetting polymers (which do not soften on heating), highly flexible plastics (insufficient rigidity for indenter resistance), or materials with very broad softening ranges where the endpoint is ambiguous.
ASTM D1525 Apparatus Requirements
Test Needle
The indenter must have a flat circular cross-section of 1.000 ± 0.015 mm², corresponding to a diameter of 1.128 mm. The needle tip must be smooth and free of burrs. The needle and attached loading mass must be perpendicular to the specimen surface to within ±1°.
Load Application
Weights are placed on the needle loading platform to achieve the required total load (needle + platform + added weight):
- Methods A and C: 10 N (1019 gf) total load
- Methods B and D: 50 N (5097 gf) total load
Heating Bath
The heat transfer medium is a liquid bath (silicone oil, di-2-ethylhexyl phthalate, or glycerol — selected based on the expected VSP range) with a calibrated thermometer or thermocouple accurate to ±0.5°C. The bath must be stirred to ensure temperature uniformity within ±0.5°C of the reported temperature.
Penetration Measurement
A calibrated dial gauge, LVDT, or digital depth indicator measures needle penetration to ±0.01 mm. The VSP is the temperature when 1.000 ± 0.020 mm penetration depth is achieved.

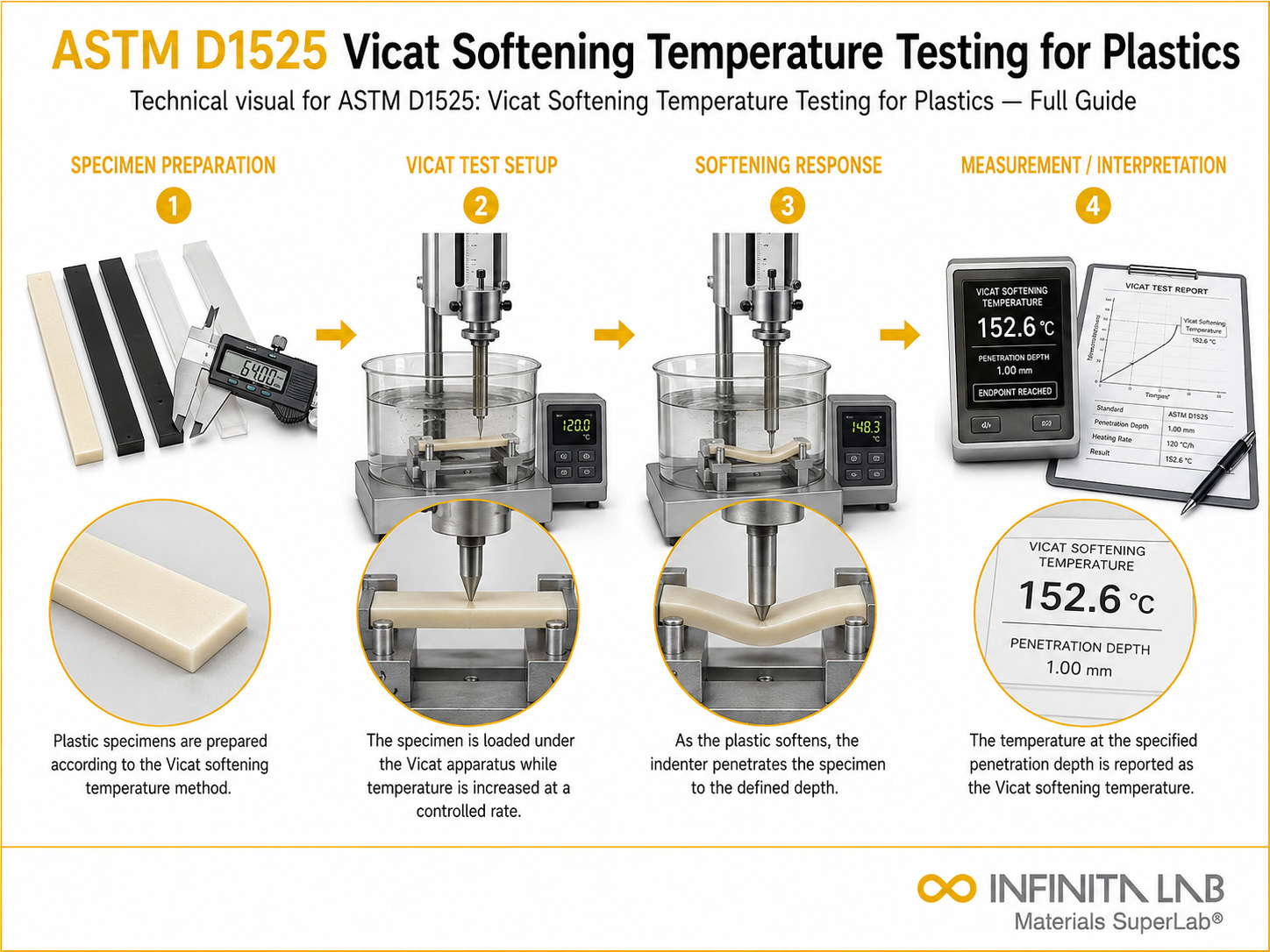

ASTM D1525 Test Procedure in Detail
- Specimen preparation: Three specimens minimum, each at least 10 mm × 10 mm in plan area, minimum 3 mm thick. Moulded or machined surfaces; specimens must be free of surface defects and properly conditioned (23°C, 50% RH, 40 hours minimum).
- Apparatus setup: The specimen is placed on the support table in the heat transfer bath at the starting temperature (below expected VSP). The needle is lowered to rest on the specimen surface under the minor load (9.81 N). The dial gauge is zeroed.
- Load application: The full test load (10 N or 50 N as applicable) is applied by adding the specified weights to the loading platform.
- Heating: The bath is heated at 50°C/hour ± 5°C/hour (Methods A, B) or 120°C/hour ± 5°C/hour (Methods C, D).
- Endpoint recording: The temperature when the needle penetrates 1 mm (1.000 ± 0.020 mm) is recorded as the Vicat Softening Point for that specimen.
- Reporting: The mean VSP of three specimens is reported, along with the test method designation (D1525 Method A50, B50, A120, or B120) and test fluid used.
Precision and Bias of ASTM D1525
The precision statement in ASTM D1525 specifies:
- Repeatability (within-laboratory): ±2°C for most thermoplastics at 50 N load
- Reproducibility (between-laboratory): ±4°C for most thermoplastics at 50 N load
These precision values guide interpretation of differences between supplier data, in-house test results, and third-party laboratory results — differences within the reproducibility range cannot be considered statistically significant.
Common VSP Values for Reference Thermoplastics (Method B50)
| Material | Typical VSP B50 (°C) |
| LDPE | 85–100 |
| HDPE | 120–130 |
| Polypropylene homopolymer | 150–165 |
| Rigid PVC | 75–85 |
| Polystyrene | 95–100 |
| ABS | 95–110 |
| Polycarbonate | 145–155 |
| Nylon 6 | 180–215 |
Industrial Applications of ASTM D1525 Data
ASTM D1525 VSP data appears in material data sheets as a standard property — enabling engineers to quickly compare upper service temperature capability across candidate materials. Material specifications for plastic pipe (ASTM D1785), plumbing fittings, automotive interior components, and electrical enclosures incorporate minimum VSP requirements to ensure service temperature capability.
Why Choose Infinita Lab for ASTM D1525 Testing?
Infinita Lab provides ASTM D1525 Vicat Softening Temperature testing through our nationwide accredited polymer testing laboratory network with all four method variants (A50, B50, A120, B120) available.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you.
Frequently Asked Questions (FAQs)
What is the standard heating rate in ASTM D1525 Methods A and B? Methods A and B use a heating rate of 50°C/hour ± 5°C/hour. Methods C and D use 120°C/hour ± 5°C/hour. The faster heating rate (120°C/h) typically produces VSP values 2–5°C higher than the 50°C/h rate for the same material due to thermal lag effects.
Why is specimen surface condition important in ASTM D1525? The needle must make full, flat contact with the specimen surface. Surface roughness, waviness, or surface skin layers from injection moulding can cause inconsistent needle seating — introducing error in the zero penetration reference position. Specimens should be smoothly machined or press-moulded with a flat, flash-free contact surface for best repeatability.
Can ASTM D1525 be performed on specimens cut from finished products? Yes, provided the minimum specimen dimensions (10 × 10 mm area, 3 mm minimum thickness) can be achieved from the product. For thick-walled products (>3 mm), a flat, parallel-sided slice is cut. For thin products, specimens may be stacked to achieve 3 mm minimum total thickness, per the note in ASTM D1525.
What is the relationship between ASTM D1525 and ISO 306? ASTM D1525 and ISO 306 are technically equivalent standards defining the same Vicat test method with the same load and heating rate combinations. Results from laboratories following either standard should be comparable. The load/rate designations differ slightly in labelling convention (ASTM: A/B/C/D; ISO: A50/B50/A120/B120) but correspond to the same conditions.
Does surface finish from machining affect ASTM D1525 results? Heavily machined or ground specimens may have a work-hardened or heat-affected surface skin with slightly different thermal softening behaviour than the bulk material. Best practice is to use moulded specimens with a smooth, undamaged surface, or to machine specimens at low cutting depth and speed to minimize surface heating and damage.
