Advantages of Thermal Shock Resistance Testing for Component Reliability
Thermal shock resistance testing is a critical evaluation method that assesses how materials and components respond to sudden, extreme temperature changes. When a material is rapidly transitioned between high and low temperatures, differential expansion and contraction generate internal stresses that can cause cracking, delamination, or structural failure. For manufacturers in the aerospace, automotive, electronics, ceramics, and glass industries, thermal shock testing at a US-based materials testing lab like Infinita Lab ensures product safety, durability, and compliance with ASTM and MIL standards.
What Is Thermal Shock Resistance Testing?
Thermal shock resistance testing subjects material specimens to rapid temperature transitions—either through air-to-air chambers, liquid-to-liquid immersion, or air-to-liquid methods—to evaluate their ability to withstand thermal stress without physical damage. The test measures whether materials develop cracks, warping, delamination, or other forms of structural failure after repeated thermal cycling. Standards such as MIL-STD-810 Method 503, ASTM C1525 (advanced ceramics), and ASTM C149 (glass containers) govern testing procedures across different material types and applications.
Key Benefits of Thermal Shock Resistance Testing
Detecting Hidden Weak Spots in Materials
Thermal shock testing reveals internal flaws and stress-concentration points that are not visible under standard visual inspection. In the ceramics and glass industries, this capability is essential for qualifying materials used in high-temperature kilns, furnace linings, and architectural glazing.
Evaluating Material Durability Under Real-World Conditions
By simulating the rapid temperature fluctuations encountered in actual service environments, thermal shock tests provide reliable durability data. Automotive manufacturers use this testing to validate exhaust system components, brake assemblies, and engine parts that experience extreme thermal cycling during operation.
Enhancing Product Safety and Reliability
Materials used in safety-critical applications—from aerospace heat shields to electronic device housings—must withstand thermal extremes without catastrophic failure. Thermal shock testing confirms that products meet the safety margins required for their intended operating environments.
Reducing Costs and Preventing Field Failures
Identifying thermally vulnerable materials during development avoids costly warranty claims, product recalls, and safety incidents after deployment. In the construction and building materials industries, early screening of insulation, roofing, and sealant materials helps prevent in-service degradation.
Meeting Regulatory and Compliance Requirements
Regulatory bodies in aerospace (MIL-STD-810), electronics (IEC 60068), and ceramics (ASTM C1525) require thermal shock qualification testing. Passing these tests is a prerequisite for material certification, product approval, and market entry in regulated industries.

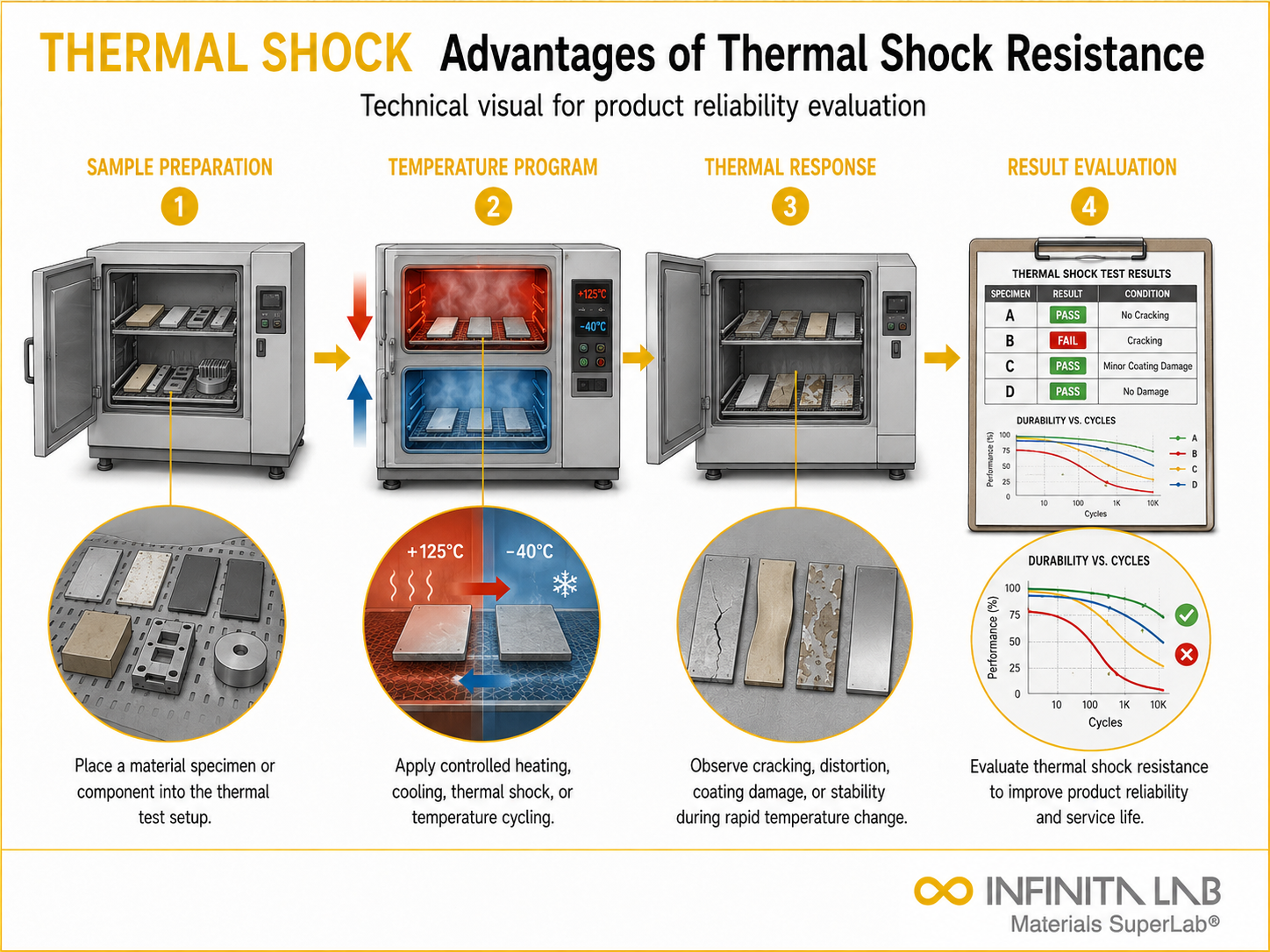

Testing Methods for Thermal Shock Resistance
- Air-to-Air Thermal Shock Testing
Specimens are cycled between hot and cold air chambers with transition times as short as a few seconds. This method is widely used for evaluating electronic components, semiconductor packages, and structural assemblies in the devices and aerospace sectors. Infinita Lab’s chambers operate from -70°C to +180°C.
- Liquid-to-Liquid Thermal Shock Testing
Materials are rapidly transferred between hot and cold liquid baths, producing more severe thermal gradients than air methods. This approach is commonly applied to ceramics, glass, and refractory materials per ASTM C1525 and ASTM C149.
- Cryogenic Thermal Shock Testing
For materials intended for extreme low-temperature applications, specimens are exposed to temperatures below -100°C before a rapid transition to elevated temperatures. This tests the material’s ability to withstand the extreme thermal stresses encountered in aerospace and cryogenic equipment.
Industry Applications
Thermal shock resistance testing is used across diverse industries. In aerospace, it qualifies heat shields, turbine blade coatings, and structural composites. In automotive, it validates engine parts, brake systems, and exhaust components. The electronics and semiconductor industries use it for package qualification and PCB reliability. The ceramics and glass sectors apply it to kiln linings, cookware, laboratory ware, and architectural glass. Construction applications include testing insulation materials, roofing membranes, and concrete additives for climate resilience.
Infinita Lab: Your Material Testing Partner
Contact Infinita Lab for Thermal Shock Resistance Testing to enjoy major benefits, including end-to-end testing management, faster turnaround, and reduced administrative burden. Gain confidence in accurate results and reduced stress in vendor coordination. Enhance your reputation for product reliability and innovation. Engineers and R&D managers can focus on core work rather than testing logistics.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the difference between thermal shock testing and thermal cycling testing? Thermal shock testing uses rapid temperature transitions (seconds to minutes) to induce sudden thermal stress, while thermal cycling testing involves gradual, controlled temperature ramps over longer periods. Shock testing is more aggressive and targets brittle failure modes.
What materials are commonly tested for thermal shock resistance? Ceramics, glass, metals, composites, electronic components, semiconductor packages, plastics, and coatings are all commonly evaluated for thermal shock resistance, depending on their intended applications and industries.
What ASTM standards apply to thermal shock testing? Key standards include ASTM C1525 for advanced ceramics by water quenching, ASTM C149 for glass container thermal shock, and MIL-STD-810 Method 503 for military and aerospace components. IEC 60068-2-14 covers environmental testing for electronics.
How many thermal shock cycles are typically required? Cycle count varies by standard and application. Electronics qualification may require 100 to 1,000 cycles, while ceramic evaluations may involve fewer cycles with more extreme temperature differentials. The specific requirement depends on the applicable standard.
Can thermal shock testing be performed on finished products? Yes, thermal shock testing can be performed on both raw material specimens and finished products or assemblies. Testing finished products provides realistic data on how complete systems respond to thermal stress in actual operating conditions.
