ASTM E3205 Small Punch Testing

Scope

ASTM E3205 covers the procedure for conducting small punch deformation tests on metallic materials using a miniature disc specimen, recording the load-displacement response from which mechanical behavior is characterized.

Key aspects of the test scope include:

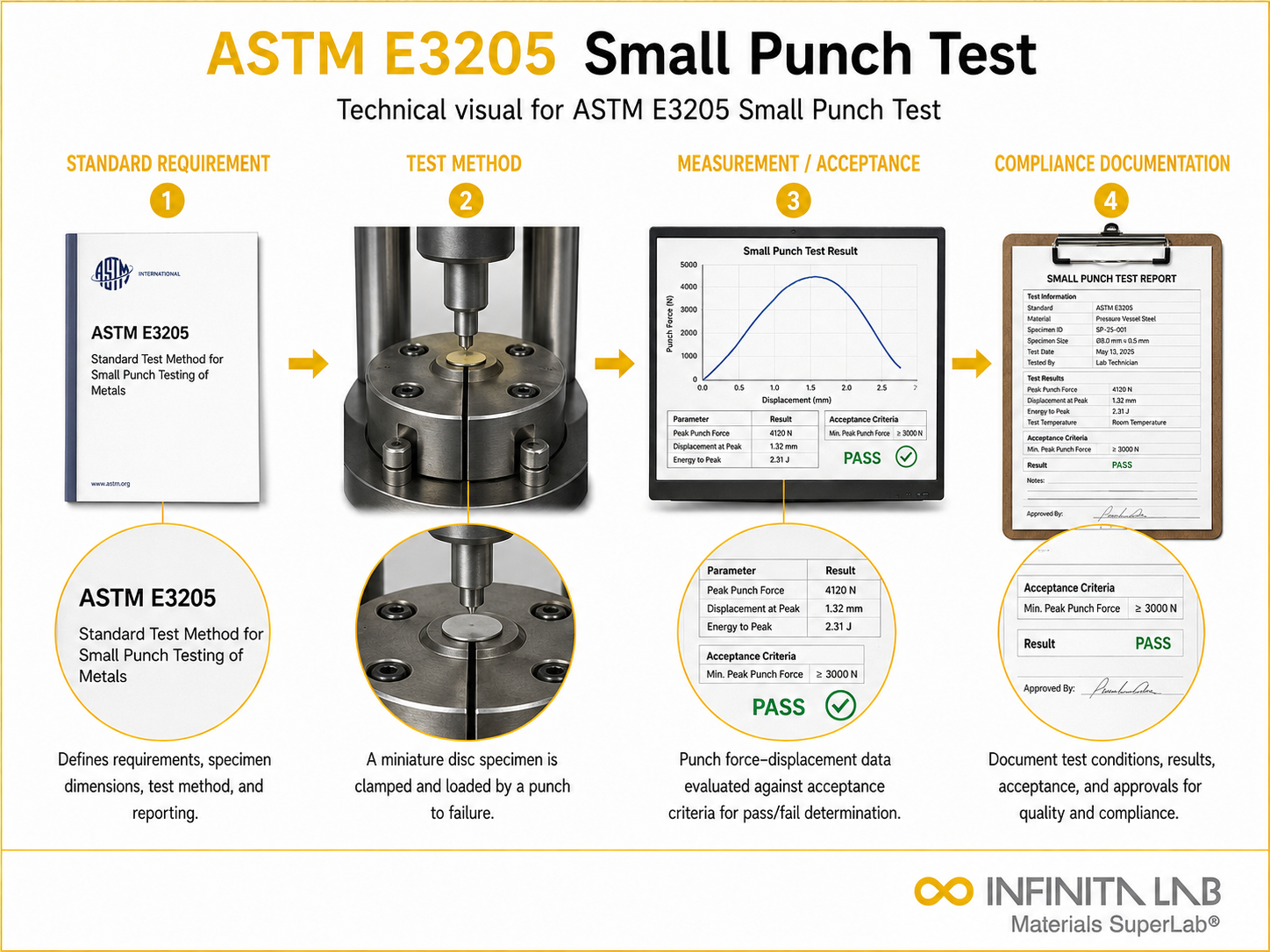

• Test principle – a small disc specimen is clamped around its periphery and a hemispherical-tipped punch (or punch with a ball) is driven through the center at a controlled rate, deforming the disc to fracture
• Specimen – a miniature disc (typically a few mm diameter and sub-millimeter thickness), enabling testing where only a small material volume is available
• Measured output – the load-versus-punch-displacement curve, whose regions (elastic, plastic, membrane stretching, and failure) correlate with material properties
• Properties characterized – yield-related behavior, ultimate strength, and ductility/fracture behavior estimated by correlation from the SP curve
• Temperature capability – testing can be conducted across a range of temperatures, supporting ductile-to-brittle transition and embrittlement assessment
• Material focus – metallic materials, including cases where specimen size is constrained by small irradiation volume or high radioactivity
• Correlation-based interpretation – SP results relate to conventional properties through established correlations rather than direct standardized measurement

Applications

• In-service component condition assessment – characterizing the current mechanical condition of plant and components using small samples removed without taking the component out of service or significantly damaging it
• Nuclear and irradiated materials – evaluating radiation damage and embrittlement where the available specimen volume is small and the activity is high, making the miniature specimen a major practical advantage
• Remaining-life and aging assessment – tracking how a material’s properties have changed due to thermal aging, embrittlement, or service exposure
• Welds and heat-affected zones – characterizing small, localized regions such as weld metal and HAZ where a full-size specimen cannot be extracted
• Thin materials and coatings – assessing thin sheets, foils, and surface regions that cannot provide standard specimens
• Research and development – generating mechanical data from limited quantities of experimental or rare materials
• Ductile-to-brittle transition evaluation – testing across temperatures to assess transition behavior in small specimens

Benefits

• Requires only a tiny amount of material – the miniature disc enables mechanical characterization where standard specimens cannot be obtained, the method’s defining advantage
• Enables near-non-destructive component assessment – small samples can be taken from in-service components with minimal impact, allowing condition assessment without removing or scrapping the component
• Practical for irradiated and hazardous materials – the small specimen volume and low activity make it far more practical to handle irradiated nuclear materials than full-size specimens
• Characterizes small and localized regions – welds, HAZs, coatings, and thin sections can be evaluated where conventional testing is impossible
• Supports aging and embrittlement tracking – the method is well suited to monitoring how material condition evolves over service life, including radiation and thermal effects
• Maximizes information from scarce material – for rare, expensive, or limited experimental materials, the small punch test extracts mechanical data from minimal sample volume
