Top 20 Mining Materials Testing Methods for Ore & Mineral Analysis

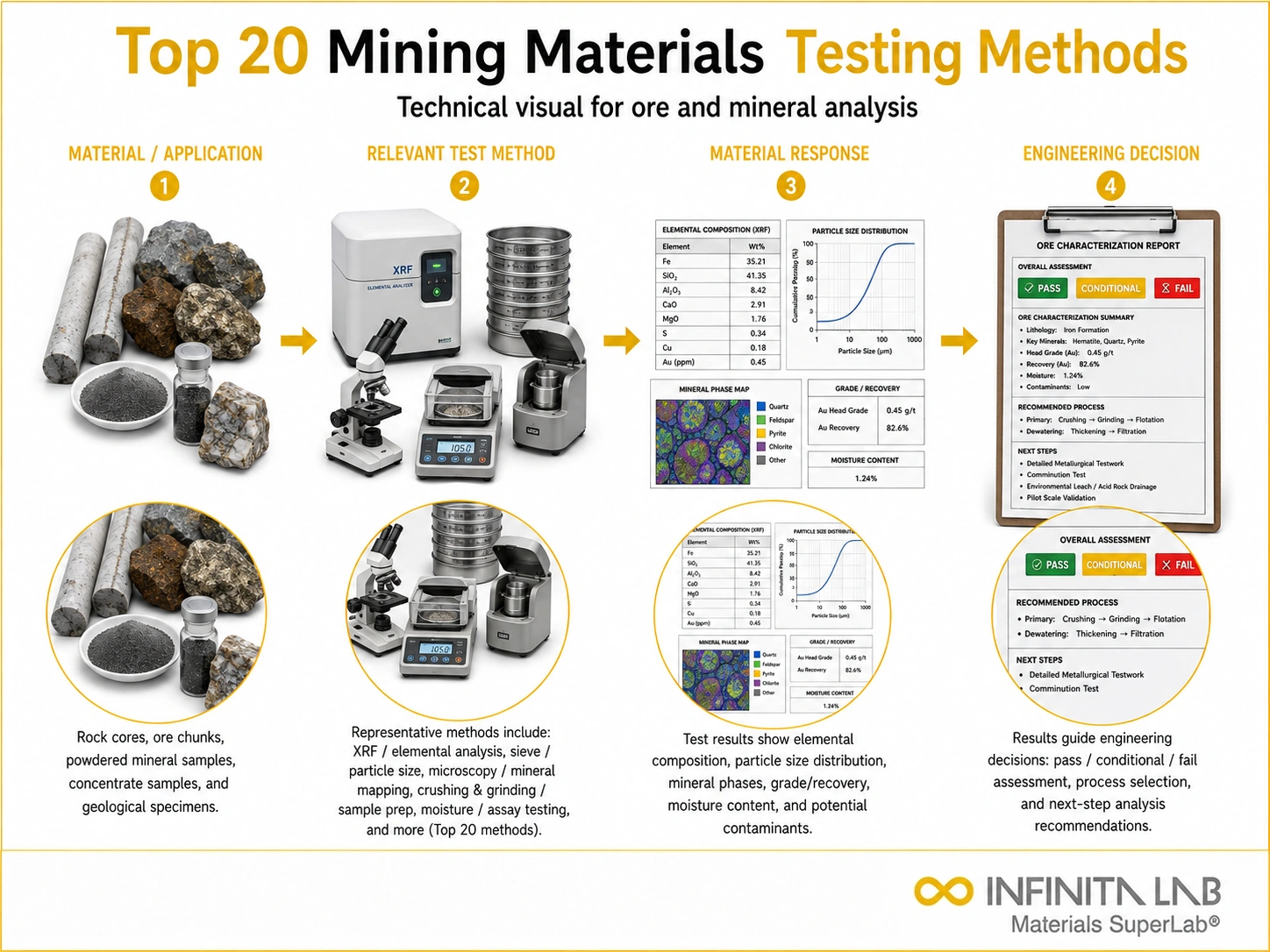

Representative Infinita Engineering Visual explaining the four-step workflow for Top 20 Mining Materials Testing Methods for Ore & Mineral Analysis.What Is Mining Materials Testing?
Mining materials testing evaluates ores, minerals, rock, and processed concentrates to determine composition, structural properties, and processing behaviour. This testing spans the full value chain – from exploration-stage core samples through geotechnical assessment of mine structures to metallurgical testing that determines how efficiently valuable minerals can be extracted.
Why Mining Materials Testing Matters
- Confirms ore grade and mineral composition for resource estimation
- Evaluates rock mechanics for safe mine design and slope stability
- Determines optimal processing routes for mineral extraction
- Assesses environmental compliance for waste rock and tailings
Top 20 Mining Materials Testing Methods
- X-Ray Fluorescence (XRF) Analysis – Determines elemental composition of ore and rock samples quickly and non-destructively.
- X-Ray Diffraction (XRD) – Identifies mineral phases and crystal structures within ore samples.
- Inductively Coupled Plasma (ICP-MS/OES) Analysis – Provides highly sensitive trace and major element quantification.
- Fire Assay – The classical gravimetric method for precise gold and platinum-group metal quantification.
- Uniaxial Compressive Strength (UCS) Testing – Measures rock strength under axial compression, fundamental to mine design.
- Point Load Testing – A rapid field-friendly method to estimate rock strength from irregular core or rock fragments.
- Triaxial Compression Testing – Evaluates rock strength under confining pressure representative of in-situ conditions.
- Rock Quality Designation (RQD) Assessment – Quantifies fracture frequency in drill core to assess rock mass quality.
- Bond Work Index Testing – Determines the energy required to grind ore to a target particle size, critical for comminution circuit design.
- Particle Size Distribution (Sieve/Laser Diffraction) Analysis – Characterises crushed and ground material for process optimisation.
- Specific Gravity / Density Testing – Determines ore density for resource tonnage calculations and process design.
- Flotation Testing – Bench-scale testing determines optimal reagents and conditions for mineral separation by froth flotation.
- Leach Testing (Cyanide, Acid, Bioleaching) – Evaluates recovery rates for hydrometallurgical extraction processes.
- Acid-Base Accounting (ABA) Testing – Assesses acid rock drainage potential of waste rock and tailings for environmental management.
- Moisture Content Testing – Determines water content in ore and bulk materials, relevant to handling, transport, and processing.
- Abrasion Index Testing – Measures material wear on crushing and grinding equipment.
- Slake Durability Testing – Evaluates rock resistance to weathering and breakdown when cycled through wetting and drying.
- Scanning Electron Microscopy with EDS (SEM-EDS) – Provides mineral liberation and textural analysis at the microscopic scale.
- Tailings Geotechnical Testing – Evaluates shear strength, consolidation, and permeability of tailings for dam and storage facility design.
- Heavy Metal / Environmental Contaminant Testing – Screens waste rock and tailings for regulated contaminants before disposal or reuse.
Mining Materials Test Method Comparison
Property Evaluated | Representative Method | Typical Standard |
|---|
Elemental composition | XRF, ICP-MS, fire assay | ASTM E1621, ISO 12744 |
Rock strength | UCS, point load, triaxial | ASTM D7012, ISRM suggested methods |
Comminution energy | Bond Work Index | ASTM standard grindability tests |
Metallurgical recovery | Flotation, leach testing | – |
Environmental risk | Acid-base accounting | ASTM D7348 |
Applications by Industry
Exploration & Resource Estimation – Elemental and mineralogical analysis of drill core to define ore body grade and geometry. Mine Planning & Geotechnical Engineering – Rock mechanics testing to design safe pit slopes, underground excavations, and support systems. Mineral Processing – Flotation, leach, and comminution testing to design efficient extraction circuits. Environmental Compliance – Acid-base accounting and contaminant testing for waste rock, tailings, and reclamation planning.
Industry Standards Referencing Mining Materials Testing
ASTM D7012 (rock compressive strength), ASTM D4543 (rock core preparation), ASTM D7348 (acid-base accounting), ISO 12744 (copper concentrate sampling), ISRM Suggested Methods for rock characterisation
Advantages and Limitations
Advantages: Reduces resource estimation and mine design risk; optimises processing recovery and reagent costs; supports environmental permitting and long-term liability management. Limitations: Ore body heterogeneity means sample results can vary significantly across a deposit; bench-scale metallurgical results don’t always scale linearly to full production; geotechnical properties can change with in-situ stress conditions not fully captured in lab testing.
Conclusion
From the first exploration drill hole to the design of a tailings storage facility, mining materials testing provides the geological, geotechnical, and metallurgical data that underpins safe, efficient, and environmentally responsible mine development and operation.
Frequently Asked Questions (FAQs)
Why is ore analysis important? Ore analysis determines valuable metal content, identifies impurities, supports resource estimation, and helps select efficient extraction and processing methods.
Which methods measure elemental composition? Common methods include X-ray fluorescence, ICP-OES, ICP-MS, atomic absorption spectroscopy, and fire assay.
How is mineral composition identified? X-ray diffraction, optical microscopy, SEM/EDS, and automated mineralogy are used to identify mineral phases and their distribution.
Why are moisture and loss-on-ignition tests performed? Moisture testing measures water content, while loss on ignition estimates volatile materials, organics, carbonates, and chemically bound water.
What tests evaluate ore-processing performance? Crushing, grinding, flotation, leaching, gravity-separation, and magnetic-separation tests assess how efficiently valuable minerals can be recovered.
