Chemical Analysis of Glass Sand: SiO₂ Content, Impurities & Testing Standards

Glass is one of humanity’s oldest manufactured materials — yet its production remains exquisitely sensitive to the chemical composition of its raw materials. Glass sand — high-purity silica sand used as the primary raw material in glass manufacturing — must meet tight chemical specifications to produce glass with the optical clarity, colour neutrality, chemical durability, and mechanical strength demanded by modern applications. In the glass & minerals industry, chemical analysis of glass sand is a non-negotiable quality assurance step at every stage from quarry characterisation to production batch approval.

What Is Glass Sand?

Glass sand is a high-purity silica (SiO₂) sand, typically with SiO₂ content exceeding 95% and often above 99% for optical and speciality glass applications. It is distinguished from ordinary construction sand by strict limits on iron oxide (Fe₂O₃), chromium, titanium, and other chromophoric (colour-producing) impurities that would impart undesirable colour or reduce optical transmission in finished glass products.

The glass & minerals industry uses glass sand in the production of:

• Container glass (bottles, jars)
• Flat glass (windows, automotive glazing)
• Fibreglass insulation and reinforcement
• Speciality optical glass and display glass
• Borosilicate laboratory glass

Each application category imposes different purity requirements, with optical glass demanding the highest purity levels achievable.

Critical Chemical Parameters in Glass Sand

Silicon Dioxide (SiO₂) Content

SiO₂ is the glass-forming oxide and must be maximised. Container glass sands typically specify SiO₂ ≥ 95%; flat glass and fibreglass sands require ≥98%; optical glass raw materials may demand >99.8% SiO₂. Insufficient SiO₂ increases the demand for more expensive secondary glass formers and disrupts batch calculations.

Iron Oxide (Fe₂O₃)

Iron is the most critical impurity in glass sand because even trace amounts impart a green or amber tint to glass. Fe₂O₃ limits depend on glass colour requirements:

• Green container glass: Fe₂O₃ up to 0.5%
• Clear container glass: Fe₂O₃ ≤ 0.06%
• Flat glass: Fe₂O₃ ≤ 0.015%
• Optical and solar glass: Fe₂O₃ ≤ 0.005%

Iron exists in two oxidation states — Fe²⁺ (ferrous, blue-green colour, stronger UV absorber) and Fe³⁺ (ferric, yellow-green colour). The Fe²⁺/Fe³⁺ ratio is controlled by batch redox chemistry and affects both colour and UV transmission.

Chromium (Cr₂O₃)

Chromium is an extremely potent colourant — even 1–2 ppm Cr₂O₃ produces visible green colouration. Chromium contamination in glass sand originates from chromite minerals associated with heavy mineral fractions. Glass sand specifications for clear glass typically require Cr₂O₃ < 2 ppm.

Titanium Dioxide (TiO₂)

TiO₂ imparts a yellow-brown tint and increases UV absorption. Specifications for clear and optical glass limit TiO₂ to < 30 ppm in most applications.

Alumina (Al₂O₃)

Alumina in glass sand originates from feldspar and clay mineral impurities. Unlike iron and chromium, Al₂O₃ is not a colourant but a secondary glass former that modifies viscosity, thermal expansion, and chemical durability. It is typically controlled within defined ranges rather than simply minimised.

Calcium Oxide, Magnesium Oxide, and Alkali Oxides

CaO, MgO, Na₂O, and K₂O from mineral impurities contribute to the overall glass batch chemistry. Accurate characterisation of these components in raw sand allows precise formulation of the remaining batch materials (limestone, dolomite, soda ash) to achieve the target glass composition.

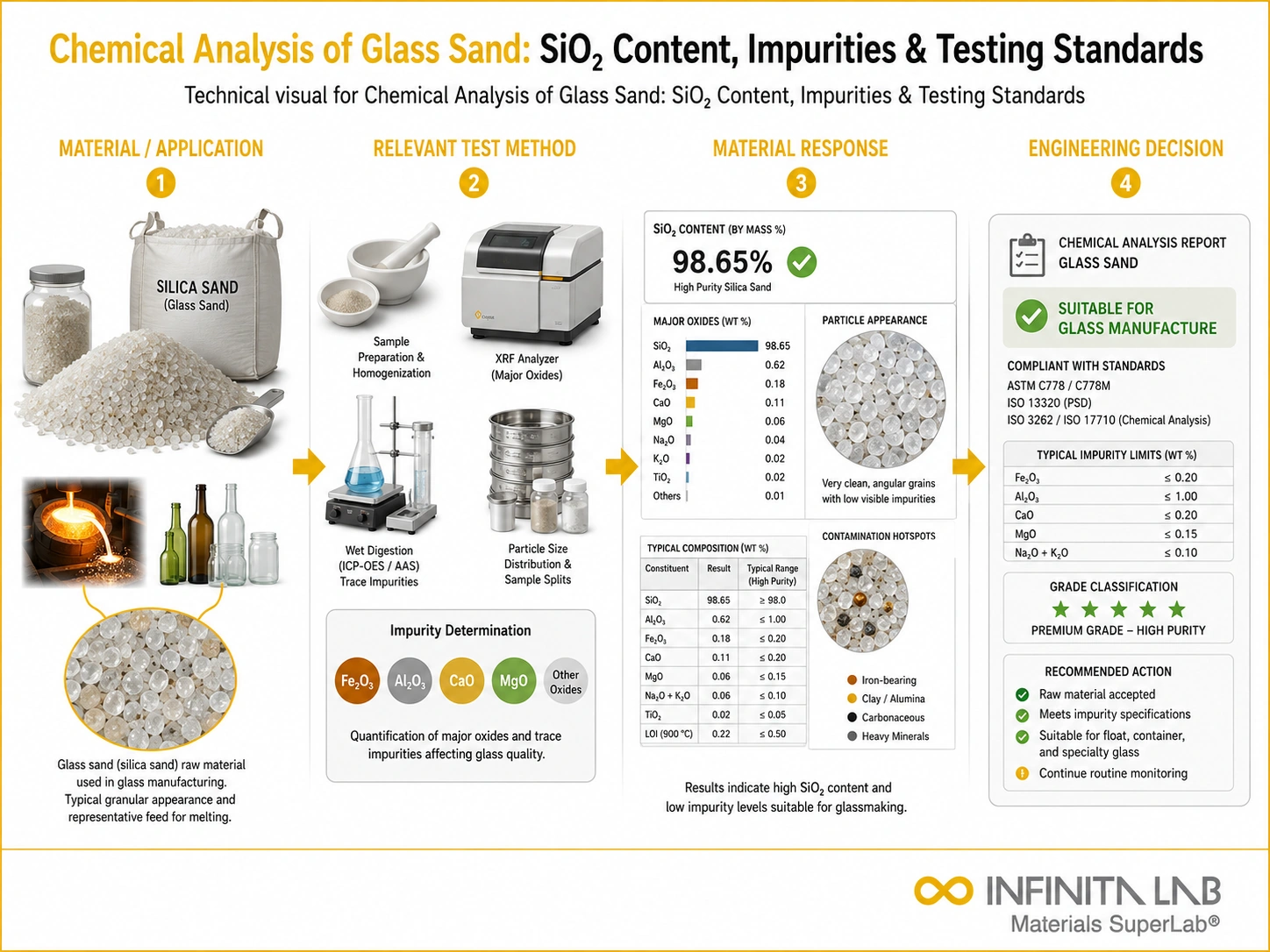

Analytical Methods for Glass Sand Characterisation

X-Ray Fluorescence Spectrometry (XRF)

XRF is the workhorse technique for major and minor oxide determination in glass sand. Pressed powder or fused bead specimens provide matrix-matched samples for wavelength-dispersive (WDXRF) or energy-dispersive (EDXRF) analysis. Fused beads — produced by fluxing the sand with lithium tetraborate — eliminate particle size and mineralogical matrix effects, providing the highest accuracy for SiO₂, Al₂O₃, Fe₂O₃, CaO, MgO, TiO₂, and other major components.

ASTM C146 — Standard Test Methods for Chemical Analysis of Glass Sand — provides the reference wet chemical methods against which XRF calibrations are validated.

ICP-OES and ICP-MS for Trace Elements

For ultra-low-level impurities — particularly Cr, Ni, Co, and rare earth elements at single-digit ppm levels — Inductively Coupled Plasma Optical Emission Spectrometry (ICP-OES) or ICP Mass Spectrometry (ICP-MS) following acid dissolution of the sand sample provide the required detection sensitivity.

Loss on Ignition (LOI)

LOI at 1000°C measures volatile components — moisture, carbonates, and organic matter — that generate gas bubbles (seeds and blisters) in the molten glass if not removed during melting. Control of LOI is particularly important for sands used in container glass and flat glass, where optical clarity requirements are strict.

Conclusion

Chemical analysis of glass sand is a critical step in ensuring the production of high-quality glass with the desired optical, mechanical, and chemical properties. Since even trace impurities such as iron, chromium, and titanium can significantly affect colour and transparency, precise control of composition is essential across all glass applications—from container glass to high-purity optical materials.

By utilising advanced analytical techniques such as XRF, ICP-OES, and LOI testing, manufacturers can accurately characterise raw materials, optimise batch formulations, and maintain strict quality standards. In the glass and minerals industry, reliable chemical analysis of glass sand is fundamental to achieving consistent product quality, process efficiency, and compliance with demanding performance specifications.
