What Is Heavy Metal Testing? Methods, Standards & Lab Services Explained

What Is Heavy Metal Testing?

Heavy metal testing is the analytical process of detecting, identifying, and quantifying heavy metals — dense metallic elements typically with atomic numbers greater than 20 — in materials, products, consumer goods, foods, water, environmental samples, and biological specimens. Many heavy metals are toxic to human health and ecosystems even at trace concentrations, making their detection and quantification essential for product safety compliance, environmental monitoring, quality assurance, and regulatory adherence.

Heavy metal testing spans a range of industries and applications — from consumer electronics compliance with RoHS regulations to food safety monitoring, environmental site assessments, and medical device biocompatibility evaluation.

Key Heavy Metals of Regulatory and Health Concern

Lead (Pb)

One of the most widely regulated heavy metals. Lead causes neurological damage, particularly in children, affecting cognitive development and learning capacity. Regulated in paint, toys, consumer products (CPSC, ASTM F963), food contact materials, drinking water (EPA action level 15 ppb), and electronic products (RoHS — max 0.1% by weight in homogeneous materials).

Mercury (Hg)

Mercury causes neurological damage, kidney toxicity, and developmental harm. Regulated in fluorescent lamps, batteries, electronic switches, medical devices, and seafood. The Minamata Convention on Mercury is an international treaty reducing global mercury use and emissions.

Cadmium (Cd)

A known carcinogen and nephrotoxin. Heavily restricted in batteries (EU Battery Directive), pigments, stabilizers, and electronic components (RoHS — max 0.01% by weight). Found as a contaminant in some phosphate fertilizers and in industrial emissions.

Arsenic (As)

A known human carcinogen — regulated in drinking water (EPA MCL 10 ppb), food (rice, apple juice), pressure-treated wood, and some electronics components.

Chromium (VI) (Cr(VI))

The hexavalent form of chromium is a confirmed carcinogen — regulated in leather articles (EN ISO 17075), surface coatings, pigments, and metallic components (RoHS, REACH). Distinguished analytically from harmless Cr(III).

Others: Antimony (Sb), Barium (Ba), Selenium (Se), Nickel (Ni), Cobalt (Co)

All subject to varying regulatory limits in different materials and applications — particularly in children’s products, food contact materials, cosmetics, and medical devices.

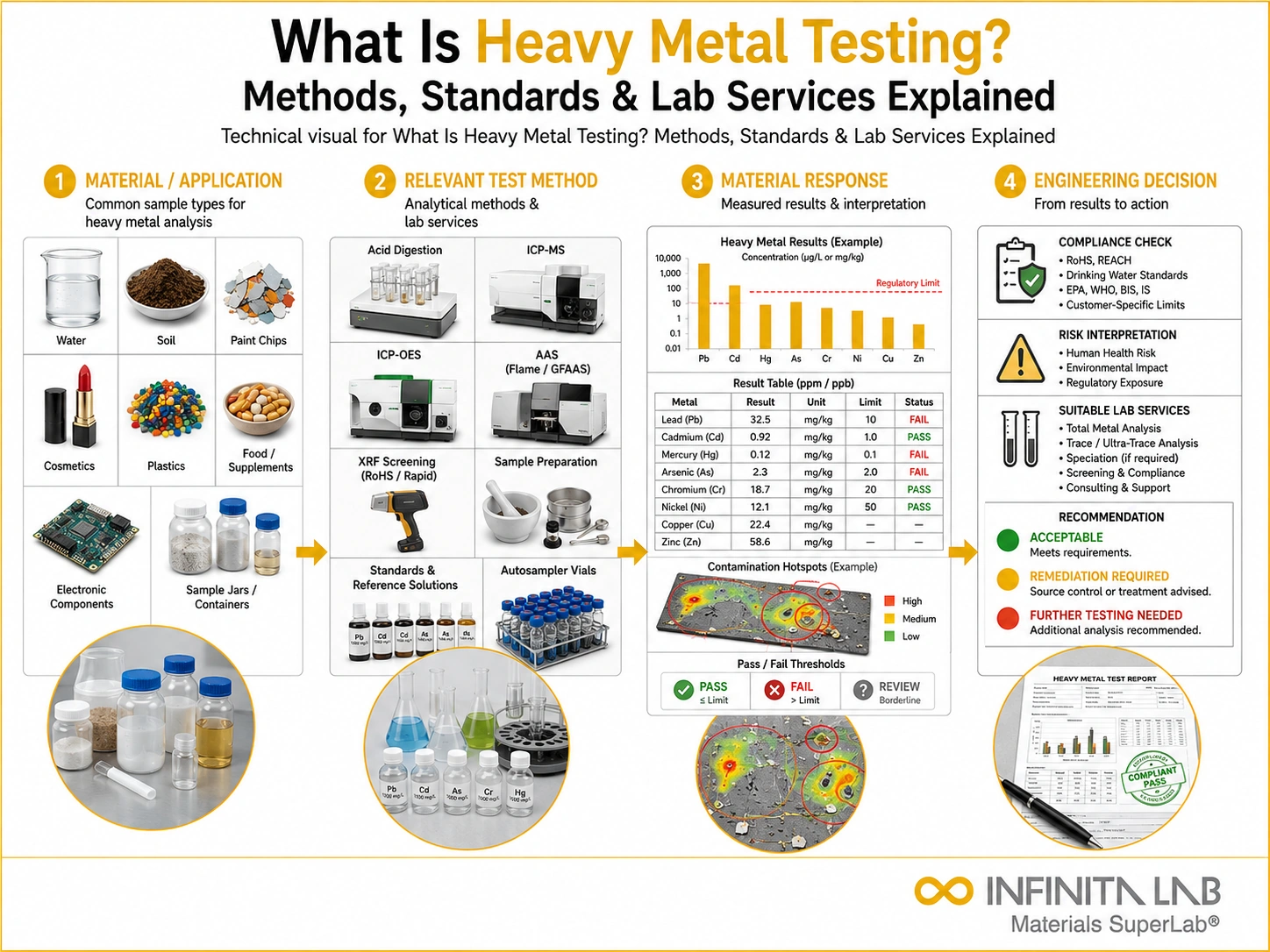

Heavy Metal Testing Methods

ICP-OES (Inductively Coupled Plasma Optical Emission Spectrometry)

ICP-OES is the workhorse technique for multi-element heavy metal analysis. A solution prepared by acid digestion of the sample is nebulized into an argon plasma, where elements emit characteristic light at specific wavelengths. Detection limits are typically in the parts-per-million (ppm) range — sufficient for most regulatory compliance testing. Simultaneous multi-element analysis provides fast, cost-effective screening for a full panel of heavy metals.

ICP-MS (Inductively Coupled Plasma Mass Spectrometry)

ICP-MS provides the highest sensitivity available for trace elemental analysis — achieving detection limits in the parts-per-trillion (ppt) range. Essential when very low detection limits are required — drinking water monitoring, semiconductor contamination analysis, biological specimen testing, and REACH-level restricted substance compliance.

AAS (Atomic Absorption Spectrometry)

A single-element technique using element-specific hollow cathode lamps. Flame AAS (FAAS) provides ppm-level detection; graphite furnace AAS (GFAAS) achieves ppb to sub-ppb detection limits. Simpler and lower-cost than ICP techniques, but sequential (one element at a time) — used for dedicated high-precision determination of specific elements.

X-Ray Fluorescence (XRF)

Handheld or benchtop XRF provides non-destructive, semi-quantitative screening for RoH-Sand REACH-restricted heavy metals directly on solid materials and components. Fast and portable — widely used for incoming material screening, supply chain compliance verification, and field testing. XRF cannot achieve the trace-level detection limits of ICP-MS for regulatory action levels in some applications.

Digestion Methods

Most heavy metal testing requires sample dissolution by acid digestion — using microwave-assisted digestion (EPA 3051A, 3052), hotplate digestion, or dry ashing followed by acid dissolution. Complete digestion ensures all heavy metals are extracted from the matrix into solution for ICP/AAS analysis.

Key Regulatory Frameworks

• RoHS (EU Directive 2011/65/EU): Restricts lead, mercury, cadmium, Cr(VI), PBB, and PBDE in electrical and electronic equipment (EEE)
• REACH (EU Regulation 1907/2006): Requires registration, evaluation, and authorization of hazardous substances — including SVHC (Substances of Very High Concern) listed heavy metals
• CPSC (Consumer Product Safety Commission) / ASTM F963: Limits on lead, antimony, arsenic, barium, cadmium, chromium, mercury, and selenium in children’s toys and products
• EPA National Primary Drinking Water Regulations: MCLs for arsenic, lead, mercury, cadmium, and others
• FDA: Limits on heavy metal impurities in food, dietary supplements, pharmaceuticals, and medical devices

Industry Applications

Electronics: RoHS compliance testing of PCBs, solder, coatings, plastics, and component materials for heavy metal restricted substances.

Consumer Products and Toys: ASTM F963 and CPSC heavy metal content and extractable heavy metal testing of paints, coatings, substrates, and materials in children’s products.

Environmental: Soil, groundwater, sediment, and air-emission heavy metal analysis for contaminated-site assessment, environmental permits, and regulatory reporting.

Medical Devices: Biocompatibility evaluation per ISO 10993 requires elemental impurity analysis, including heavy metals, for implantable and body-contact devices.

Food and Agriculture: Heavy metal monitoring in food, water, packaging materials, and agricultural inputs (fertilizers, pesticides) for food safety assurance

Conclusion

Heavy metal testing — spanning ICP-OES, ICP-MS, AAS, and XRF analytical techniques across electronics, consumer products, environmental, food, and medical device applications — provides the trace elemental detection and quantification data essential for compliance with RoHS, REACH, CPSC, EPA, and FDA regulatory frameworks. Selecting the right analytical technique and digestion method for the specific matrix, required detection limit, and regulatory standard is what determines whether heavy metal data accurately demonstrates compliance or identifies safety risks — making method selection and rigorous sample preparation as critical to defensible results as any instrument capability.
