Wire & Cable Testing: Key Methods, Standards & Quality Requirements
What Is Wire and Cable Testing?
Wire and cable testing encompasses the full range of mechanical, electrical, thermal, and environmental evaluations performed on conductors, insulation, jacketing materials, and assembled cables to verify their safety, performance, and compliance with applicable standards. From building wire to high-voltage power cables, automotive wiring harnesses to aerospace signal cables, rigorous testing is essential to ensure reliable electrical power and signal transmission throughout the product’s service life.
Why Wire and Cable Testing Is Essential
Electrical wires and cables are safety-critical components in every electrical system. Failures can result in fires, electric shock hazards, equipment damage, and loss of critical functions. As electrical systems operate at higher voltages, carry more current, and operate in increasingly demanding environments (automotive under-hood, aerospace, subsea), the requirements for cable performance and durability become ever more stringent. Testing provides the documented evidence required for product certification, regulatory compliance, and customer acceptance.

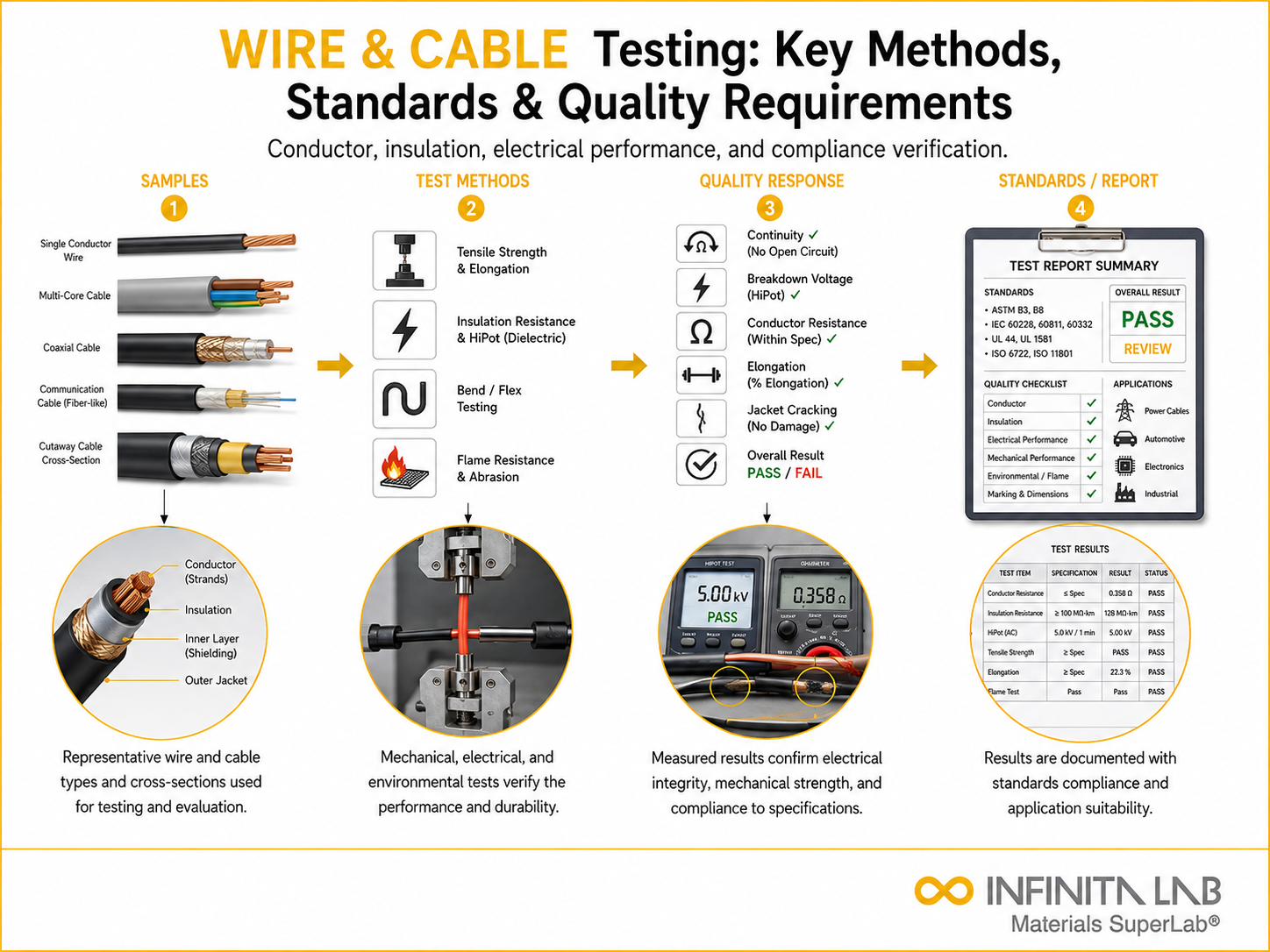

Key Wire and Cable Test Categories
Conductor Testing
Conductor testing verifies the electrical continuity, resistance, and dimensional conformance of metallic conductors (copper, aluminium, copper alloy):
- DC resistance measurement (ASTM B193, IEC 60228): Verifies conductor resistance meets the applicable conductor class specification
- Tensile testing of conductor strands (ASTM B3, ASTM B8): Verifies that the tensile strength and elongation of drawn wire meet temper requirements
- Break load of assembled conductor: For aerial conductors, verify the mechanical load-carrying capacity
Insulation and Jacket Testing
The insulation and outer jacket materials are tested for:
- Tensile strength and elongation (ASTM D412, IEC 60811-1-1): Original and after ageing
- Heat ageing resistance (ASTM D573, UL 1581): Property retention after accelerated oven ageing
- Low temperature performance (IEC 60811-504): Cold bend and cold impact resistance at −40°C
- Flame resistance (UL 94, UL 1685, IEEE 1202): Self-extinguishing behaviour and flame spread
- Abrasion resistance (UL 1581 VW-1): Resistance to insulation damage from wire handling
- Oil and fluid resistance (UL 1581, SAE J1019): Automotive fluid compatibility
Electrical Testing
- Dielectric strength (withstand voltage): AC or DC voltage applied between conductor and ground to verify insulation integrity
- Insulation resistance (Megohm testing): Verifies insulation bulk resistance per unit length
- Capacitance and inductance measurement: For signal and data cables
Environmental and Durability Testing
- Sunlight/UV resistance (ASTM D412 after UV exposure): For outdoor and direct burial cables
- Thermal cycling: For automotive and aerospace cables per LV 112, MIL-DTL-27500
- Fluid immersion and chemical resistance: Per UL 1581, SAE J1127, and automotive OEM specifications
- Crush and impact resistance: For armoured and industrial cables
Major Standards for Wire and Cable Testing
UL 44, UL 83, UL 1072 (building wire), UL 1277 (power tray cables), UL 2556 (wire and cable test methods), ASTM B series (conductor), IEC 60227/60245 (PVC and rubber insulated cables), IEEE 1202 (flame testing), and SAE J1127/J1128 (automotive) are the primary standards governing wire and cable testing.
Industrial Applications
In the construction industry, building wire must comply with NEC requirements and UL listing standards. In the automotive industry, wiring harnesses must meet LV 112, LV 214, and OEM-specific qualification requirements. In aerospace, MIL-DTL-27500 qualified cables must pass complete qualification testing programmes. In the energy sector, high-voltage XLPE cables undergo extensive qualification per IEC 62067.
Conclusion
Wire and cable testing is a critical process used to ensure the safety, reliability, and long-term performance of electrical conductors, insulation systems, and complete cable assemblies. By evaluating mechanical strength, electrical integrity, thermal stability, flame resistance, and environmental durability, these tests confirm that the product can perform safely under its intended operating conditions.
Whether used in buildings, automobiles, aerospace systems, or high-voltage power networks, comprehensive wire and cable testing is essential for regulatory compliance, product certification, and failure prevention.
Why Choose Infinita Lab for Wire and Cable Testing?
Infinita Lab provides comprehensive wire and cable testing — conductor, insulation, electrical, and environmental — through our nationwide network of 2,000+ accredited testing laboratories. Our wire and cable specialists manage complete qualification programmes from initial testing through to UL or IEC certification support.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you.
Frequently Asked Questions (FAQs)
What is wire and cable testing? Wire and cable testing includes mechanical, electrical, thermal, and environmental tests performed to verify safety, quality, and performance.
Why is wire and cable testing important? It helps prevent electrical failures, fire hazards, insulation breakdown, and signal loss during service life.
What tests are performed on conductors? Common tests include DC resistance, continuity, tensile strength, elongation, and break load testing.
How is insulation quality tested? Insulation is tested through dielectric strength, insulation resistance, heat ageing, flame resistance, and abrasion resistance tests.
Which industries require wire and cable testing? Construction, automotive, aerospace, telecommunications, industrial equipment, and power transmission industries all require it.
