Common Data Formats for Ultrasonic Testing: A-Scan, B-Scan & C-Scan
Compare Ultrasonic Testing (UT) data formats A, B, C, and D-Scans ExplainedUltrasonic testing (UT) is a versatile non-destructive evaluation method that uses high-frequency sound waves to detect internal defects, measure material thickness, and characterize material properties. The data generated during ultrasonic inspections are presented in standardized display formats, primarily A-Scan, B-Scan, and C-Scan, each providing a different perspective on the test specimen’s internal structure. Understanding these formats is essential for engineers, inspectors, and quality teams across the aerospace, automotive, construction, oil and gas, and metals industries. For companies seeking ultrasonic testing services at a US-based testing lab, Infinita Lab offers comprehensive UT capabilities through its accredited laboratory network.
Understanding Ultrasonic Data Presentation
Ultrasonic testing instruments transmit sound pulses into a material and analyze the reflected echoes to detect discontinuities and measure distances. The way this echo data is displayed determines what information the inspector can extract about defect location, size, and distribution within the test piece.

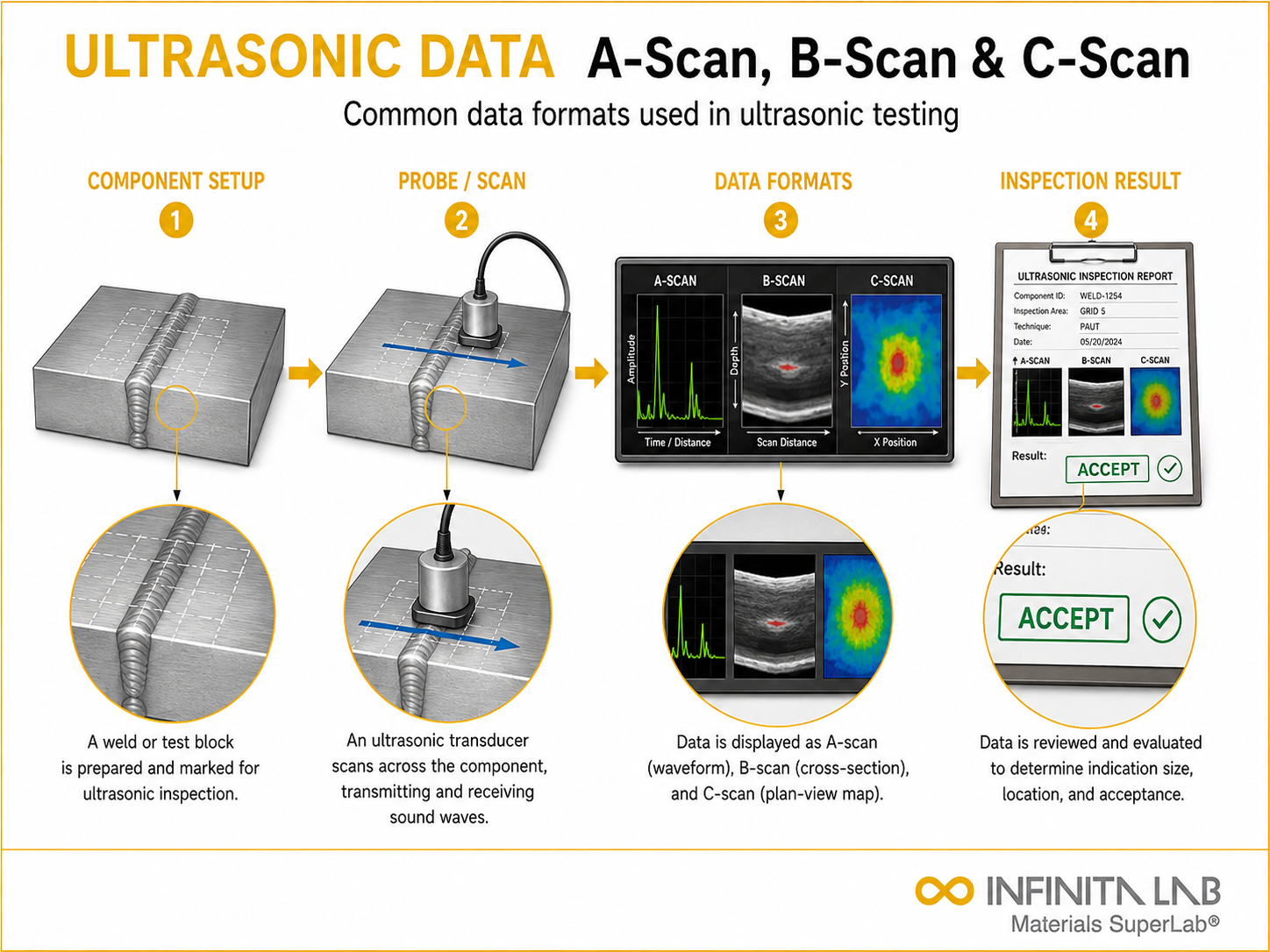

A-Scan (Amplitude Scan)
The A-Scan is the most fundamental UT display format, showing signal amplitude (vertical axis) versus time of flight (horizontal axis) for a single probe position. Each echo appears as a peak on the display, with peak height indicating reflector size and horizontal position indicating depth. A-Scans are used for manual flaw detection, thickness measurement, and initial defect characterization per ASTM E164 and ASME Section V.
B-Scan (Cross-Sectional Scan)
The B-Scan presents a cross-sectional view of the test piece along a single scan line. As the transducer moves across the surface, successive A-Scan data points are compiled into a two-dimensional image showing depth (vertical axis) versus probe position (horizontal axis). B-Scans reveal defect depth, vertical extent, and distribution along the scan path, which are essential for weld inspection and corrosion mapping in the construction and pipeline industries.
C-Scan (Plan View Scan)
The C-Scan produces a plan view (top-down) image of the test piece by scanning the transducer in a raster pattern across the surface. Each point records the amplitude or time-of-flight at a specific depth gate, creating a map that reveals the lateral extent and distribution of internal features. C-Scans are widely used to inspect composite materials in aerospace, evaluate bond integrity in adhesive joints, and screen semiconductor wafer defects.
Advanced UT Data Formats
D-Scan and S-Scan
D-Scans display end-view cross-sections perpendicular to the scan direction. S-Scans (sector scans) are generated by phased array UT systems, which sweep the beam through a range of angles to produce angular cross-sectional images, providing comprehensive volumetric inspection data for complex geometries.
Time-of-Flight Diffraction (TOFD)
TOFD uses diffracted signals from defect tips to provide highly accurate defect sizing. The data is displayed as a B-Scan-like image showing diffraction patterns, enabling precise through-wall sizing of cracks and lack-of-fusion defects in welds per ASTM E2373.
Industry Applications
UT data formats serve critical inspection needs: A-Scans for manual weld and forging inspection in metals manufacturing, B-Scans for pipeline corrosion mapping in oil and gas, C-Scans for aerospace composite laminate inspection, phased array S-Scans for complex weld geometries in the construction and power generation sectors, and TOFD for accurate crack sizing in safety-critical pressure equipment.
Partnering with Infinita Lab for Optimal Results
Infinita Lab addresses the most frustrating pain points in the Ultrasonic Testing process: complexity, coordination, and confidentiality. Our platform is built for secure, simplified support, allowing engineering and R&D teams to focus on what matters most: innovation. From kickoff to final report, we orchestrate every detail—fast, seamlessly, and behind the scenes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the difference between A-Scan, B-Scan, and C-Scan? A-Scan shows amplitude versus depth at a single point. B-Scan shows a cross-sectional view along a scan line. C-Scan shows a plan-view map of the test area. Together, they provide complete three-dimensional information about internal features.
Which UT data format is most commonly used? The A-Scan is the most widely used format for manual ultrasonic testing. Automated inspections increasingly use C-Scans for comprehensive area coverage and phased array S-Scans for complex geometries.
What is phased array ultrasonic testing? Phased array UT uses multi-element transducers with electronically controlled beam steering and focusing. This enables sector scans (S-Scans), electronic scanning, and dynamic focusing, providing faster, more comprehensive inspections than conventional single-element UT.
What ASTM standards apply to ultrasonic testing data? Key standards include ASTM E164 for contact ultrasonic testing, ASTM E2375 for phased array examination, ASTM E2373 for TOFD, and ASME Section V Article 4 for UT examination methods. AWS D1.1 covers UT of structural welds.
Can ultrasonic testing detect all types of defects? UT excels at detecting planar defects (cracks, lack of fusion, delaminations) oriented perpendicular to the sound beam. Small, rounded defects (porosity) and defects parallel to the beam are more challenging to detect. Combining multiple scan angles and formats maximizes detection capability.
