Cold Chain Package Testing: Thermal Validation Explained

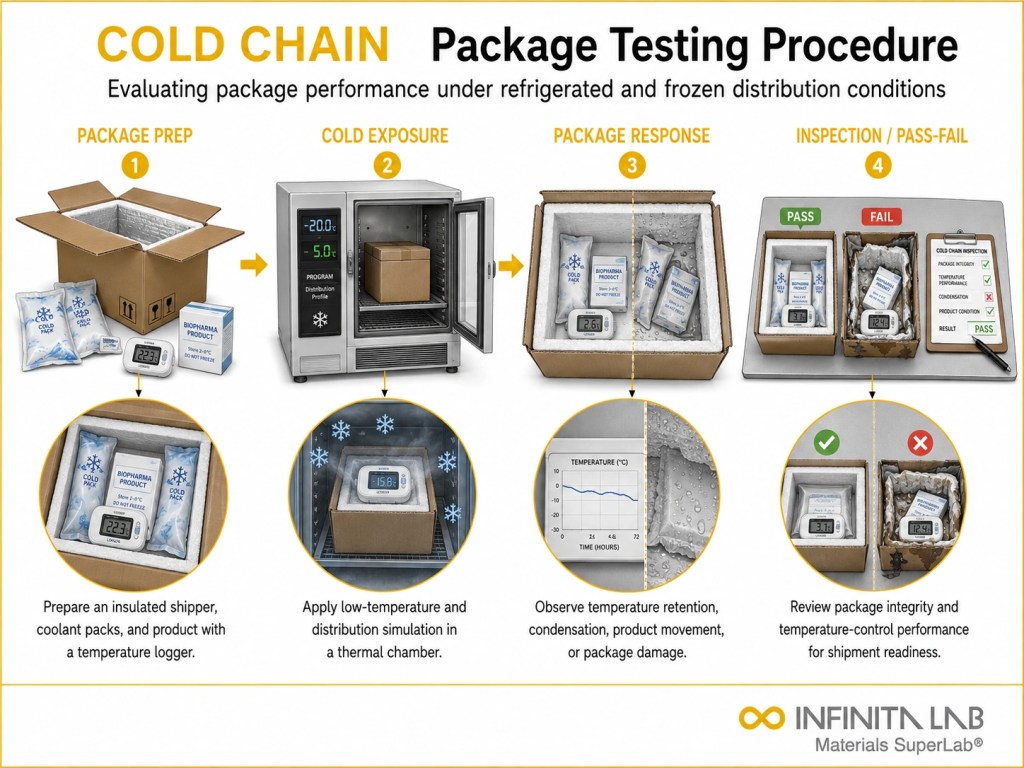

Representative Infinita Engineering Visual explaining the four-step workflow for Cold Chain Package Testing.What Is Cold Chain Package Testing?
Cold chain package testing is used to assess products that need to maintain certain thermal properties. This includes food, medications, chemicals, and film. The purpose of the cold chain is to preserve products and extend shelf life. Temperature validation testing involves placing thermocouples inside and outside the package and exposing it to extreme temperatures. Thermal mapping is done to determine if certain pallet positions are more vulnerable to temperature changes. The FDA mandates that any adverse occurrences related to products must be recorded.
Frozen food shipment tests require the package to keep the temperature below a certain threshold. Testing pharmaceutical packages is more challenging. These packages must both cool and insulate the product. Vaccines must be kept in a narrow temperature range. Vaccine storage units must be NSF/ANSI 456 certified. Refrigerators, freezers, and combination units are all tested under this certification.
Cold chain package testing evaluates the thermal performance of temperature-controlled shipping packages — insulated shippers, refrigerant configurations, and gel packs — against defined distribution temperature profiles. ISTA Procedure 7D is the primary standard used, particularly for pharmaceuticals, biologics, and temperature-sensitive medical devices where excursions outside the required range can compromise safety, efficacy, or shelf life.
Test Procedure
- Precondition all package components (gel packs, phase-change material panels, dry ice, and the product itself) at their required storage temperature for a minimum of 24 hours
- Assemble the package exactly as it would be packed for actual shipment, following documented pack-out instructions
- Install thermocouples or other temperature sensors inside or around the product to monitor internal package temperature
- Seal the package and place it in an environmental chamber programmed to run the selected ISTA 7D temperature profile
- Run the profile for the specified duration — 24-hour, 48-hour, or 72-hour cycles, each with distinct winter (cold shipping/receiving) and summer (hot shipping/receiving) sub-profiles
- Record and plot internal temperature data throughout the test to determine whether the package maintained the required internal temperature range
Temperature Profile Ranges
Most ISTA 7D cycles range from approximately -10C to 18C on the cold end and 22C to 35C on the hot end during steady-state profiles; ramp profile testing (simulating rapid ambient swings) can extend to -20C to 45C depending on the profile selected.
Also Read – Common Uses of Temperature Humidity Bias (THB) Testing in Electronics
Regulatory Context
ISO 11607-1 lists ISTA 7D as an approved test method for validating materials, packaging, and sterile barrier systems. Cold chain validation documentation from an ISO 17025 accredited lab is commonly used to support distribution packaging sections of IND, NDA, and BLA regulatory submissions.
Industry Specifications Referencing Cold Chain Package Testing
- ISTA 7D: primary development/validation standard for temperature-controlled distribution packaging
- ISTA 7E: newer standard using more extensive real-world thermal lane data, sometimes used in place of or alongside 7D
Conclusion
ISTA 7D testing is most valuable early in packaging development — comparing designs, assessing risk, and iterating on configuration — before committing to formal validation runs that will support a regulatory submission.
What is cold chain package testing? Cold chain package testing evaluates whether insulated packaging can maintain a product within its required temperature range during storage and transportation. It is commonly used for pharmaceuticals, vaccines, biologics, food, and diagnostic materials.
What is thermal validation? Thermal validation provides documented evidence that a packaging system performs consistently under defined conditions. It typically includes laboratory qualification, temperature monitoring, test reports, and predefined acceptance criteria.
How is a cold chain package tested? The complete package is loaded with the product or representative payload, coolant packs, and temperature sensors. It is then exposed to controlled temperature profiles that simulate expected shipping conditions.
What temperature ranges are commonly tested? Common ranges include refrigerated, frozen, controlled room temperature, and deep-frozen conditions. The exact limits depend on the product’s labelled storage requirements and stability data.
Why are summer and winter profiles used? Seasonal profiles expose packages to challenging hot and cold ambient conditions. Testing both profiles helps confirm that the package protects the product throughout different climates and shipping seasons.
