Top 20 Dental Ceramics Testing Methods for Restorative Materials

What Is Dental Ceramics Testing?

Dental ceramics testing evaluates the materials used in crowns, bridges, veneers, and implant components – including feldspathic porcelain, lithium disilicate, and zirconia – for mechanical strength, biocompatibility, and long-term durability inside the oral environment. Because dental restorations must withstand years of chewing loads, temperature swings, and exposure to saliva and food acids while remaining biologically safe, testing draws on both dental-specific and general biomaterials standards.

Why Dental Ceramics Testing Matters

• Confirms restorations can withstand years of masticatory (chewing) forces without fracture
• Verifies biocompatibility for long-term intraoral contact
• Ensures esthetic properties (shade, translucency) remain stable over time
• Supports regulatory clearance for dental material products

Also Read – Inclined Impact Testing: Method, Standards & Packaging Applications

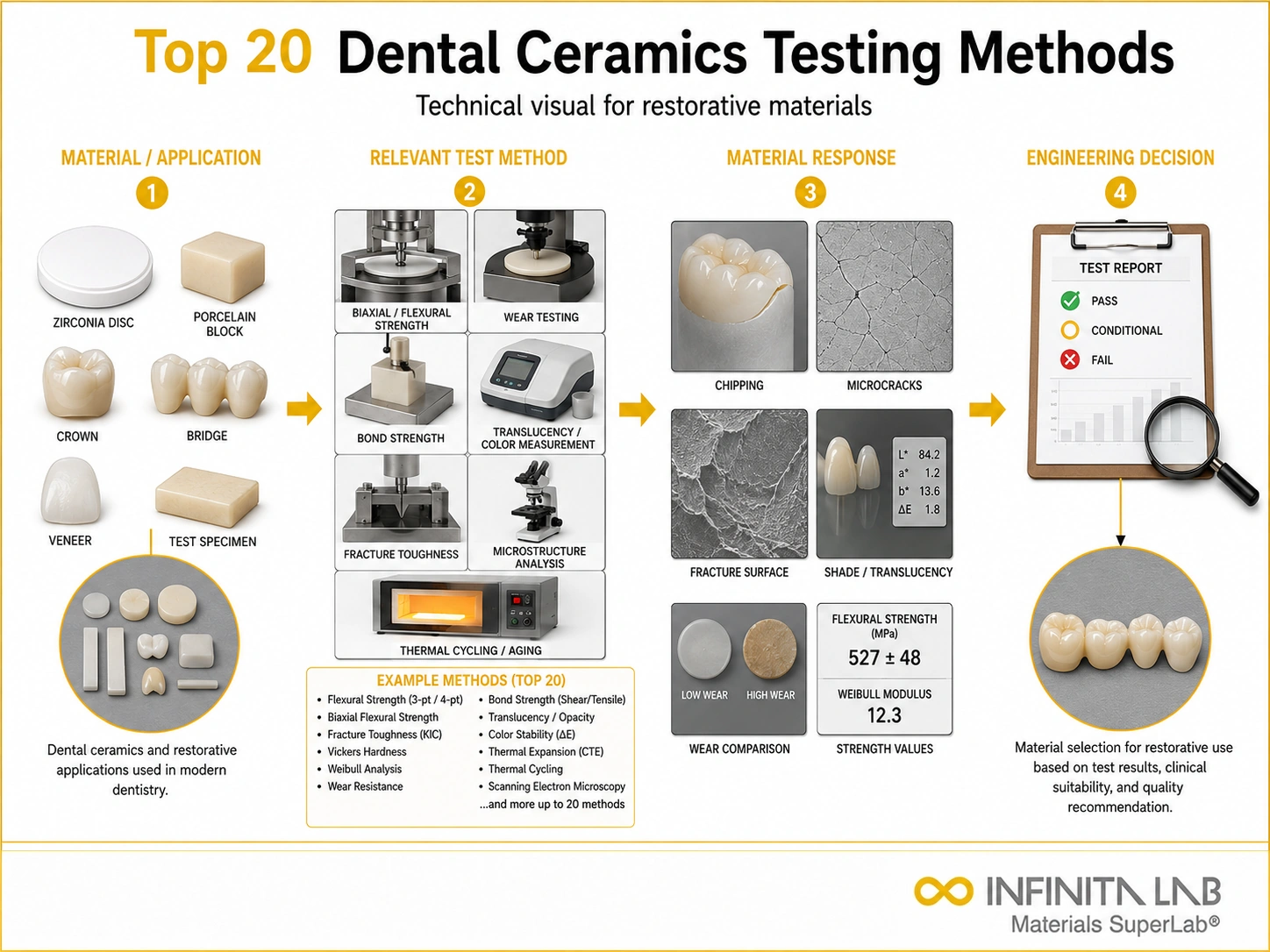

Top 20 Dental Ceramics Testing Methods

1. Flexural Strength Testing (ISO 6872) – Three- or four-point bend testing establishes the primary strength classification for dental ceramic materials.
2. Fracture Toughness Testing – Evaluates resistance to crack propagation, particularly relevant for zirconia and lithium disilicate restorations.
3. Hardness Testing (Vickers) – Assesses wear resistance and machinability of ceramic blocks used in CAD/CAM milling.
4. Fatigue / Cyclic Loading Testing – Simulates years of chewing cycles to evaluate long-term fracture resistance.
5. Wear Resistance Testing (Chewing Simulator) – Evaluates both ceramic wear and wear caused to opposing natural teeth.
6. Biocompatibility Testing (ISO 10993 / ISO 7405) – Assesses cytotoxicity and irritation potential for materials in direct oral contact.
7. Thermal Cycling Testing (ISO 6872) – Simulates repeated exposure to hot and cold foods/beverages to evaluate thermal stress resistance.
8. Solubility and Chemical Durability Testing (ISO 6872) – Evaluates resistance to dissolution in acidic oral environments over time.
9. Translucency and Shade Stability Testing – Measures optical properties to ensure esthetic match and long-term color stability.
10. Marginal Fit / Dimensional Accuracy Testing – Verifies CAD/CAM milled or pressed restorations meet precise fit tolerances.
11. Bond Strength Testing (Shear/Tensile) – Evaluates the adhesive bond between ceramic restorations and underlying tooth structure or cement.
12. Phase Transformation Analysis (XRD) – For zirconia, monitors low-temperature degradation from tetragonal to monoclinic phase transformation.
13. Grain Size Analysis (SEM) – Characterises microstructure, which strongly influences strength and translucency in zirconia and glass-ceramics.
14. Radiopacity Testing (ISO 6872) – Confirms restorations are sufficiently visible on dental radiographs for clinical monitoring.
15. Surface Roughness Testing – Evaluates polish quality, which affects both esthetics and plaque accumulation potential.
16. Weibull Statistical Strength Analysis – Characterises strength variability due to microstructural flaws, informing clinical reliability predictions.
17. Chipping and Fracture Resistance Testing – Evaluates veneering porcelain adhesion and resistance to chipping on layered zirconia restorations.
18. Ageing / Hydrothermal Degradation Testing – Simulates years of intraoral moisture exposure to evaluate long-term strength retention, especially for zirconia.
19. Elastic Modulus Testing – Measures stiffness, relevant to stress distribution under occlusal (bite) forces.
20. Cytotoxicity and Sensitisation Testing (ISO 7405) – Dental-specific biocompatibility screening for materials in prolonged mucosal and dental pulp contact.

Dental Ceramics Test Method Comparison

Applications by Industry

Crown & Bridge Restorations – Flexural strength and fatigue testing to confirm long-term clinical durability under chewing loads. Dental Implants (Zirconia Abutments) – Fatigue and hydrothermal ageing testing given permanent, load-bearing intraoral placement. Veneers – Translucency, shade stability, and chipping resistance testing given esthetic priority. CAD/CAM Milling Blocks – Hardness and dimensional accuracy testing to ensure consistent milling performance across batches.

Industry Standards Referencing Dental Ceramics Testing

ISO 6872 (dental ceramics), ISO 13356 (zirconia implant ceramics), ISO 14801 (fatigue testing of endosseous implants), ISO 10993, ISO 7405 (dental biocompatibility)

Advantages and Limitations

Advantages: Predicts clinical longevity before a restoration is placed in a patient’s mouth; supports regulatory clearance for new dental ceramic materials; enables objective comparison across ceramic systems and manufacturers. Limitations: Lab-simulated chewing and ageing cannot perfectly replicate the variability of real patient occlusion and diet; zirconia’s low-temperature degradation behaviour can be difficult to predict long-term from short accelerated ageing tests; strength testing results are sensitive to specimen surface finish and preparation technique.

Also Read – Key Trends Shaping the Semiconductor Industry: Technology & Testing

Conclusion

Dental ceramics occupy a demanding niche – biologically safe, esthetically convincing, and mechanically durable enough to survive years of biting force in a wet, temperature-fluctuating environment. A thorough testing program spanning strength, fatigue, biocompatibility, and long-term ageing is what gives clinicians and manufacturers confidence in a material’s real-world clinical performance.
