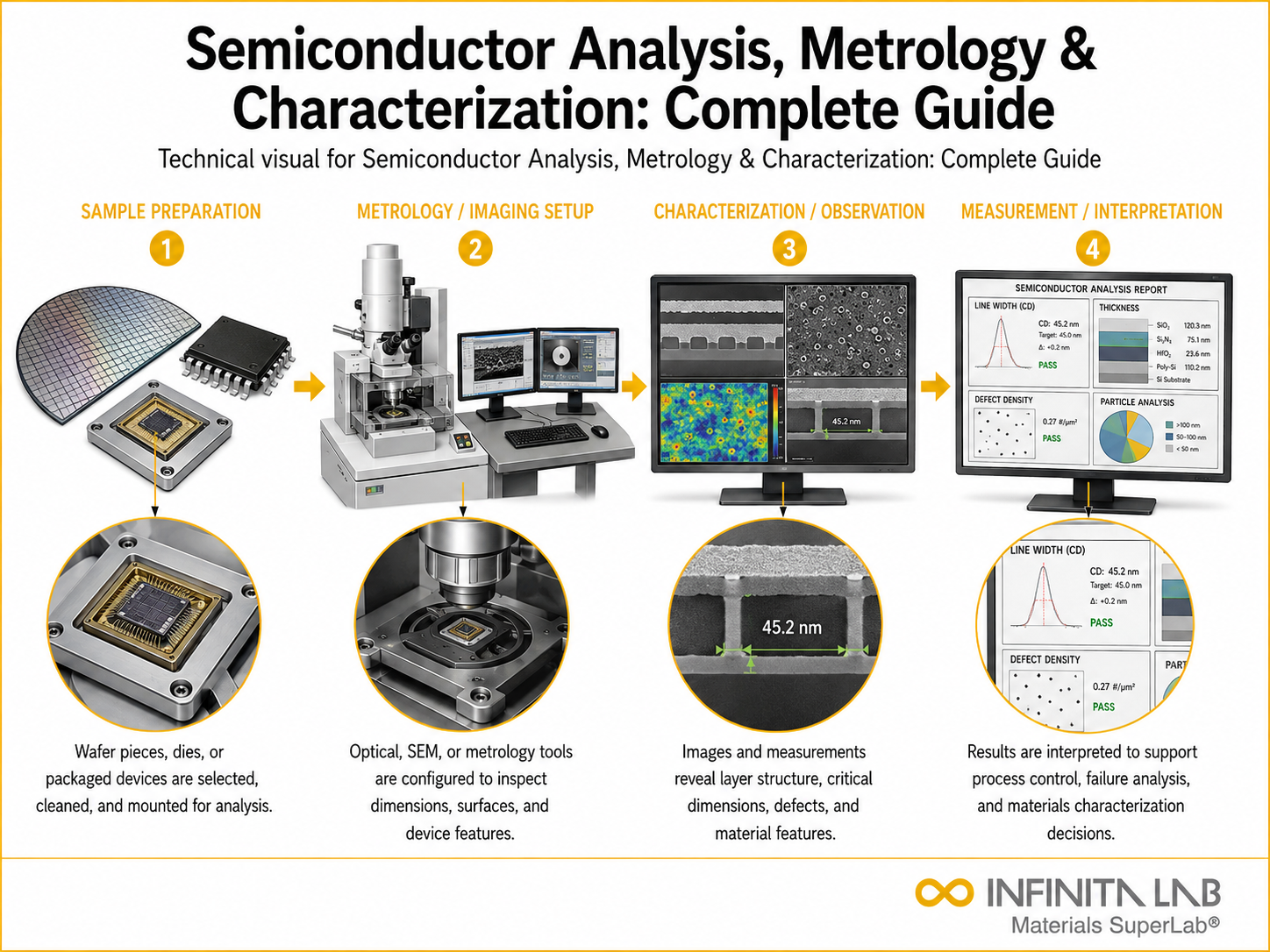

Key Trends Shaping the Semiconductor Industry: Technology & Testing
The semiconductor industry is one of the most dynamic and strategically important sectors in the global economy. As the foundational technology layer beneath AI systems, electric vehicles, advanced communications, and industrial automation, semiconductors are simultaneously driving and being driven by some of the most profound technological transformations of our time. Understanding the key trends shaping the industry is essential for engineers, materials scientists, quality managers, and manufacturing executives who need to position their organizations for what comes next.
Trend 1: Advanced Node Miniaturization and the Physics Limit Challenge
Leading-edge semiconductor nodes are now at 3 nm and 2 nm, with 1 nm processes in development. At these dimensions, traditional planar transistor architectures are giving way to FinFET and Gate-All-Around (GAA) transistor designs that provide better electrostatic control over the channel. The physics of miniaturization is approaching fundamental limits — quantum tunneling effects, gate oxide leakage, and electromigration in nanoscale interconnects become increasingly significant.
For materials testing and failure analysis, this trend means that characterization techniques must resolve features at the atomic scale. TEM with EELS, atom probe tomography, and advanced XPS are increasingly required to support process development and yield analysis at leading-edge nodes.
Trend 2: Chiplet Architecture and Advanced Packaging
The limits of monolithic die scaling have accelerated the adoption of chiplet-based architectures, in which multiple smaller dies are integrated into a single package using advanced packaging technologies — 2.5D (interposer-based), 3D stacking, and fan-out wafer-level packaging (FOWLP). These approaches allow heterogeneous integration of compute, memory, and I/O dies from different process nodes into a single, high-bandwidth package.
Advanced packaging introduces new failure mechanisms: micro-bump solder joint fatigue, through-silicon via (TSV) cracking, interposer delamination, and thermal stress at die-to-die interfaces. Material testing and failure analysis services for advanced packages require SAM, FIB-SEM cross-sectioning, and thermal cycling reliability testing to qualify these complex interconnection systems.
Trend 3: Wide Bandgap Semiconductors for Power Electronics
Silicon carbide (SiC) and gallium nitride (GaN) power semiconductors are displacing silicon in high-voltage, high-frequency power-conversion applications — electric-vehicle inverters, fast chargers, solar inverters, and industrial motor drives. These materials offer superior switching speed, lower on-resistance, and higher operating temperatures compared to silicon.
Material testing requirements for SiC and GaN include defect density measurement by X-ray diffraction (XRD), crystal quality assessment by TEM, surface characterization by AFM and SEM, and reliability testing under high-temperature, high-voltage stress conditions. Infinita Lab’s semiconductor testing capabilities support SiC and GaN device qualification programs.
Trend 4: AI-Driven Semiconductor Design and Testing
Artificial intelligence is transforming both semiconductor design (through AI-assisted electronic design automation) and manufacturing quality control (through AI-powered automated defect review and classification). Machine learning models trained on SEM inspection images now automatically classify wafer defects, reducing review time and improving defect sampling efficiency. AI is also being applied to failure analysis — accelerating the correlation of electrical failure signatures with physical defect types.
Trend 5: Supply Chain Resilience and Domestic Manufacturing Investment
Semiconductor supply chain vulnerabilities exposed during recent global disruptions have triggered massive government investment in domestic semiconductor manufacturing in the US (CHIPS Act), Europe (European Chips Act), Japan, and India. New fab construction and expansion programs are driving demand for materials qualification, equipment certification, and process development testing services.
For material testing providers, this trend translates into increased demand for incoming material qualification, process chemical analysis, environmental compliance testing, and accelerated reliability testing as new fabs are commissioned and ramped.
Trend 6: Reliability Standards Evolution for Automotive and AI Applications
Automotive-grade semiconductor reliability requirements (AEC-Q100, AEC-Q101) and emerging AI hardware reliability standards are driving higher qualification bar requirements. Extended thermal cycling, humidity-bias testing, high-temperature storage, and electrostatic discharge (ESD) testing programs are being pushed to longer durations and higher stress levels to qualify devices for 10–15 year automotive service lives and mission-critical AI inference applications.
Conclusion
The semiconductor industry is rapidly evolving through advanced node miniaturization, chiplet architectures, wide bandgap materials, AI-driven design, and increasing reliability and supply chain demands. These trends are driving the need for more sophisticated material characterization, failure analysis, and reliability testing techniques at the atomic and system levels. As devices become more complex and performance-critical, advanced testing and analysis capabilities will be essential to ensure yield, reliability, and innovation across next-generation semiconductor technologies.
Infinita Lab’s Semiconductor Testing Services
Infinita Lab supports the semiconductor industry across all of these trends — providing advanced failure analysis, reliability testing, material characterization, and process chemistry analysis through its nationwide network of 2,000+ accredited partner laboratories. From leading-edge node process development to wide bandgap device qualification and advanced package reliability testing, Infinita Lab is a trusted testing partner for semiconductor manufacturers, EMS providers, and OEMs.
