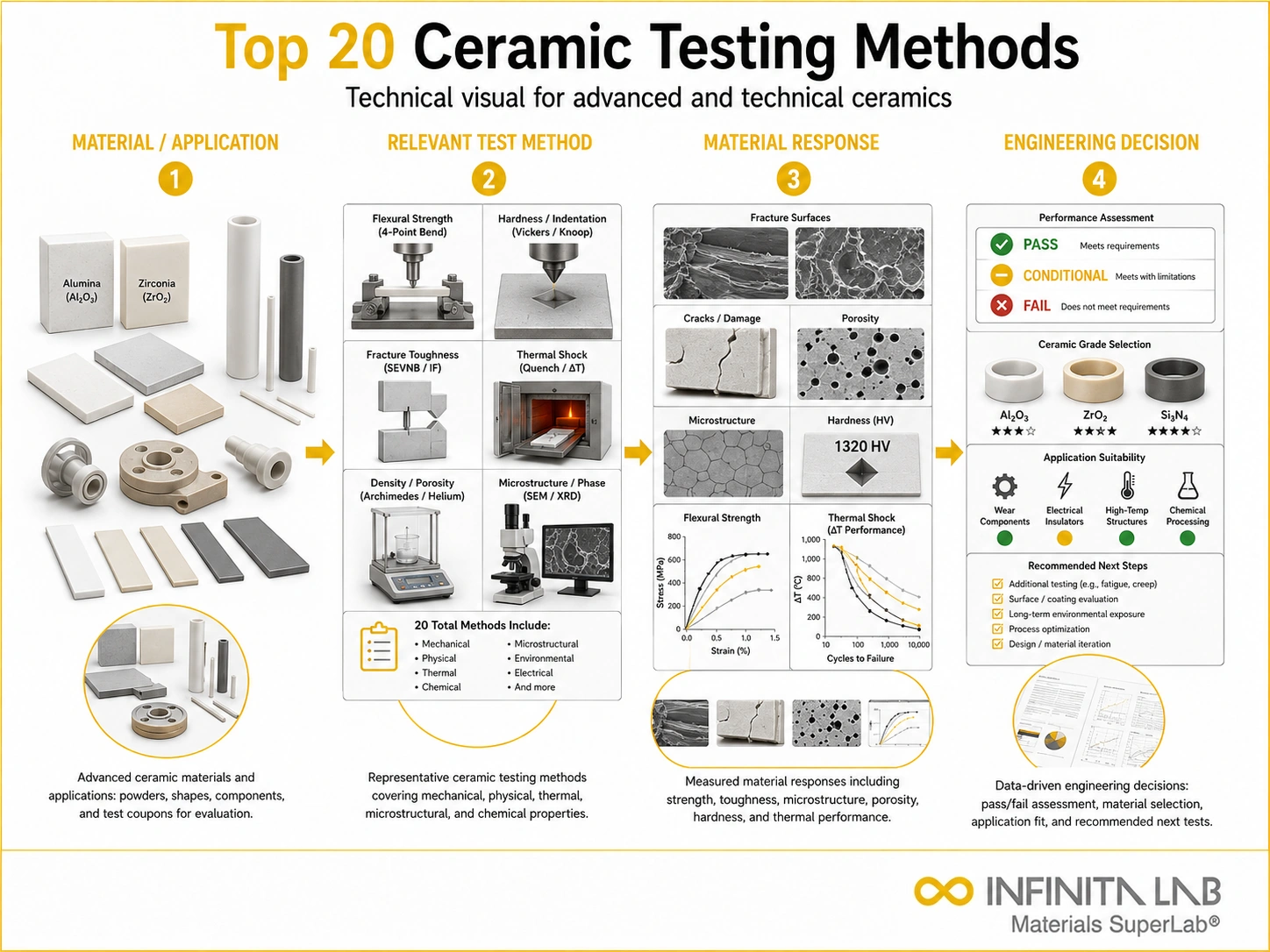

Top 20 Ceramic Testing Methods for Advanced & Technical Ceramics

What Is Ceramic Testing?

Ceramic testing evaluates the mechanical, thermal, and microstructural properties of technical and structural ceramics – alumina, zirconia, silicon carbide, and similar materials – used where hardness, heat resistance, or wear resistance exceed what metals or polymers can provide. Because ceramics are typically brittle and highly sensitive to microstructural flaws, testing focuses heavily on fracture behaviour and defect detection alongside standard mechanical properties.

Why Ceramic Testing Matters

• Confirms mechanical strength and fracture toughness for structural applications
• Detects microstructural flaws that can trigger brittle failure
• Verifies thermal shock and high-temperature performance
• Ensures dimensional and compositional consistency for precision components

Top 20 Ceramic Testing Methods

1. Flexural Strength Testing (ASTM C1161, ISO 6872) – Three- or four-point bend testing determines the load a ceramic can withstand before fracture.
2. Fracture Toughness Testing (ASTM C1421) – Quantifies a ceramic’s resistance to crack propagation, given ceramics’ brittle failure mode.
3. Compressive Strength Testing (ASTM C773) – Measures resistance to crushing loads, typically far higher than tensile strength in ceramics.
4. Hardness Testing (Vickers/Knoop, ASTM C1327) – Indentation testing measures surface hardness and can also estimate fracture toughness.
5. Weibull Statistical Analysis – Statistically characterises strength variability arising from the random distribution of flaws in ceramic materials.
6. Thermal Shock Resistance Testing (ASTM C1525) – Evaluates cracking behaviour when a ceramic is rapidly heated or cooled.
7. Thermal Expansion (Dilatometry) Testing – Measures the coefficient of thermal expansion, critical for joining ceramics to other materials.
8. Thermal Conductivity Testing (ASTM E1461) – Measures heat transfer rate, relevant for thermal management and refractory applications.
9. Density and Porosity Testing (Archimedes Method, ASTM C373) – Determines bulk density and open/closed porosity affecting strength and permeability.
10. X-Ray Diffraction (XRD) Phase Analysis – Identifies crystalline phases and confirms proper sintering and composition.
11. Scanning Electron Microscopy (SEM) – Reveals grain structure, porosity, and fracture surface features at high magnification.
12. Grain Size Analysis (ASTM E112) – Quantifies average grain size, which strongly influences strength and toughness.
13. Ultrasonic Testing (Non-Destructive) – Detects internal voids, cracks, and delaminations without damaging the part.
14. Dye Penetrant Inspection – Detects surface-breaking cracks in finished ceramic components.
15. Dielectric Strength Testing – Measures voltage breakdown resistance for ceramics used as electrical insulators.
16. Creep Testing at Elevated Temperature – Evaluates long-term deformation under sustained load and heat, relevant for high-temperature structural ceramics.
17. Wear and Erosion Resistance Testing – Evaluates surface degradation under abrasive or erosive contact, important for wear-part applications.
18. Chemical Resistance Testing – Evaluates ceramic stability when exposed to acids, alkalis, or molten metals in service.
19. Dimensional and Surface Finish Inspection – Precision measurement of tolerances and surface roughness for engineered components.
20. Elastic Modulus Testing (Impulse Excitation, ASTM C1259) – Measures stiffness via resonant frequency response, a fast non-destructive method.

Ceramic Test Method Comparison

Applications by Industry

Aerospace & Defence – High-temperature structural ceramics and ceramic matrix composites tested for thermal shock and creep resistance in engine components. Electronics – Ceramic substrates and insulators tested for dielectric strength and thermal conductivity. Industrial Wear Parts – Ceramic linings and cutting tools tested for hardness and wear resistance in abrasive processing environments. Energy – Refractory ceramics tested for thermal shock and creep in furnaces and reactors. Medical – Ceramic implant components (hip/knee) tested for flexural strength and fracture toughness under ISO 6872-aligned methods.

Industry Standards Referencing Ceramic Testing

ASTM C1161, ASTM C1421, ASTM C773, ASTM C1525, ASTM C373, ASTM E112, ASTM C1259, ISO 6872

Advantages and Limitations

Advantages: Identifies brittle-failure risk before component deployment; enables statistically grounded design margins (Weibull analysis) accounting for material variability; verifies performance in extreme thermal and chemical environments. Limitations: Brittle fracture makes destructive testing highly sensitive to specimen preparation and surface finish; statistical strength characterisation requires larger sample sizes than typical metal testing; results can vary significantly with processing/sintering conditions between batches.

Conclusion

Because ceramics fail differently than metals – abruptly, with little plastic warning, and with strength governed by microscopic flaws – testing programs lean on fracture mechanics and statistical strength analysis alongside conventional mechanical and thermal methods. That combination is what allows engineers to design confidently with a material class prized for hardness and heat resistance but demanding in its failure behaviour.
