Advanced Ceramics Testing & Properties: Key Methods & Standards Guide
The dense atomic bonding of advanced ceramics provides exceptional chemical stability.What Are Advanced Ceramics?
Advanced ceramics — also called technical, engineering, or fine ceramics — are inorganic, non-metallic materials processed to achieve precisely controlled chemical compositions and microstructures that deliver exceptional mechanical, thermal, electrical, and chemical performance. Unlike traditional ceramics (bricks, pottery), advanced ceramics are engineered at the molecular level to meet demanding specifications in the electronics, aerospace, defense, energy, and biomedical industries.
Common advanced ceramic materials include alumina (Al₂O₃), zirconia (ZrO₂), silicon carbide (SiC), silicon nitride (Si₃N₄), aluminum nitride (AlN), boron carbide (B₄C), and hydroxyapatite (HAp). Each offers a unique combination of properties — extreme hardness, chemical inertness, high-temperature stability, dielectric performance, or biocompatibility — unavailable in metals or polymers.
Key Properties of Advanced Ceramics
Mechanical Properties
Advanced ceramics exhibit exceptional hardness (Vickers hardness 1,000–3,000 HV), high compressive strength, and excellent wear resistance. However, they are inherently brittle — low fracture toughness (KIc = 2–10 MPa·m½) compared to metals (20–150 MPa·m½) — making tensile loading and impact resistance critical design considerations. Fracture toughness is measured by the SEVNB (single-edge V-notch beam) method per ISO 23146 and the indentation fracture method.
Thermal Properties
Silicon carbide retains strength above 1,400°C, making it the material of choice for kiln furniture, heat exchanger tubes, and rocket nozzle liners. Aluminum nitride combines high thermal conductivity (170–200 W/m·K) with excellent electrical insulation — ideal for power electronics substrates. Zirconia’s low thermal conductivity makes it the preferred thermal barrier coating (TBC) material for gas turbine blades.
Electrical Properties
Alumina is an excellent electrical insulator (dielectric constant ε ≈ 9–10, volume resistivity >10¹⁴ Ω·cm) widely used in electronic substrates, spark plug insulators, and hermetic packages. Piezoelectric ceramics (PZT — lead zirconate titanate) convert mechanical stress to electrical signals and vice versa — enabling ultrasonic transducers, accelerometers, and actuators.
Chemical and Biological Properties
Zirconia, alumina, and hydroxyapatite exhibit outstanding chemical inertness and biocompatibility, enabling use in dental implants, orthopedic femoral heads, and surgical cutting instruments. ISO 10993 biocompatibility testing and cytotoxicity evaluation per ISO 10993-5 are required for medical ceramic applications.

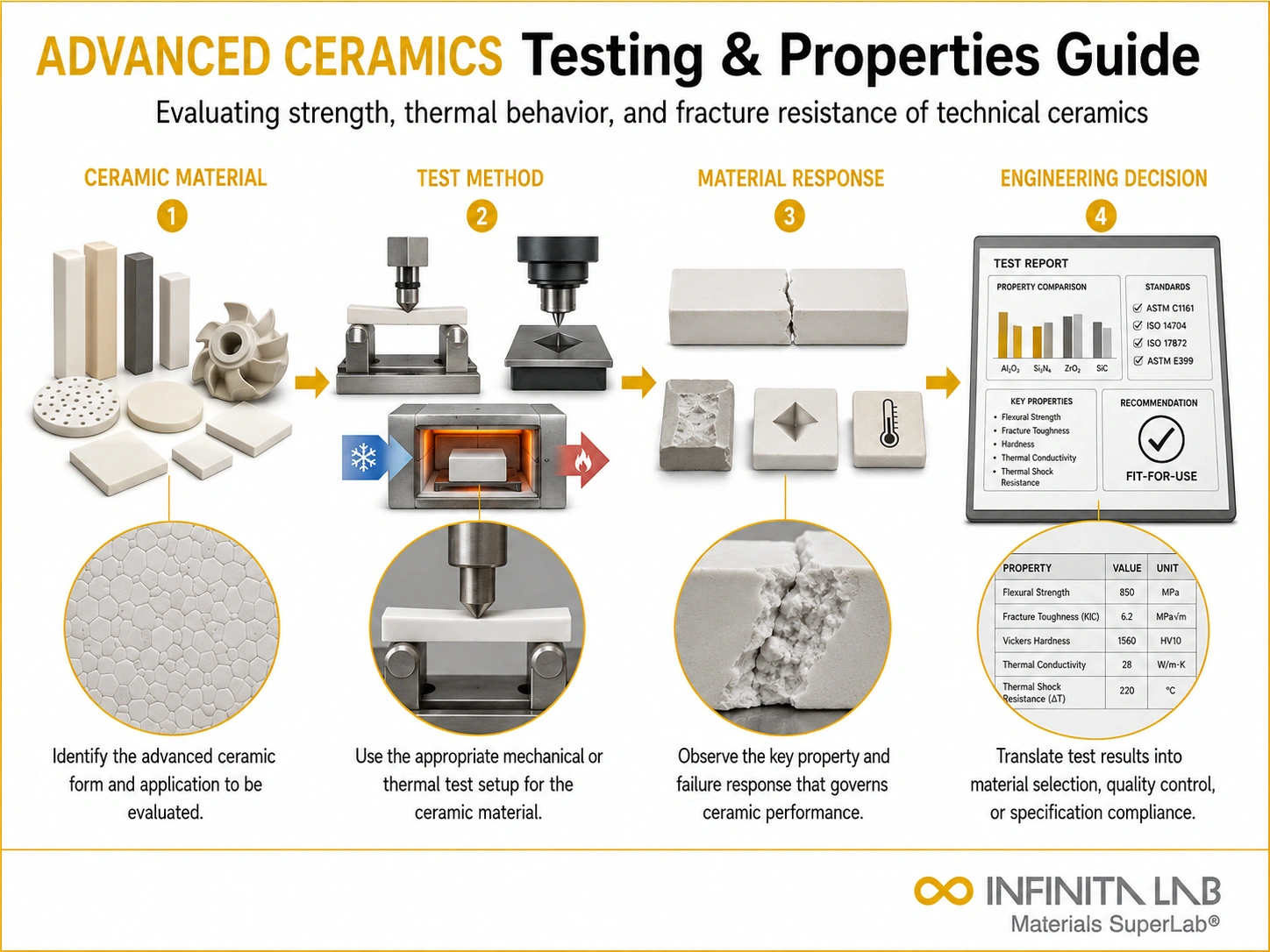

Testing Methods for Advanced Ceramics
Flexural Strength (ISO 14704 / ASTM C1161)
Four-point or three-point flexural testing of prismatic specimens provides modulus of rupture (MOR) — the tensile strength of a brittle ceramic is most accurately measured in bending because surface tensile stress governs fracture initiation from surface flaws. Weibull statistics characterize the inherent strength distribution.
Hardness (ASTM C1327 — Vickers, ISO 14705)
Vickers hardness at defined loads (0.5–10 kgf) quantifies scratch and wear resistance. Knoop hardness (anisotropic hardness) is used for elongated microstructures and thin ceramic coatings.
Thermal Shock Resistance (ASTM C1525)
Water quenching from elevated temperatures, followed by strength measurement, quantifies thermal shock damage resistance — critical for ceramics used in rapid temperature-cycling applications (burner nozzles, heat exchanger components).
Conclusion
Advanced ceramics are high-performance materials engineered for exceptional mechanical, thermal, electrical, and chemical properties that far exceed those of traditional ceramics. Despite their brittleness, their superior hardness, heat resistance, and functional versatility make them indispensable in aerospace, electronics, biomedical, and energy applications. Through standardized testing and precise material design, advanced ceramics enable reliable performance in some of the most demanding environments.
Why Choose Infinita Lab for Advanced Ceramics Testing?
Infinita Lab is a leading provider of advanced ceramics testing services, addressing the critical challenges faced by emerging businesses and established enterprises. With access to a vast network of over 2,000+ accredited partner labs across the United States, Infinita Lab ensures rapid, accurate, and cost-effective testing solutions with comprehensive project management and a Single Point of Contact (SPOC) model.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090. [Request a Quote]
Frequently Asked Questions
What makes advanced ceramics different from conventional ceramics? Advanced ceramics are manufactured from high-purity, precisely controlled raw materials using sophisticated powder processing, forming, and sintering techniques to achieve specific microstructures and properties. Conventional ceramics use natural raw materials with less precise control, resulting in variable properties suitable only for non-critical applications.
Why are advanced ceramics brittle and how is this managed in design? Brittleness in ceramics arises from their ionic/covalent bonding — no dislocation plasticity is available to redistribute stress at crack tips. Design strategies include using ceramics only under compressive loading (where they excel), applying toughening mechanisms (transformation toughening in zirconia, fiber reinforcement in CMCs), and using Weibull statistics to size components to achieve an acceptable failure probability.
What is transformation toughening in zirconia ceramics? Tetragonal zirconia undergoes a stress-induced phase transformation to monoclinic at crack tips, generating compressive stresses that oppose crack opening — effectively increasing fracture toughness from ~2 to ~10 MPa·m½. This mechanism makes partially stabilized zirconia (PSZ) and tetragonal zirconia polycrystal (TZP) the toughest monolithic ceramics available.
Which advanced ceramic is most widely used in electronics? Alumina (96% and 99.5% purity grades) is the most widely used electronic ceramic for substrates, packages, and insulators due to its combination of electrical insulation, dimensional stability, cost-effectiveness, and compatibility with thick-film metallization processes.
What testing standards apply to biomedical ceramic implants? ISO 6474 (alumina ceramics for surgical implants), ISO 13356 (zirconia ceramics), ISO 13779 (hydroxyapatite coatings), and ISO 10993 (biological evaluation) govern the testing and qualification of advanced ceramics for biomedical implant applications.
