Slow Crack Growth (SCG) Testing of Polymers: Methods & Standards
Polymer slow crack growth testing setup for durability and failure analysisSlow crack growth (SCG) is the progressive propagation of cracks in thermoplastics under sustained stress at levels well below the material’s short-term failure strength. SCG is the primary long-term failure mechanism for polyethene pressure pipes, geomembranes, and structural plastic components, making SCG resistance the most critical durability parameter for these applications. For manufacturers seeking slow crack growth testing at a USA-based ASTM testing lab, Infinita Lab provides comprehensive polymer durability testing through its accredited network of over 2,000 partner labs.
What Causes Slow Crack Growth
Under sustained tensile stress, localised crazing initiates at stress concentrations (surface scratches, inclusions, molding defects) in semicrystalline polymers. Molecular disentanglement in the amorphous regions between crystalline lamellae allows craze fibrils to stretch and eventually break, advancing the crack front at rates of millimetres per year in service. SCG is accelerated by higher stress, elevated temperature, and the presence of stress cracking agents.

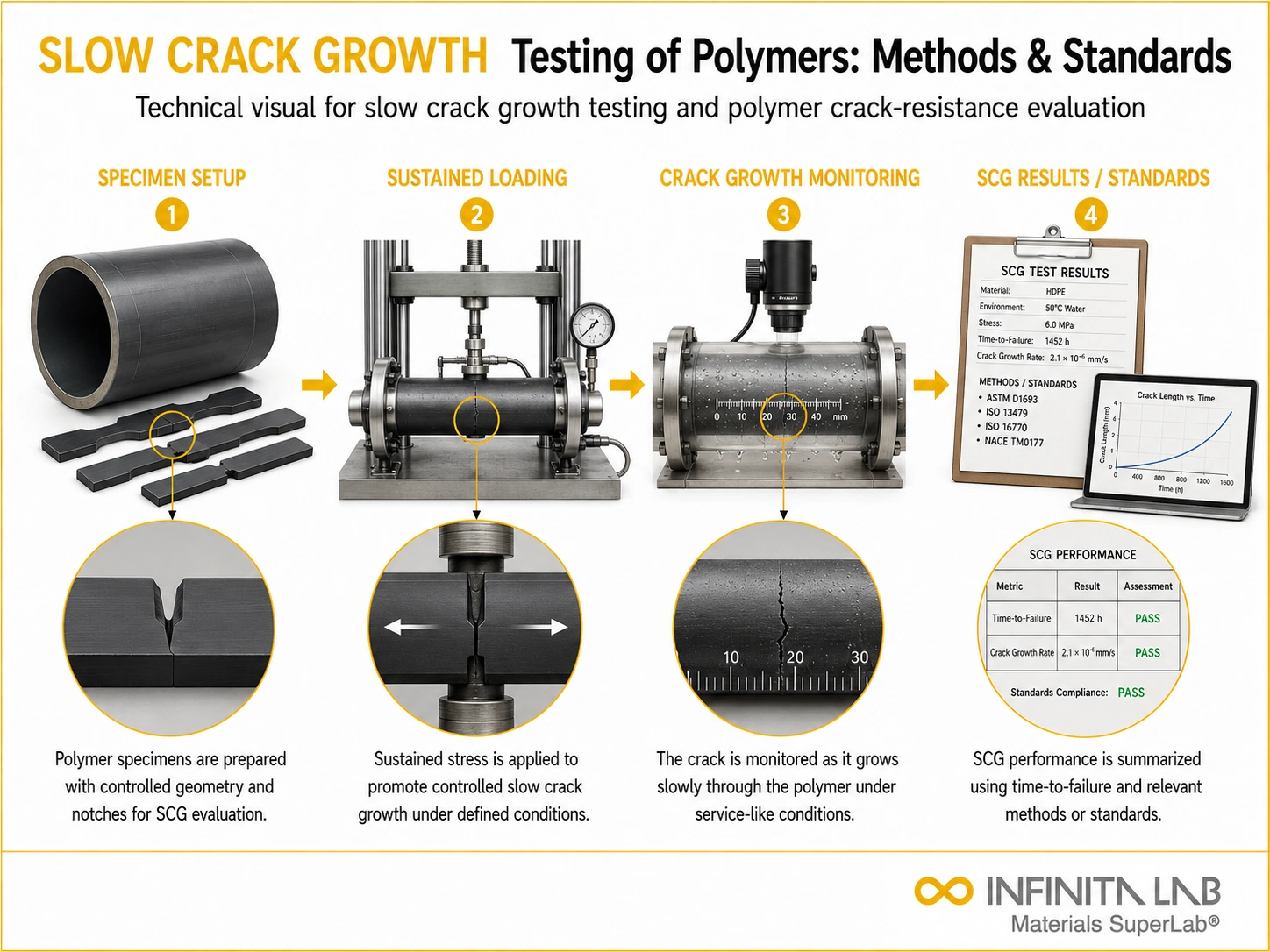

Testing Methods and Standards
ASTM F1473 – Notch Tensile Test (PENT)
The Pennsylvania Edge-Notch Tensile (PENT) test per ASTM F1473 measures SCG resistance by applying a constant tensile load to a notched specimen at 80°C and measuring the time to failure. Higher PENT failure times indicate superior SCG resistance. This test is the primary specification requirement for PE pipe materials.
ASTM D5397 – Notched Constant Tensile Load (NCTL) Test
ASTM D5397 measures SCG resistance of geomembranes and plastic sheets by applying constant tensile loads to notched specimens in surfactant solution at 50°C. The transition between ductile and brittle failure regimes identifies the SCG resistance threshold.
ASTM F2136 – Notched Tensile for PE Pipes
ASTM F2136 provides a shorter-duration alternative to PENT testing using higher stress levels and temperature to screen PE pipe materials for SCG resistance more rapidly.
Industry Applications
SCG testing qualifies HDPE water and gas distribution pipe, landfill geomembrane liners, corrugated drainage pipe, blow-molded chemical containers, and structural PE components for the construction and infrastructure industries.
Partnering with Infinita Lab for Optimal Results
Infinita Lab addresses the most frustrating pain points in the Crack Growth Testing process: complexity, coordination, and confidentiality. Our platform is built for secure, simplified support, allowing engineering and R&D teams to focus on what matters most: innovation. From kickoff to final report, we orchestrate every detail—fast, seamlessly, and behind the scenes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is slow crack growth in plastics? Slow crack growth is the gradual propagation of cracks in thermoplastics under sustained stress well below the short-term failure strength. It is the primary long-term failure mechanism for PE pipes and geomembranes.
What is the PENT test? The Pennsylvania Edge-Notch Tensile (PENT) test per ASTM F1473 measures SCG resistance by loading a notched PE specimen at 80°C under constant stress and measuring time to failure. It is the primary SCG test for PE pipe materials.
What ASTM standards cover slow crack growth testing? ASTM F1473 (PENT test), ASTM D5397 (NCTL test for geomembranes), ASTM F2136 (notched tensile for PE pipe), and ISO 16770 (full notch creep test) are key SCG testing standards.
How does molecular weight affect SCG resistance? Higher molecular weight and broader molecular weight distribution increase the density of tie molecules connecting crystalline regions, dramatically improving SCG resistance. Modern bimodal PE pipe resins are specifically designed for superior SCG performance.
Can SCG testing predict pipe service life? SCG test results correlate with long-term hydrostatic stress rupture data and field performance. PE pipe materials passing PENT testing thresholds (>500 hours for PE4710) are qualified for 50+ year service life in water and gas distribution.
