ASTM C1337 Creep & Creep-Rupture Testing for Continuous Fiber Ceramic Composites
Creep and creep rupture test methods described in ASTM C1337 determine deformation of continuous fiber-reinforced ceramic matrix composites as a function of time when subjected to uniaxial tensile stresses at higher temperatures. This also provides time-of-failure of specimens.
TRUSTED BY
Precision-driven testing for dimensional accuracy and compliance
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables

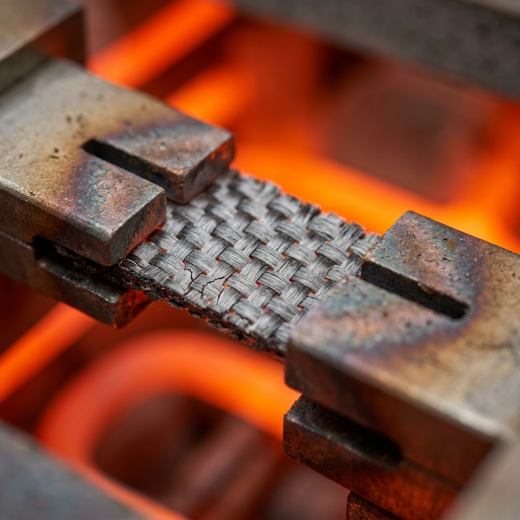

ASTM C1337 Creep-Rupture Testing Overview
ASTM C1337 is a standardized test method used to determine tensile creep and creep rupture behavior of continuous fiber-reinforced advanced ceramics (CMCs) under elevated temperatures. It evaluates long-term deformation and failure under sustained tensile loading.
The method is specifically designed for ceramic matrix composites such as SiC/SiC, SiC/borosilicate glass, and oxide/oxide systems, where fiber reinforcement significantly influences creep behavior and failure mechanisms.
Scope, Applications, and Benefits
Scope
ASTM C1337 applies to continuous fiber-reinforced ceramic matrix composites, including unidirectional, bidirectional, and tridirectional fiber-reinforced materials, as well as glass matrix composites that employ continuous fiber reinforcement. This test procedure is primarily employed to determine the creep strain and resistance to failure (creep rupture) of these materials under uniaxial tensile stress at high temperatures.
ASTM C1337 evaluates:
- Tensile creep behavior of ceramic matrix composites
- Creep strain rate under sustained loading
- Time to rupture and failure mechanisms
- Fiber-dominated deformation behavior
- High-temperature performance of CMC systems
Applications
- High-temperature structural components
- Aerospace ceramic composites
- Gas turbine engine components
- Thermal protection systems
- Industrial furnace components
- Energy and power generation systems
- Research and development of advanced ceramic composites
Benefits
- Determines time-dependent tensile deformation
- Evaluates creep rupture life
- Assesses high-temperature structural stability
- Identifies nonlinear stress-strain behaviour
- Analyses environmental and corrosion effects
- Supports material selection for extreme environments
- Provides standardised high-temperature performance data
- Enhances long-term reliability prediction
ASTM C1337 Creep-Rupture Testing Test Process
Specimen Preparation & Conditioning
Standard tensile specimens are prepared to specified geometry and conditioned or heat-treated as required.
1Elevated Temperature Setup
Specimen is heated to the required high temperature under controlled conditions.
2Tensile Creep Loading
Constant uniaxial tensile stress is applied while time-dependent strain is continuously monitored.
3Rupture & Data Recording
Test continues until failure; stress, strain, temperature, and time-to-rupture data are recorded.
4ASTM C1337 Creep-Rupture Testing Technical Specifications
| Parameter | Details |
|---|---|
| Loading Mode | Uniaxial tensile loading |
| Temperature Range | Room temperature to ~1400°C+ |
| Specimen Tolerance | Tight dimensional tolerances (machined precision specimens) |
| Atmosphere | Air, inert gas (argon), steam, or vacuum |
| Specimen Type | Continuous fibre-reinforced ceramic and glass matrix composites |
| Minimum Specimens | Typically ≥3 per test condition |
| Test Duration | Hours to 1000+ hours (creep-rupture testing) |
| Reinforcement Types | Unidirectional, bidirectional, tridirectional fibres |
| Strain Measurement | High-temperature extensometer (high resolution) |
| Output Units | SI Units (International System of Units) |
Instrumentation Used for Testing
- High-temperature tensile testing machine
- Creep testing frame with constant load capability
- High-temperature furnace
- Extensometer or strain measurement system
- Temperature control and monitoring system
- Load cell
- Data acquisition system
Results and Deliverables
- Creep strain vs. time curves
- Creep rate determination
- Time-to-rupture data
- Stress vs. rupture life relationship
- High-temperature deformation analysis
- Comparative material performance reports
- Compliance report
Frequently Asked Questions
ASTM C1337 is a standard test method that is employed to measure the tensile creep deformation, creep rate, and creep rupture response of continuous fiber-reinforced advanced ceramic composites at elevated temperatures.
This method applies to continuous fiber-reinforced ceramic composites (CFCCs), including silicon carbide fiber-reinforced silicon carbide and oxide fiber-reinforced oxide matrix composites used in high-temperature structural applications.
The Creep test assesses the long-term deformation and durability of materials under constant stress and temperature conditions, which helps engineers estimate the life span of aerospace engines, turbines, and thermal protection systems.
The Creep performance is affected by fiber type, matrix material, fiber/matrix interface, stress, temperature, environment, and the level of fabrication, which affect deformation mechanisms and rupture resistance at high temperatures.
The test measures creep strain versus time, steady-state creep rate, time-to-rupture, and failure characteristics while specimens are subjected to constant tensile stress at controlled temperatures.
