Critical Medical Device Testing: Methods, Standards, and Compliance

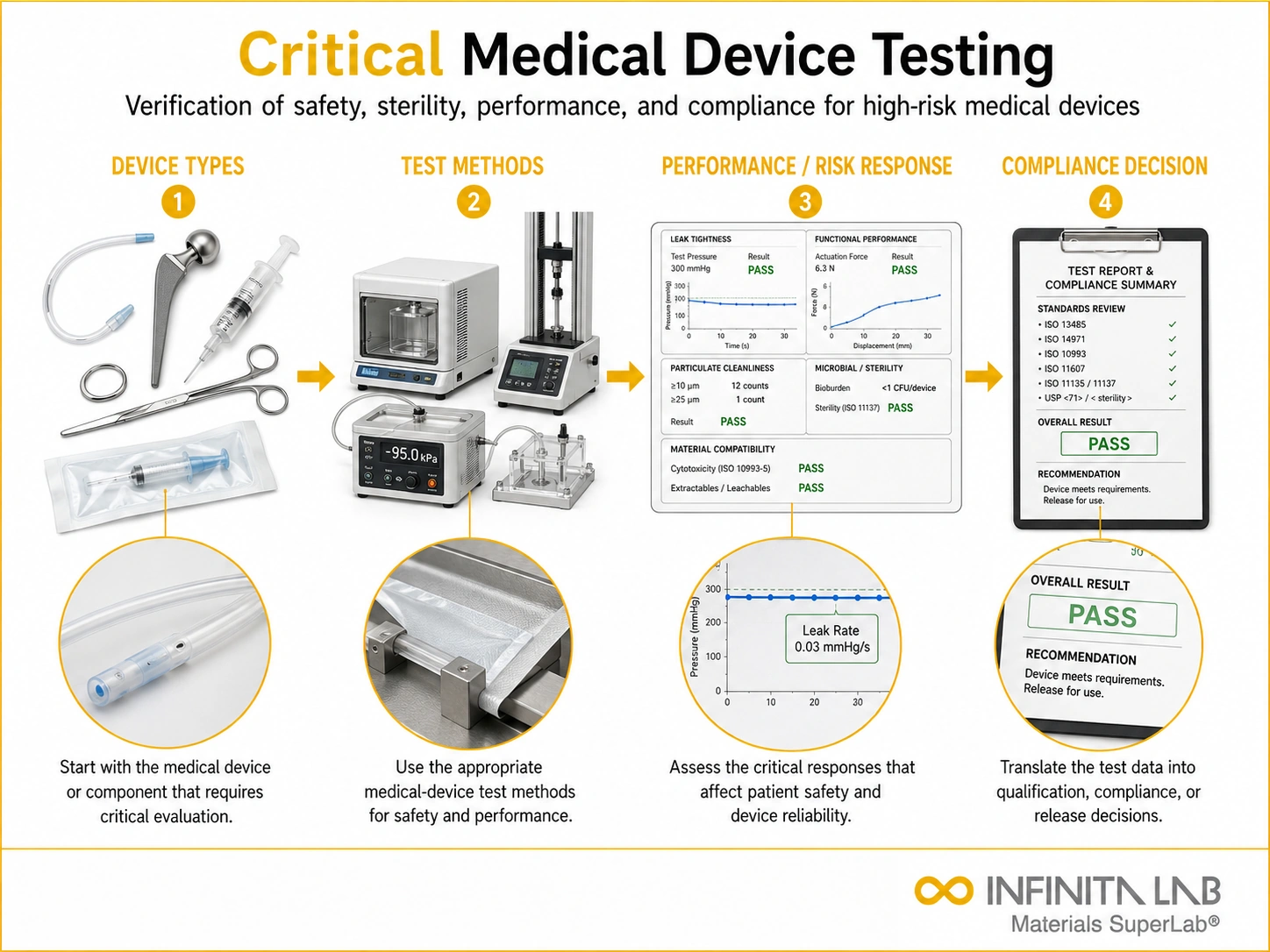

Representative Infinita Engineering Visual explaining the four-step workflow for Critical Medical Device Testing.What Is Critical Medical Device Testing?
Medical device material testing verifies that materials and finished devices are safe for their intended contact with the human body, and that they perform reliably for the duration of that contact. The foundational framework is ISO 10993, Biological Evaluation of Medical Devices, which sits within the broader risk management process defined by ISO 14971.
Biological Evaluation Framework (ISO 10993)
ISO 10993-1 establishes the overall risk-based approach, guiding manufacturers through identifying, assessing, and managing biological risks tied to materials, design, and tissue contact duration. From there, specific test types are selected based on the nature and duration of patient contact:
- Cytotoxicity (ISO 10993-5): assesses whether a material causes cell death or growth inhibition
- Sensitization and irritation: evaluates allergic or irritant response potential
- Hemocompatibility (ISO 10993-4): required for devices in contact with circulating blood
- Chronic toxicity (ISO 10993-11): required for long-term implants or extended-contact devices
- Chemical characterization and extractables/leachables testing: identifies substances that could migrate from the device into the body
USP Class VI
Alongside ISO 10993, USP Class VI testing remains widely used, particularly for evaluating biocompatible plastics, even though the more extensive ISO 10993 series was intended to eventually supersede it.
Mechanical and Material Testing
Beyond biocompatibility, critical devices typically require mechanical verification appropriate to their function — tensile and fatigue testing for implants, dimensional and material verification for components, and accelerated aging studies to establish shelf life and in-service durability under sterilization and handling conditions.
Also Read – What Is Thermoforming? Process, Types, and Applications
Industry Specifications Referencing Medical Device Testing
- ISO 10993 (all parts): biological evaluation series
- ISO 14971: risk management framework for medical devices
- USP Class VI: legacy plastics biocompatibility standard, still in wide use
- FDA guidance documents: incorporate ISO 10993 principles into US regulatory submissions
Conclusion
Biocompatibility testing isn’t a single pass/fail check — it’s a risk-based selection process where the required test battery depends entirely on how, and for how long, a device contacts the body. Getting that scoping right early avoids costly re-testing later in the regulatory submission process.
What is critical medical device testing? It is the verification and validation of devices whose failure could seriously affect patient safety. Testing confirms that the device meets design requirements, intended uses, performance specifications, and applicable regulatory requirements.
What types of testing are commonly required? Testing may include mechanical performance, electrical safety, biocompatibility, sterilization, packaging integrity, software validation, cybersecurity, reliability, and usability. The exact test program depends on the device design, patient contact, intended environment, and identified risks.
How does risk management guide medical device testing? ISO 14971 provides a framework for identifying hazards, estimating risks, implementing controls, and evaluating residual risks throughout the device lifecycle. Testing provides objective evidence that risk-control measures perform as intended.
Why is biocompatibility testing important? Biocompatibility testing evaluates whether patient-contacting materials may cause harmful biological responses. ISO 10993-1 uses a risk-based approach that considers material composition, contact type, exposure duration, and intended clinical use.
How are sterile medical devices tested? Sterile devices require validated sterilization processes, microbiological testing, and routine process monitoring. Testing may include bioburden, sterility, bacterial endotoxin, sterilant residuals, and package-integrity evaluations.
