What Is Thermoforming? Process, Types, and Applications

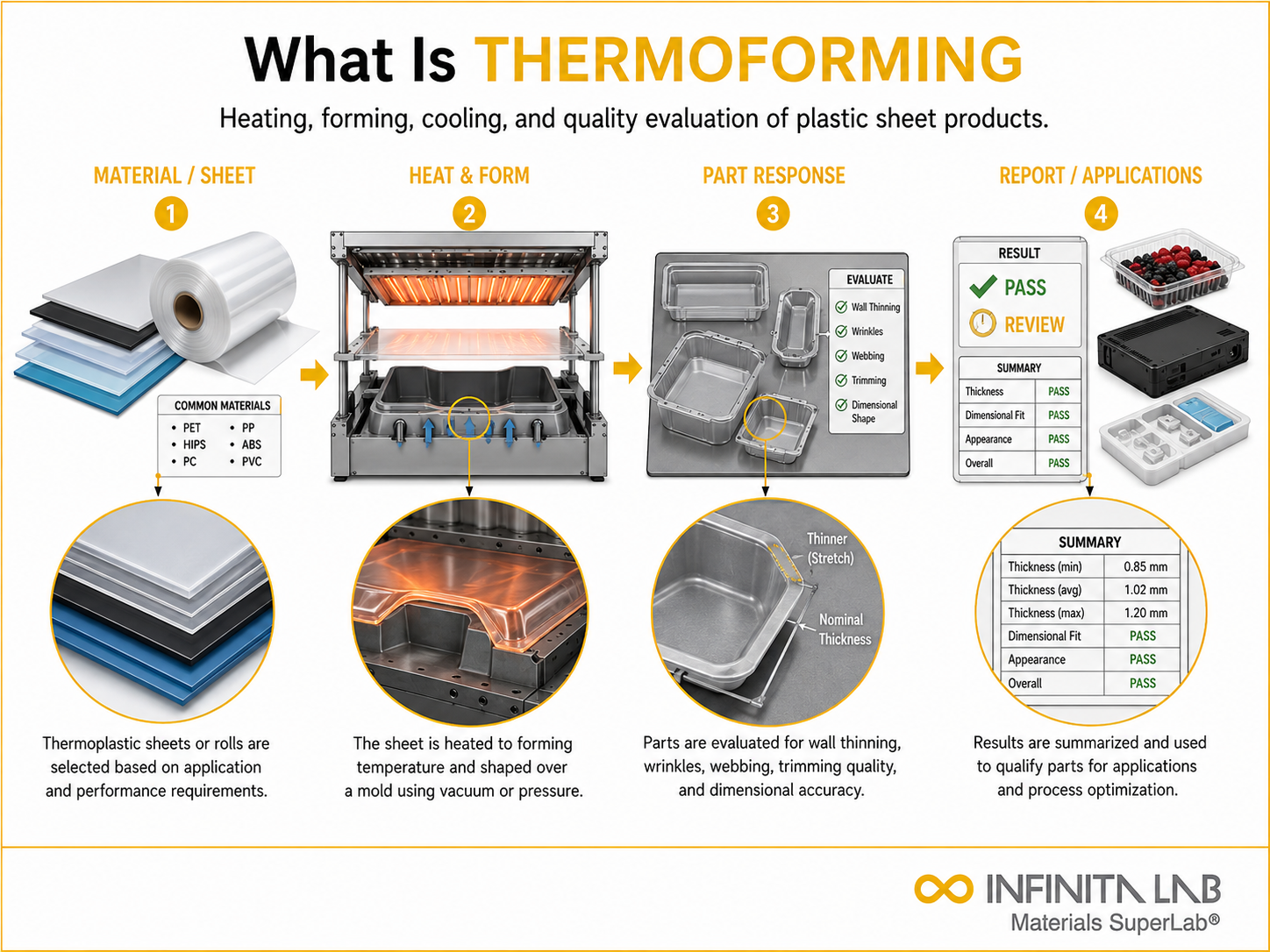

Representative Infinita Engineering Visual explaining the four-step workflow for What Is Thermoforming.What Is Thermoforming?
Thermoforming is a manufacturing process in which a flat thermoplastic sheet is heated until pliable, then shaped over or into a mold using vacuum, air pressure, or mechanical force, and trimmed into a final part. It’s one of the most widely used methods for producing everything from food packaging to bathtubs and equipment enclosures.
Primary Thermoforming Methods
- Vacuum forming: the simplest method — a heated sheet is draped over a single mold and a vacuum pulls it into shape. Ideal for parts that only need precise detail on one side, such as contoured packaging.
- Pressure forming: the heated sheet is pressed between two mold surfaces using pressurized air on the backside, allowing for finer surface detail and deeper draws on both sides — commonly used for appliance housings and medical device enclosures.
- Twin-sheet forming: two sheets are formed simultaneously and fused, producing a hollow double-walled part in a single operation.
- Plug-assisted forming: a mechanical plug pre-stretches the sheet before vacuum or pressure is applied, improving material distribution in deep-draw parts.
Process Steps
- Clamp the plastic sheet in a frame
- Heat via contact (conduction), convection (circulating hot air), or radiant (infrared) heating until the sheet reaches forming temperature
- Form the sheet into or over the mold using vacuum, pressure, or a combination
- Cool the part while still in or on the mold to retain shape
- Trim the formed part from the surrounding sheet material
Key Process Variables
Heating uniformity is critical — uneven heating leads to inconsistent wall thickness and warping. Wall thickness reduction is proportional to how far the material is stretched relative to the original sheet area, and typical dimensional tolerances range from +/-0.75 to +/-1.5 mm depending on part geometry and thickness.
Industry Specifications Referencing Thermoforming
- Common materials: ABS, acrylic, HIPS, PETG, polycarbonate
- Related processes: injection molding, blow molding, and fibreglass (FRP) layup are common alternatives depending on volume and part geometry
Also Read – Metallic Materials Testing, Explained
Conclusion
Thermoforming trades some of the design flexibility and per-unit strength of injection molding for dramatically lower tooling costs and faster turnaround — which is exactly why it remains the go-to choice for prototyping, low-to-mid-volume production, and large-format parts.
How does the thermoforming process work? The process generally includes heating the plastic sheet, shaping it with vacuum or pressure, cooling the formed part, and trimming away excess material.
What are the main types of thermoforming? The main types are vacuum forming, pressure forming, and mechanical forming. Each method uses a different technique to shape the heated plastic sheet.
What is vacuum forming? Vacuum forming uses suction to pull a heated plastic sheet tightly against a mould. It is commonly used for simple, lightweight, and cost-effective components.
What is pressure forming? Pressure forming uses compressed air in addition to vacuum pressure. It produces sharper details, deeper shapes, and more complex surface features than standard vacuum forming.
Which materials are commonly thermoformed? Common materials include ABS, PET, PVC, polystyrene, polycarbonate, polypropylene, acrylic, and high-density polyethylene. Material selection depends on strength, appearance, temperature, and application requirements.
