Dynamics Testing: Vibration, Shock, and Fatigue Methods

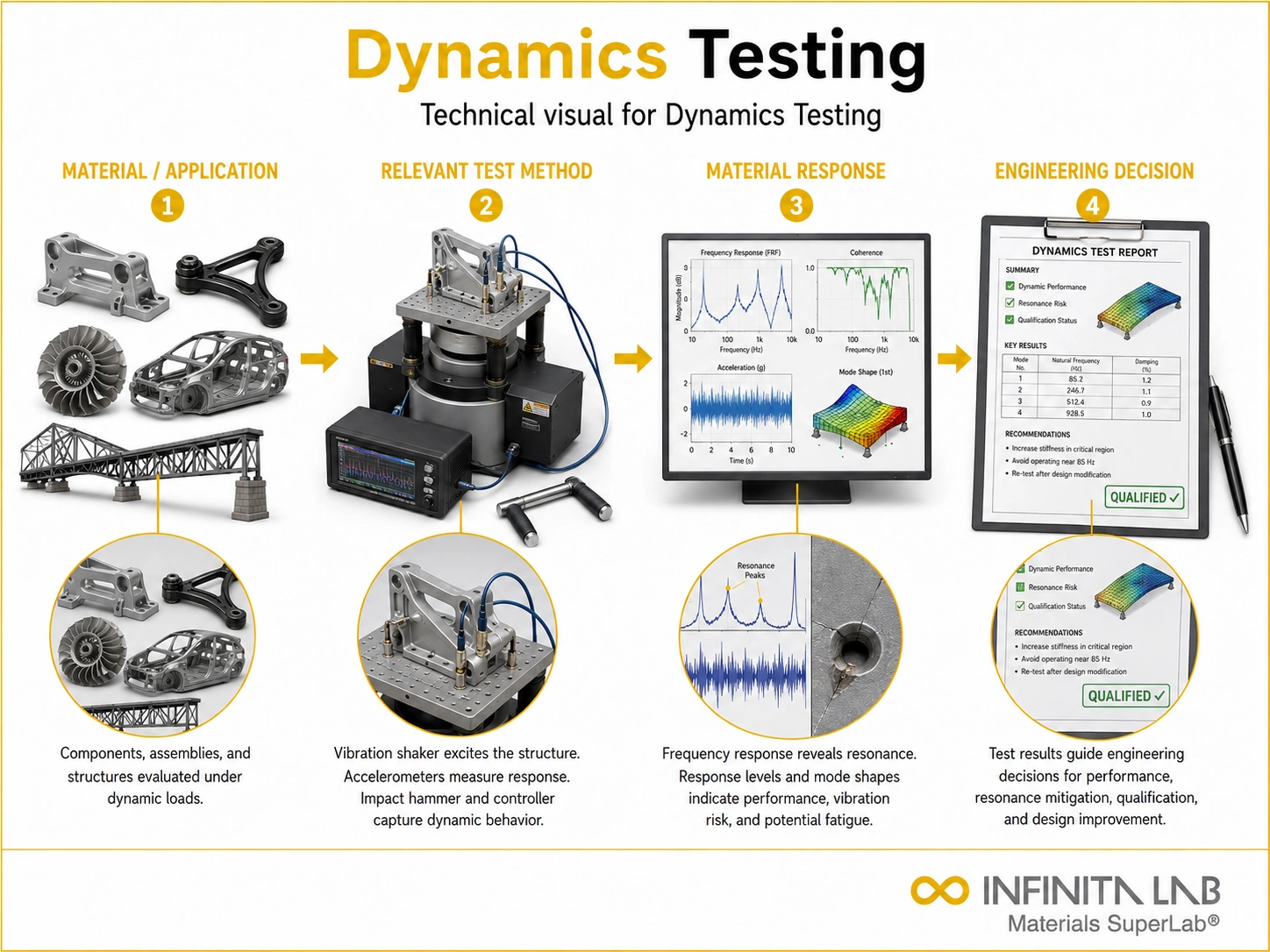

Representative Infinita Engineering Visual explaining the four-step workflow for Dynamics Testing.What Is Dynamics Testing?
Dynamics testing — most commonly performed as modal (or experimental modal) analysis — determines a structure’s natural frequencies, mode shapes, and damping ratios by exciting it with a known input and measuring its vibrational response. This data underpins structural design validation, vibration troubleshooting, and finite element model correlation across aerospace, automotive, power generation, and civil engineering applications.
Excitation Methods
- Impact hammer testing: an instrumented hammer, fitted with a force sensor, strikes the structure at a defined point, delivering a short-duration broadband excitation across a wide frequency range in a single strike
- Shaker (modal exciter) testing: an electrodynamic or piezoelectric shaker delivers a sustained excitation signal — commonly a sine sweep, random (white noise), burst random, or chirp profile — allowing more total energy input over a longer duration than an impact hammer, at the cost of added test complexity
Also Read – What Is Fatigue? Causes, Failure, and Testing
Test Procedure
- Instrument the structure with accelerometers, force sensors, or non-contact laser vibrometers at multiple locations
- Isolate the structure from unwanted environmental influences — soft rubber supports or foam are commonly used to decouple the test article from the ground or fixture
- Apply the chosen excitation (impact or shaker) while simultaneously recording the input force and the resulting acceleration response
- Compute the frequency response function (FRF) from the ratio of response to input force across the frequency spectrum
- Curve-fit the FRF data to extract natural frequencies, modal damping ratios, and mode shapes
- Validate results using the coherence function, which indicates confidence that an observed FRF peak reflects a genuine structural resonance rather than measurement noise
Why Resonance Matters
When an external excitation frequency coincides with a structure’s natural frequency, the resulting resonance dramatically amplifies vibration response even from a small input force — a condition that, left unaddressed, can cause structural fatigue or outright failure. Modal testing identifies these natural frequencies so engineers can either avoid exciting them in operation or modify the structure’s mass, stiffness, or damping to shift them out of the operating range.
Multi-Input, Multi-Output (MIMO) Testing
For structures with closely spaced or repeated natural frequencies — such as two perpendicular bending modes on a symmetric plate — a single-input test may not adequately separate the modes. Multi-shaker MIMO configurations, using multiple simultaneous excitation points and multiple response sensors, resolve this ambiguity where single-input testing falls short.
Industry Specifications Referencing Dynamics Testing
- Common applications: aircraft frame components, turbine blades, vehicle chassis, and structures exposed to operational vibration
- Modal Assurance Criterion (MAC): standard metric quantifying correlation between experimental modal results and finite element model predictions
Also Read – What Is Thermoforming? Process, Types, and Applications
Conclusion
Dynamics testing exists to answer a question static testing can’t: not just how strong a structure is, but whether its natural vibration characteristics will interact dangerously with the forces it will actually experience in service — a distinction that matters most for structures subject to sustained or repetitive operational vibration.
What is vibration testing? Vibration testing exposes a specimen to controlled oscillating motion using a shaker system. The test may use sinusoidal, random, or combined vibration profiles to simulate operating equipment, vehicles, aircraft, shipping, or machinery. Engineers monitor the sample for loosening, cracking, resonance, electrical interruption, and other performance changes.
What is the difference between sine and random vibration testing? Sine vibration applies energy at one frequency at a time and is useful for identifying resonant frequencies and evaluating specific operating conditions. Random vibration applies many frequencies simultaneously and better represents complex real-world environments such as road transport, aircraft operation, and industrial machinery.
What is mechanical shock testing? Mechanical shock testing subjects a product to a sudden acceleration or deceleration over a short period. It is used to simulate drops, impacts, collisions, handling events, and equipment operation. Shock testing can reveal brittle fractures, broken connections, displaced components, seal damage, and temporary or permanent functional failures.
What is resonance in vibration testing? Resonance occurs when the excitation frequency approaches a component’s natural frequency, causing vibration amplitude to increase significantly. High vibration levels at resonance can loosen fasteners, damage joints, crack materials, and disrupt electrical performance. Resonance searches are often performed before endurance testing to identify critical frequencies.
How are test conditions selected? Test conditions are based on applicable standards, measured field data, customer specifications, product mass, mounting arrangement, expected service environment, and required safety margin. Important parameters include frequency range, acceleration level, displacement, pulse shape, duration, number of cycles, loading direction, and operating condition.
