Flexural Modulus: Definition, Testing Methods & Material Significance
Thermal emission microscopy showing IC hot spot localization by photon emission for fault analysisFlexural modulus (also called bending modulus) measures a material’s resistance to deformation under bending loads. This fundamental stiffness property drives material selection for structural applications where deflection control is critical. Flexural modulus data enables engineers to predict how beams, panels, and structural components will deflect under service loads across the plastics, composites, construction, automotive, and aerospace industries. For manufacturers seeking flexural modulus testing at a US-based testing lab, Infinita Lab provides comprehensive mechanical testing through its accredited laboratory network.
What Flexural Modulus Measures

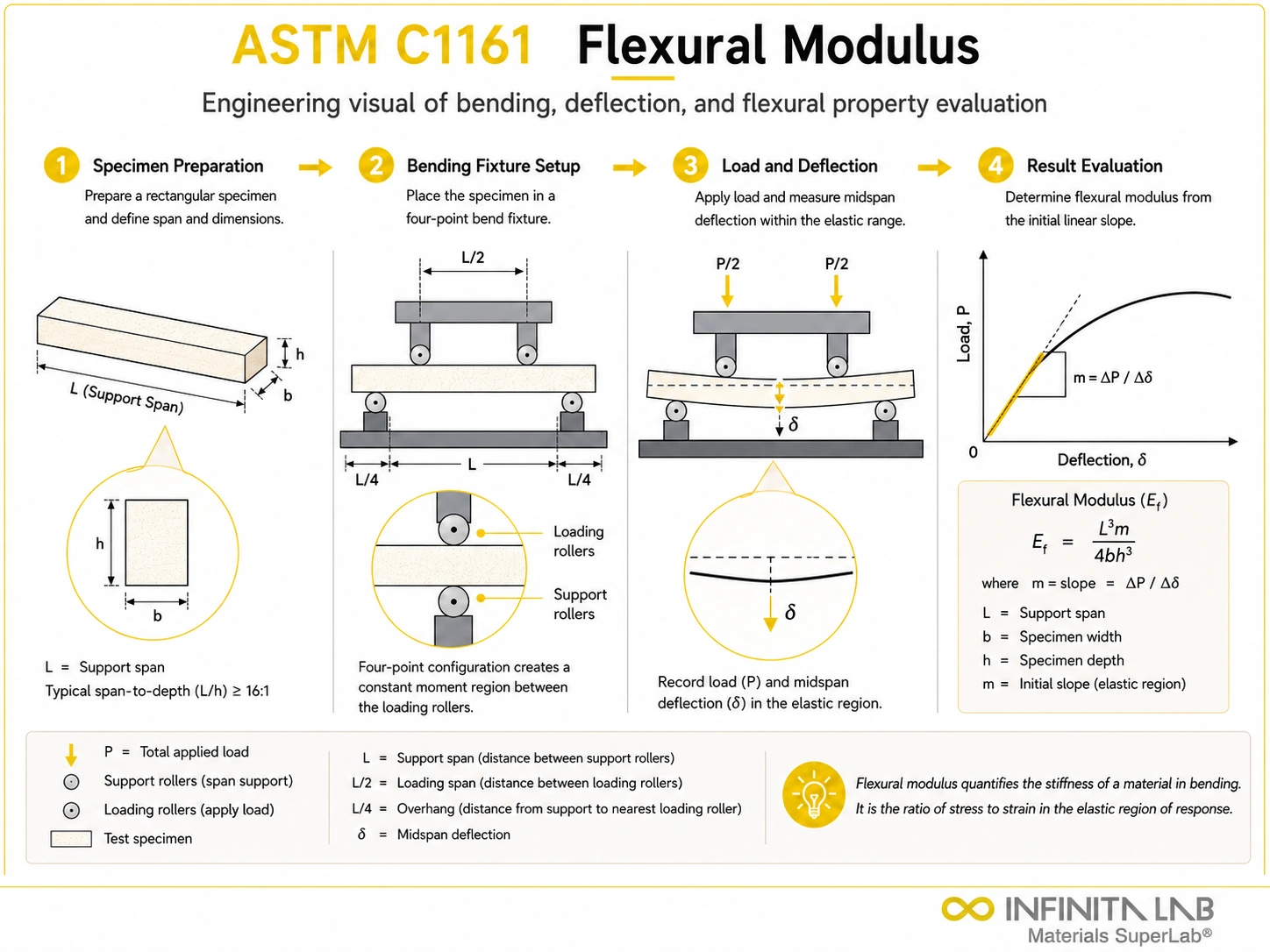

Flexural modulus is calculated from the initial linear portion of the stress-strain curve obtained during a three-point or four-point bend test. It represents the ratio of flexural stress to flexural strain within the elastic region, expressed in GPa or psi. Higher flexural modulus values indicate stiffer materials that resist bending more effectively. For isotropic materials, the flexural modulus approximates the tensile modulus, but for fibre-reinforced composites and semicrystalline polymers, the values may differ due to anisotropy.
Testing Standards
ASTM D790 – Flexural Properties of Plastics
ASTM D790 is the primary standard for measuring flexural modulus and flexural strength of unreinforced and reinforced plastics using three-point bending. Standard specimen dimensions are 127 x 12.7 x 3.2 mm with a support span-to-depth ratio of 16:1.
ASTM C580 – Flexural Strength of Chemical-Resistant Materials
ASTM C580 covers flexural testing of chemical-resistant mortars, grouts, and polymer concrete used in the construction and chemical processing industries.
ASTM D7264 – Flexural Properties of Composites
ASTM D7264 covers four-point bending of polymer matrix composites, providing a constant moment region that eliminates the stress concentration at the loading nose present in three-point bending.
Applications of Flexural Modulus Data
Flexural modulus data supports structural design calculations for deflection prediction, material specification and incoming inspection, comparative evaluation of material grades and formulations, filler and reinforcement optimisation for stiffness targets, and quality control monitoring for processing consistency in the plastics and composites industries.
Infinita Lab: Your Material Testing Partner
Contact Infinita Lab for Flexural Testing and enjoy major benefits like end-to-end testing management, faster turnaround, and reduced administrative burden. Gain confidence in accurate results and reduced stress in vendor coordination. Enhance your reputation for product reliability and innovation. Engineers and R&D managers can focus on core work rather than testing logistics.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is flexural modulus? Flexural modulus measures a material’s stiffness in bending—the resistance to deflection under a bending load. It is calculated from the initial slope of the flexural stress-strain curve during a standard bend test.
What ASTM standard measures flexural modulus? ASTM D790 is the primary standard for plastics, ASTM D7264 for polymer composites, and ASTM C580 for chemical-resistant materials. ISO 178 is the international equivalent for plastics.
How does flexural modulus differ from tensile modulus? For isotropic materials, they are approximately equal. For fiber-reinforced composites and semicrystalline polymers, flexural modulus may differ from tensile modulus due to anisotropy, skin-core effects, and the combined tension-compression stress state in bending.
How do fillers affect flexural modulus? Glass fibres, carbon fibres, mineral fillers (talc, calcium carbonate), and nano clays significantly increase flexural modulus. A 30% glass-fibre-filled nylon may have a flexural modulus 3–4 times that of the unfilled resin.
What is a typical flexural modulus for common plastics? Polyethylene: 0.8–1.4 GPa, polypropylene: 1.2–1.7 GPa, ABS: 2.0–2.6 GPa, polycarbonate: 2.3–2.4 GPa, 30% glass-filled nylon: 8–10 GPa. Values vary with grade, formulation, and processing conditions.
