Sandwich Panel Flexural Stiffness: Testing Methods & Calculation Guide
The core material significantly influences the overall flexural stiffness of the structure.Sandwich structures—thin, stiff face sheets bonded to a thick, lightweight core—deliver exceptional flexural stiffness and strength at minimal weight, making them the structural solution of choice for aerospace, marine, wind energy, transportation, and construction applications. Flexural stiffness testing quantifies the bending resistance of sandwich panels, providing essential design data for structural analysis and weight optimisation. For companies seeking sandwich panel testing at a US-based ASTM testing lab, Infinita Lab provides comprehensive composite testing through its accredited laboratory network.
Why Flexural Stiffness Matters

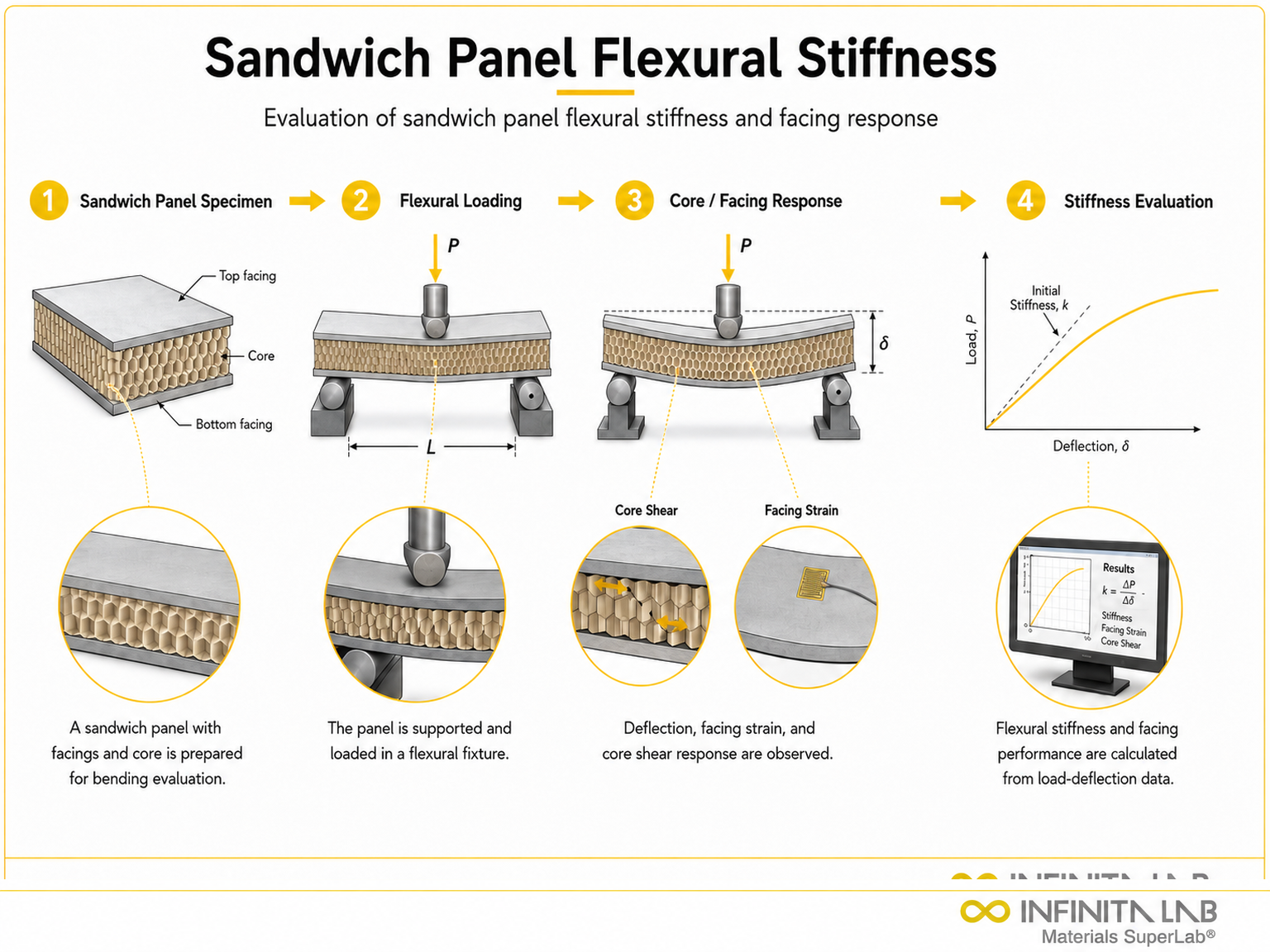

Sandwich panels achieve high stiffness by separating the face sheets with a core, much like an I-beam positions material far from the neutral axis. The face sheets carry bending loads (tension and compression), while the core carries shear loads and stabilises the face sheets against buckling. Flexural stiffness (EI per unit width) is the primary design parameter for panel deflection calculations under distributed and point loads.
Testing Methods and Standards
ASTM C393 – Flexural Properties of Sandwich Constructions

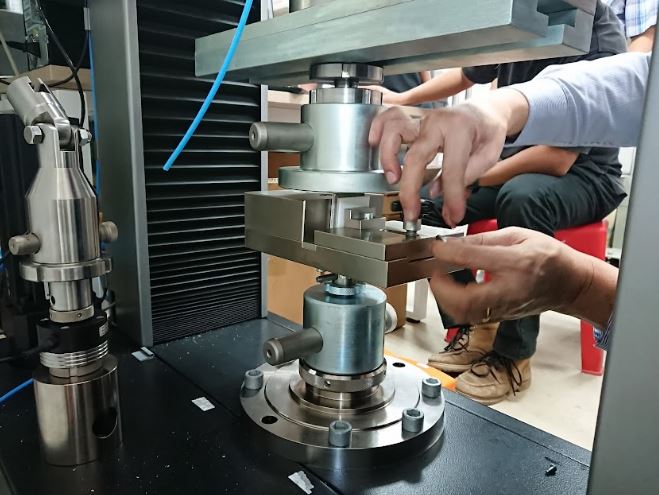

ASTM C393 measures core shear properties and panel bending behaviour using three-point or four-point loading. The test determines the core shear stress, shear modulus, and face-sheet bending stress for sandwich beams with thin face sheets.
ASTM D7249 – Facing Properties of Sandwich Constructions
ASTM D7249 uses four-point bending with long spans to evaluate face-sheet tensile and compressive strength by ensuring face-sheet failure rather than core-shear failure.
ASTM D7250 – Determining Sandwich Beam Stiffness
ASTM D7250 specifically calculates flexural and transverse shear stiffness from beam deflection data obtained during ASTM C393 or D7249 testing, separating bending and shear contributions to total deflection.
Core Materials
Common core materials include aluminium honeycomb (highest specific stiffness), Nomex honeycomb (flame resistance for aircraft interiors), PVC and PET foams (marine and wind energy), balsa wood (high shear strength per weight), and polyurethane and PMI foams (versatile industrial applications).
Why Choose Infinita Lab for Composite Testing?
At the core of this breadth is our network of 2,000+ accredited labs in the USA, offering access to over 10,000 test types. From advanced metrology (SEM, TEM, RBS, XPS) to mechanical, dielectric, environmental, and standardised ASTM/ISO testing, we give clients unmatched flexibility, specialisation, and scale. You are not limited by geography, facility, or methodology—Infinita connects you to the right testing, every time.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is a sandwich structure? A sandwich structure consists of two thin, stiff face sheets bonded to a thick, lightweight core. This configuration maximizes flexural stiffness and strength while minimizing weight—the fundamental principle of lightweight structural design.
What ASTM standards cover sandwich panel testing? ASTM C393 (core shear/flexural properties), ASTM D7249 (face sheet properties), ASTM D7250 (stiffness determination), ASTM C365 (core compression), and ASTM C297 (flatwise tension/core-face bond) are key standards.
What is the difference between ASTM C393 and D7250? ASTM C393 is the test method used to generate load-deflection data. ASTM D7250 is the calculation practice that separates bending stiffness from shear stiffness using data from C393 tests at multiple span lengths.
Why do sandwich panels fail? Common failure modes include face-sheet yielding or fracture, core shear failure, face-sheet wrinkling (local buckling), core crushing under concentrated loads, and face-core delamination (disbond).
Which industries use sandwich structures? Aerospace (fuselage, flooring, control surfaces), marine (hulls, decks), wind energy (turbine blades), automotive (body panels), construction (curtain walls, cladding), and sporting goods extensively use sandwich structures.
