PCB Testing and Failure Analysis: Methods and Techniques

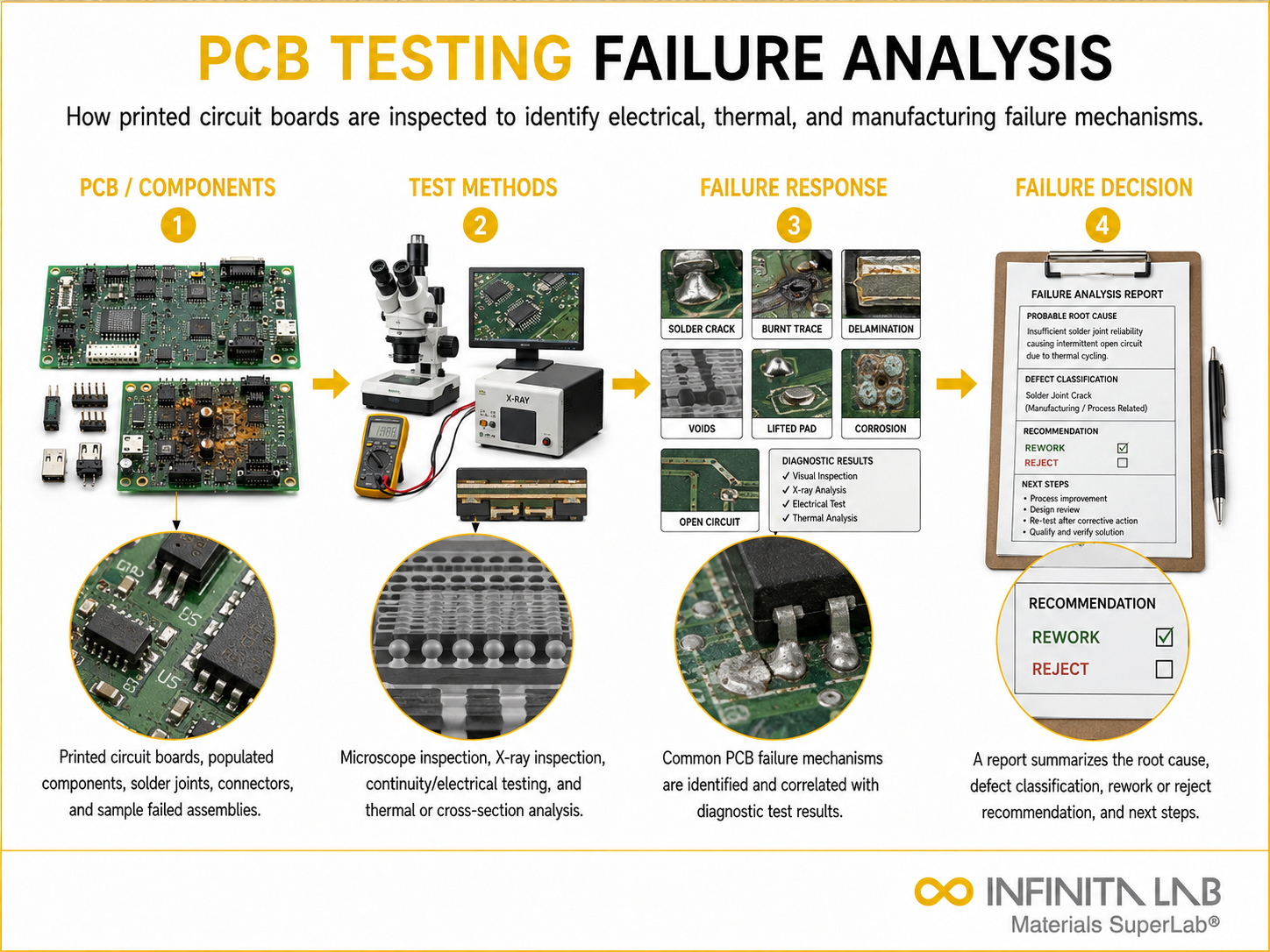

Representative Infinita Engineering Visual explaining the four-step workflow for Pcb Testing Failure Analysis.What Is PCB Failure Analysis?
PCB failure analysis identifies the physical and electrical root cause behind a printed circuit board or assembly failure, working from non-destructive screening methods toward increasingly invasive physical analysis. Because destructive steps can permanently remove the evidence needed to pin down a root cause, the sequencing of methods matters as much as the methods themselves.
Electrical Testing
In-circuit testing (ICT) uses a bed-of-nails fixture to test all nodes simultaneously, verifying component installation, value accuracy, and solder joint continuity — catching electrical defects that pass visual inspection. Flying probe testing and time-domain reflectometry (TDR) provide similar node-level verification without requiring a dedicated fixture, useful for lower-volume or prototype boards. Four-point resistance measurements isolate via and trace resistance to detect intermittent opens under thermal load.
X-Ray Inspection
X-ray inspection detects voids, cracks, and misalignments within PCB layers and components without opening the assembly. Advanced 3D CT X-ray systems can resolve down to single-digit micron features in BGA solder balls and IC bond wires, identifying opens, bridging, cracks, and voiding without compromising the part — often the deciding factor in whether further destructive analysis is warranted.
Cross-Sectioning (Microsectioning)
Cross-sectional analysis examines the internal structure of a PCB by embedding a sample in epoxy, grinding and polishing it to a smooth finish, then etching to reveal internal features under magnification. This reveals solder joint quality, plating thickness (commonly specified at a 25 micron minimum in vias), and the integrity of through-holes and traces — detail no non-destructive method can match, but at the cost of destroying the sample.
SEM/EDX and Thermal Analysis
Scanning electron microscopy (SEM) provides high-resolution imaging of PCB surfaces and cross-sections, often up to 100,000x magnification. Paired with energy-dispersive X-ray spectroscopy (EDX), it identifies elemental contamination — for example, chlorine residue from flux causing corrosion on a copper trace. IR thermography identifies hot spots during biased operation, flagging high-current paths, poor thermal management, or failing components before physical sectioning begins.
Environmental and Stress Testing
Thermal cycling (commonly -40°C to +125°C), humidity exposure (85% RH), and vibration testing per MIL-STD-202 replicate field conditions to expose latent defects such as via cracks from thermal fatigue, which may not appear under static electrical testing alone.
Industry Specifications Referencing PCB Failure Analysis
- IPC-A-610: acceptability criteria for electronic assemblies
- J-STD-001: soldering process requirements
- ANSI/ESD S20.20: ESD control program certification
- MIL-STD-202: environmental and mechanical test methods for electronic components
Conclusion
The strongest PCB failure investigations move deliberately from non-destructive to destructive methods — electrical testing and X-ray first, cross-sectioning and decapsulation only once the non-destructive evidence justifies it — because a rushed jump to sectioning can destroy the very defect the investigation was meant to characterize.
What are the main PCB testing methods? Common methods include visual inspection, automated optical inspection, X-ray inspection, in-circuit testing, flying-probe testing, functional testing, and electrical continuity testing. The selected method depends on the board design and production stage.
What is automated optical inspection? Automated Optical Inspection, or AOI, uses cameras and image-processing software to examine PCB surfaces. It can detect missing components, incorrect polarity, solder defects, misalignment, and dimensional irregularities.
Why is X-ray inspection used for PCBs? X-ray inspection reveals hidden solder joints beneath BGAs, QFNs, and other surface-mounted components. It can identify voids, bridges, insufficient solder, misalignment, and internal connection defects.
What is in-circuit testing? In-circuit testing checks individual components and electrical connections on an assembled PCB. Test probes contact designated points to identify shorts, opens, incorrect component values, and assembly errors.
What commonly causes PCB failure? Failures may result from solder defects, contamination, corrosion, thermal stress, moisture, vibration, component damage, poor design, manufacturing errors, or electrical overstress.
