ASTM A247 Graphite Microstructure in Cast Iron

Scope

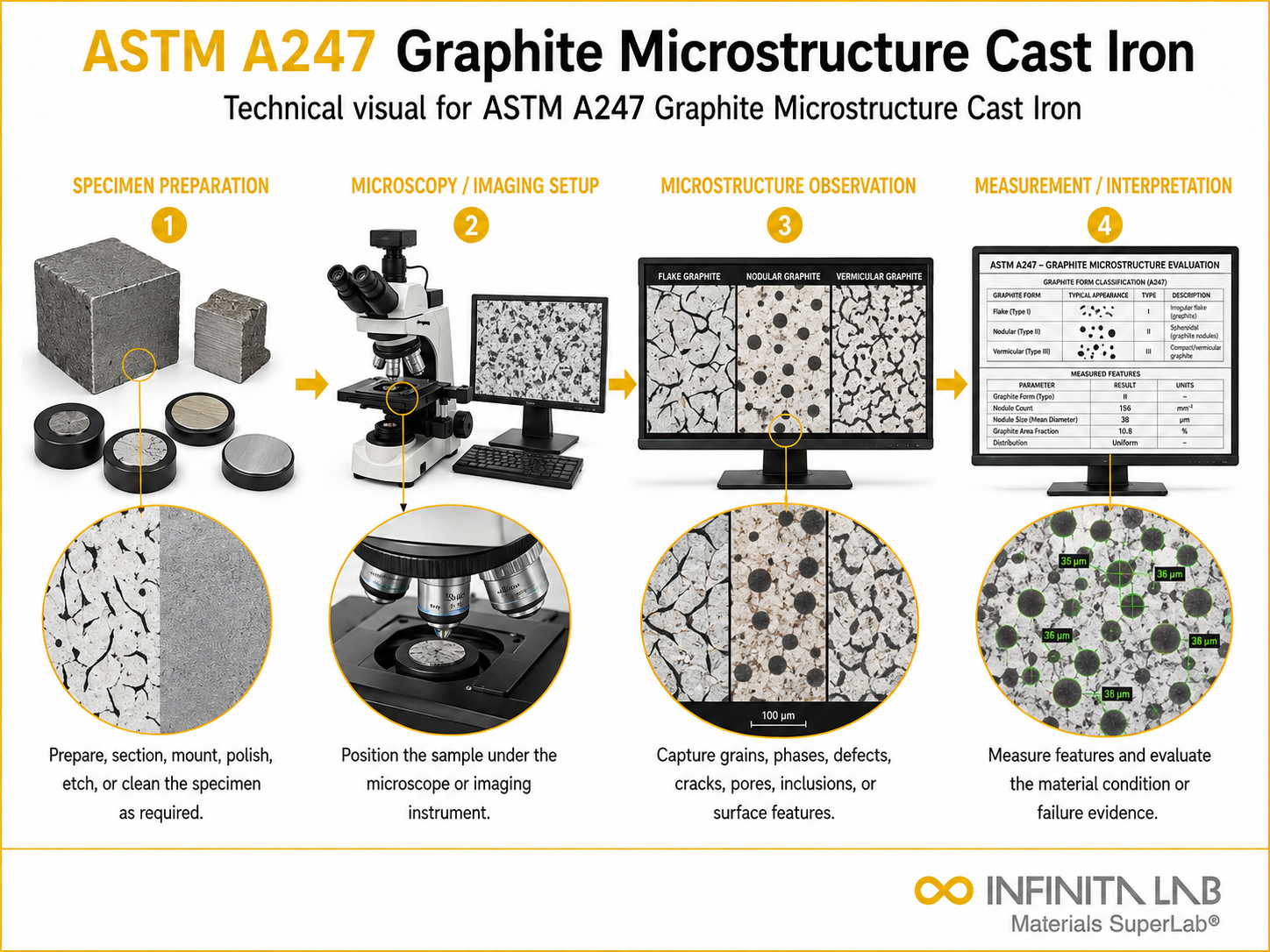

ASTM A247 covers the evaluation and classification of graphite microstructure in iron castings by comparison against standard reference charts, and includes procedures for determining nodularity in ductile iron. The evaluation is performed on a polished, unetched metallographic specimen viewed under an optical microscope.

Key aspects of the test scope include:

• Graphite form (type) – classification of graphite shape against the standard types (e.g., Type I–VII), spanning nodular/spheroidal, intermediate, and flake forms
• Graphite size – classification of graphite particle size against the standard size reference charts
• Graphite distribution – for flake graphite (gray iron), classification of the distribution pattern (e.g., Types A through E) describing how the flakes are arranged
• Nodularity determination – for ductile iron, two procedures are provided: one assessing nodularity by comparison to reference charts, and one based on quantitative measurement; nodularity is reported as a percentage
• Applicable materials – all iron-carbon alloys containing graphite, including gray iron, ductile (nodular) iron, and compacted graphite iron
• Specimen condition – polished, unetched cross-section prepared by standard metallographic methods

Applications

• Foundry quality control – routine evaluation of graphite form, size, distribution, and nodularity on production castings to confirm the microstructure matches the target for the intended iron grade
• Ductile iron nodularity verification – measuring nodularity as a key acceptance parameter for ductile iron castings, since nodularity directly governs the strength and ductility that define this material
• Casting acceptance and certification – providing standardized microstructure documentation to support casting acceptance against customer or specification requirements
• Gray iron characterization – classifying flake graphite type and distribution in gray iron, which influences strength, machinability, and damping capacity
• Process control and troubleshooting – relating microstructure observations (e.g., degraded nodularity, undesirable flake distribution) back to melt treatment, inoculation, and cooling conditions in the foundry
• Failure analysis – investigating whether an abnormal graphite microstructure contributed to a casting failure, such as poor nodularity reducing the strength of a ductile iron part
• Material development – evaluating the effect of composition, inoculation, and processing changes on the resulting graphite microstructure

Benefits

• Standardizes a description that directly governs properties – graphite form, size, and distribution control the mechanical behavior of cast iron; ASTM A247 gives a consistent, communicable way to describe and report it
• Provides nodularity as a clear quality metric for ductile iron – the nodularity percentage is one of the most important single indicators of ductile iron quality, and the method gives both comparison and quantitative procedures to determine it
• Enables consistent reporting between foundries and customers – by referencing standard charts, the method ensures a microstructure description means the same thing to the producer and the customer
• Applicable across all graphitic cast irons – gray, ductile, and compacted graphite irons can all be characterized within the same standard framework
• Links microstructure to process – the observed graphite structure is a direct readout of how well melt treatment and inoculation were performed, making the method valuable for process control as well as acceptance
