Advantages of Scanning Acoustic Tomography (SAT) for Material Inspection
What Is Scanning Acoustic Tomography?

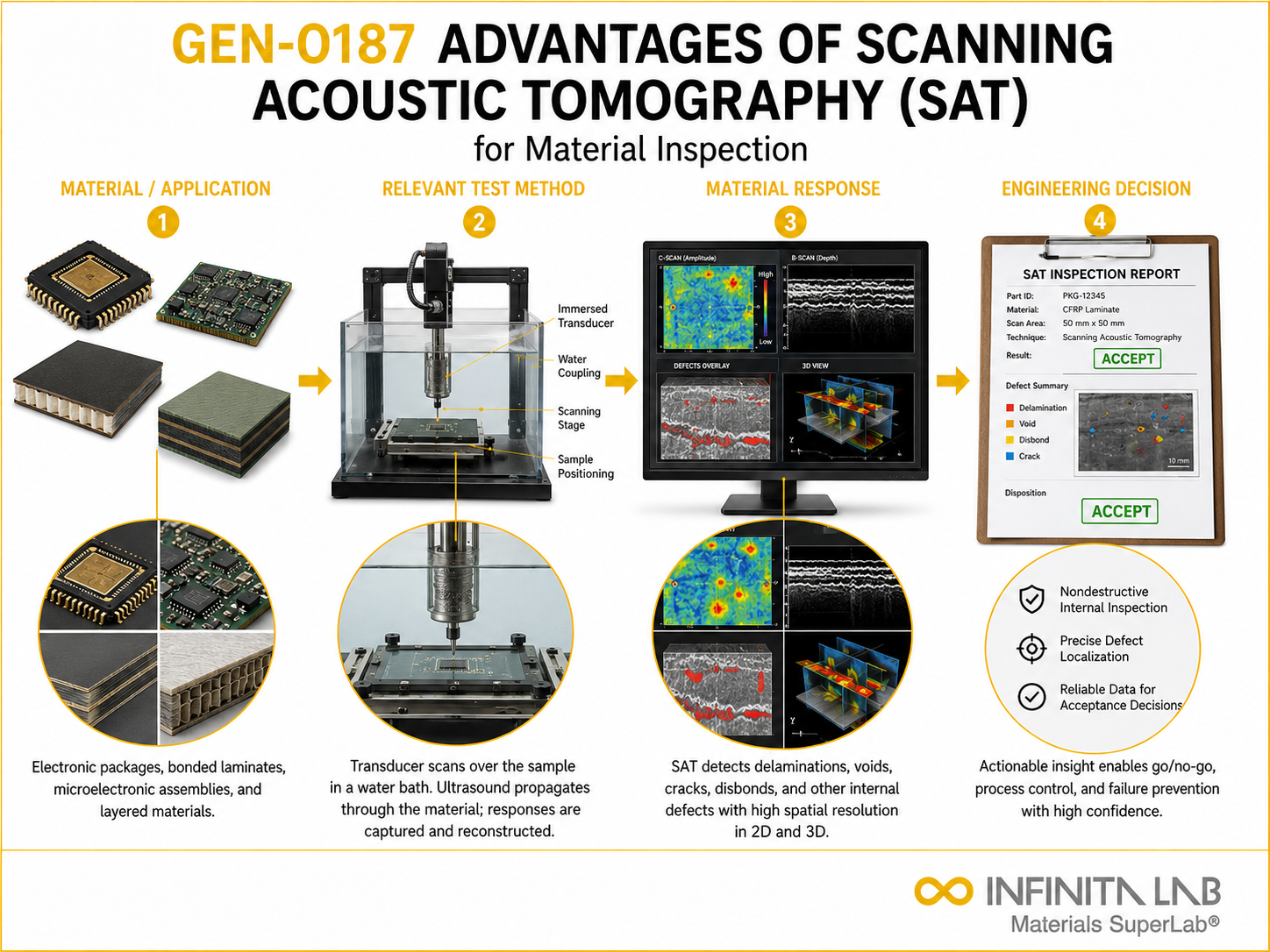

Scanning Acoustic Tomography (SAT) is a high-resolution non-destructive testing technique that uses focused ultrasonic waves to generate two-dimensional C-scan images of internal features, defects, and interface conditions within electronic components, semiconductor packages, and advanced materials — without any sample preparation or physical damage. SAT is the production-oriented evolution of scanning acoustic microscopy (SAM), designed for automated, high-throughput inspection in the semiconductor, aerospace, electronics, and medical device industries.
Unique Advantages of Scanning Acoustic Tomography
Complete Internal Visibility Without Sectioning
SAT reveals every internal interface layer of a complex multilayer package — die-attach, underfill, molding compound, substrate — in a single non-destructive inspection session. This visibility, previously achievable only by destructive cross-sectioning (which destroys the component), allows 100% inspection of production lots before shipment and enables failed units to be preserved intact for subsequent failure analysis.
Simultaneous Multi-Layer Imaging
Modern SAT systems offer multi-gate imaging — capturing C-scan amplitude images at multiple user-defined depth gates simultaneously during a single raster scan. A flip-chip BGA package can be imaged at the solder bump layer, underfill layer, die-attach layer, and package body interface in one pass, with total scan time of 10–30 minutes per panel depending on resolution and area.
Quantitative Void and Delamination Measurement
SAT provides quantitative defect metrics — void area percentage, delamination extent (mm²), and maximum single void dimension — through integrated image analysis software. These metrics are directly compared to IPC-7095, JEDEC, and customer-specific acceptance criteria for automated pass/fail reporting. Statistical process control (SPC) of die-attach voiding trends enables early detection of solder paste printing, dispensing, or reflow process excursions.
Non-Contact, Non-Contaminating Inspection
SAT uses deionized water as acoustic coupling medium — no physical contact, no ionizing radiation, no surface marking. After inspection, components are simply rinsed and dried. This makes SAT compatible with 100% production screening of moisture-sensitive devices (MSL 1–6) and fine-pitch packages that cannot tolerate mechanical contact.
Failure Analysis Preservation
When electrical test detects a failed unit, SAT provides non-destructive internal imaging that guides subsequent destructive failure analysis — precisely locating delaminations, voids, or cracks before cross-sectioning. This dramatically reduces the time and material wasted in trial-and-error cross-sectioning of failed packages.
Standards and Industry Requirements
- JEDEC JESD22-B112: Board level drop test — SAT verification of delamination
- JEDEC JESD22-A113: Preconditioning — SAT before and after moisture/reflow stress
- AEC-Q100: Automotive IC qualification — SAT for die-attach and package inspection
- IPC-7095: BGA design and assembly — SAT void acceptance criteria
Conclusion
Scanning Acoustic Tomography is a highly effective non-destructive testing technique for detecting internal defects such as voids, delamination, and cracks with high precision. Its ability to provide detailed subsurface imaging without damaging the sample makes it invaluable for quality assurance and reliability assessment. This technique enhances defect detection accuracy, supports failure analysis, and ensures the integrity of critical components across industries.
Why Choose Infinita Lab for Scanning Acoustic Tomography?
Infinita Lab addresses the most frustrating pain points in SAT inspection: complexity, coordination, and confidentiality. From pre-stress baseline imaging to post-qualification failure analysis, we orchestrate every detail — fast, seamlessly, and behind the scenes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090. [Request a Quote]
Frequently Asked Questions
What are the main advantages of Scanning Acoustic Tomography in NDT? Scanning Acoustic Tomography offers high-resolution subsurface imaging, enabling detection of internal defects such as voids, cracks, and delamination. It is non-destructive, highly accurate, and suitable for evaluating complex materials and electronic components.
How does Scanning Acoustic Tomography work? It uses high-frequency ultrasonic waves that travel through materials and reflect from internal features. These signals are captured and processed to generate detailed images, helping identify hidden defects without damaging the sample.
What types of defects can be detected using this technique? It can detect voids, cracks, delamination, inclusions, and bonding defects. These imperfections are identified through variations in acoustic signal reflections, providing clear insights into internal material integrity.
How does Scanning Acoustic Tomography support quality control? It supports quality control by ensuring defect-free materials and components. Regular inspection helps maintain manufacturing standards, reduce rejects, and ensure compliance with industry requirements.
Is Scanning Acoustic Tomography suitable for small components? Yes, it is highly suitable for small and delicate components. Its high-resolution imaging capability allows precise inspection of microstructures, making it ideal for semiconductor and electronic device analysis.
