Characterization Techniques for Thin Film Organic Coatings: Methods & Metrology

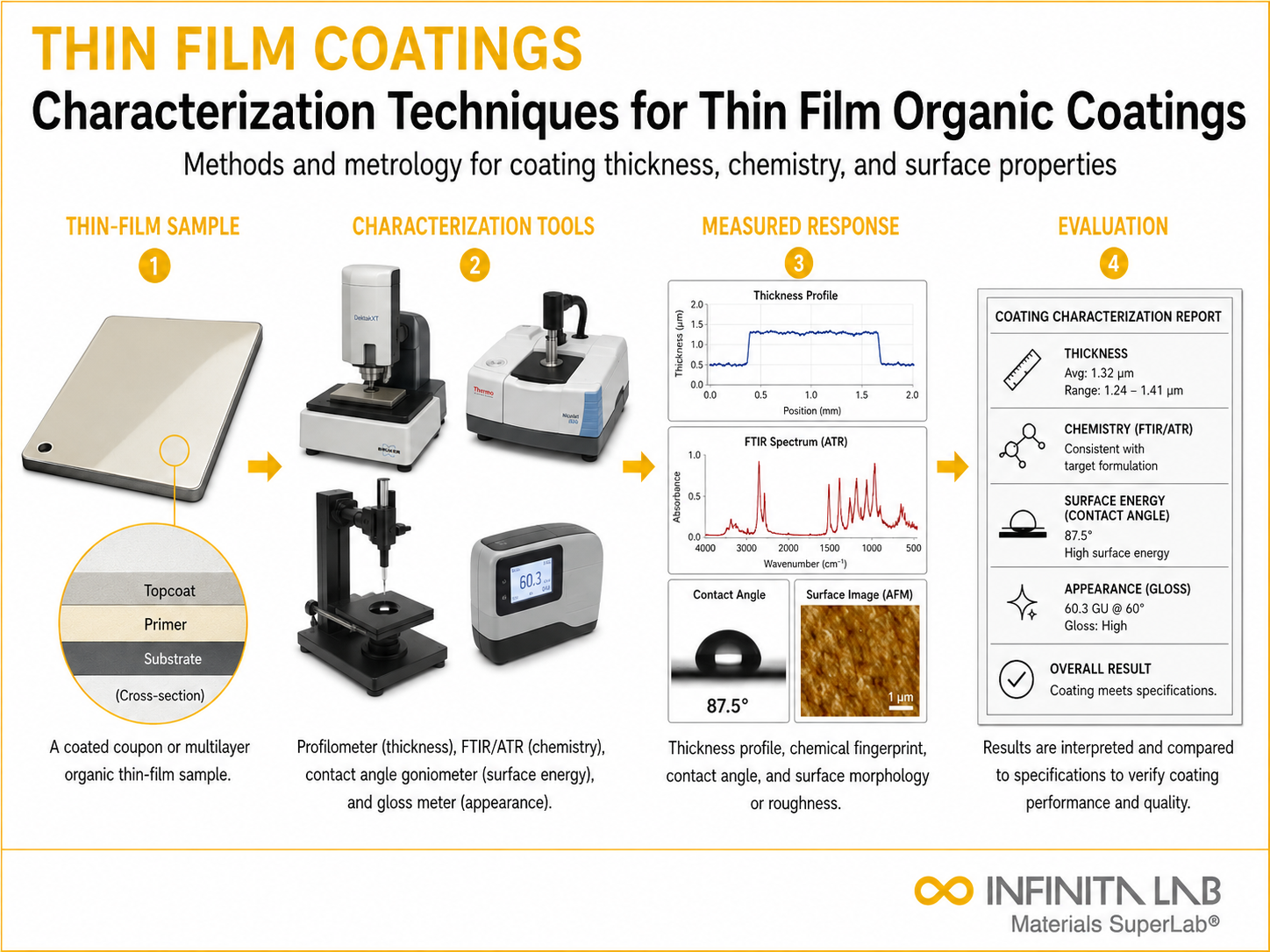

Thin film organic coatings — ranging from nanometer-thick self-assembled monolayers to multi-micron automotive clearcoats and protective lacquers — are ubiquitous in modern manufacturing. They provide corrosion protection, decorative appearance, functional surface properties (hydrophobicity, adhesion promotion, lubricity), and barrier performance across the coatings & surface science industry. Characterising these coatings accurately — measuring thickness, adhesion, morphology, chemical composition, and mechanical properties — requires a sophisticated toolkit of analytical and metrology techniques tailored to the unique challenges of thin film systems.

Why Thin Film Characterisation Is Challenging

Thin film coatings present unique analytical challenges compared to bulk materials:

• Extreme thinness — films from 1nm to 10µm thick are too thin for conventional bulk measurement techniques
• Substrate influence — measured properties reflect a mixture of film and substrate responses unless depth-resolved techniques are used
• Interfacial phenomena — adhesion, delamination, and corrosion initiate at film-substrate interfaces that are difficult to access non-destructively
• Composition gradients — many functional coatings have deliberately graded compositions or contain multiple stacked layers, each requiring independent characterisation

Film Thickness Measurement Techniques

Ellipsometry

Ellipsometry measures changes in the polarisation state of light reflected from a film surface to determine optical constants (refractive index, extinction coefficient) and film thickness simultaneously. Spectroscopic ellipsometry (SE) covers wavelengths from UV to near-IR, enabling thickness measurement from 1nm to several micrometres with sub-nanometer precision.

ASTM E2336 — Standard Guide for Measurement of Specimen Dimensions for Wear Testing Using a Contact Profilometer — provides adjacent guidance on surface measurement, and ellipsometry is widely used in the semiconductor and optical coating industries for thin film metrology.

X-Ray Reflectometry (XRR)

XRR is a non-destructive technique for measuring the thickness, density, and interfacial roughness of ultra-thin films (1–200nm). Grazing-incidence X-rays reflected from the film surface and film-substrate interface produce interference fringes whose spacing directly encodes film thickness. XRR is particularly valuable for self-assembled monolayers, plasma-deposited films, and multi-layer barrier coatings.

Profilometry

Stylus profilometry measures surface topography by dragging a fine-tipped probe across a surface. Step-height measurements at masked film edges provide straightforward thickness values. Optical profilometry (white-light interferometry) achieves similar measurements without surface contact — critical for soft organic coatings that are damaged by stylus contact.

Adhesion Testing for Thin Film Coatings

Cross-Cut Adhesion Test (ASTM D3359 / ISO 2409)

A lattice of cuts through the coating is made using a cross-cut tool, followed by application and rapid removal of a standardised pressure-sensitive tape. Adhesion is rated on a 0–5 scale based on the area of coating removed. This is the most widely used production quality control adhesion test for thin organic coatings on rigid substrates.

Pull-Off Adhesion Test (ASTM D4541 / ISO 4624)

Aluminium or steel dollies are bonded to the coating surface, and a tensile load is applied until adhesion failure. The failure load and mode (adhesive failure at the film-substrate interface vs. cohesive failure within the film) provide quantitative adhesion data. Pull-off testing is especially valuable for thicker coatings and for field testing of applied coatings.

Scratch Testing (ASTM C1624)

Scratch testing applies progressively increasing normal load to an indenter traversing the coated surface. The critical loads at which coating cracking, delamination, or substrate exposure occur define the practical adhesion window for the coating system. Scratch testing is particularly relevant for hard, thin coatings (DLC, SiO₂, TiN) but is also applied to organic coatings.

Chemical Composition Analysis

X-Ray Photoelectron Spectroscopy (XPS / ESCA)

XPS provides elemental composition and chemical bonding state information from the outermost 5–10nm of a surface. Depth profiling by alternating ion beam sputtering and XPS analysis reveals composition gradients through the film thickness — critical for multi-layer coatings and for understanding oxidation or contamination at buried interfaces.

Fourier Transform Infrared Spectroscopy (FTIR) — Reflection Modes

ATR-FTIR (attenuated total reflectance) provides molecular composition information from the near-surface region of organic coatings. Grazing-angle FTIR extends sensitivity to ultra-thin films. Chemical identification of binders, crosslinkers, pigments, and degradation products is essential for formulation verification and aged coating analysis.

Time-of-Flight Secondary Ion Mass Spectrometry (ToF-SIMS)

ToF-SIMS provides exceptional surface sensitivity (outermost 1–2 monolayers) and molecular mass resolution for organic thin films. Depth profiling enables 3D chemical mapping through film thickness at sub-nanometer depth resolution — making ToF-SIMS the most powerful technique for ultra-thin organic film characterisation.

Conclusion

Characterisation techniques for thin film organic coatings are essential in understanding and optimising their structural, optical, electrical, and mechanical properties. The choice of technique depends on the property of interest and the application’s specific requirements. Combining multiple characterisation methods often provides a much better understanding of the material’s performance and further aids in advancing technologies like organic electronics, photovoltaics, and protective coatings. The balance between a method’s precision, cost, and applicability will guarantee effective development and quality assurance of thin film coatings.
