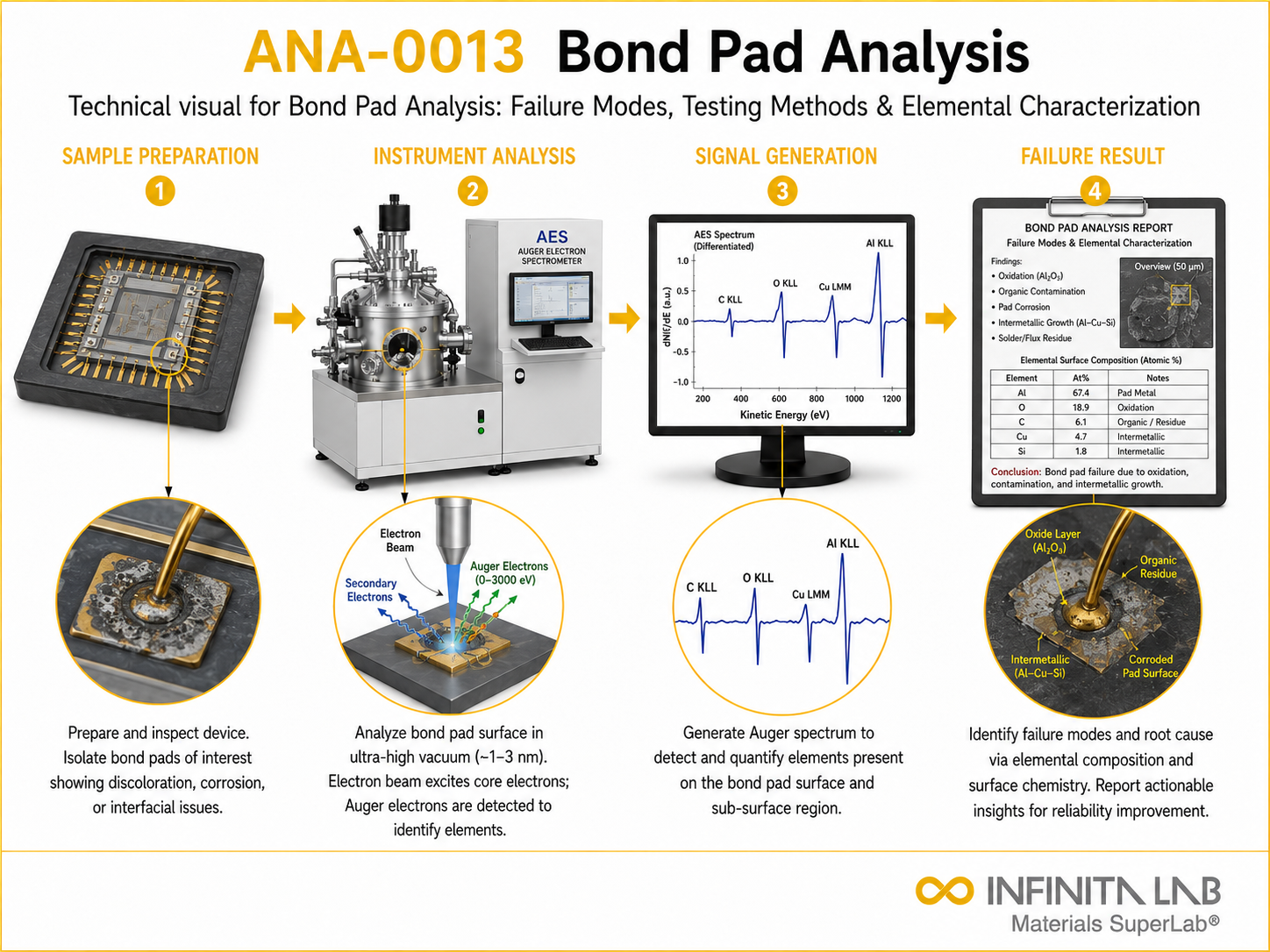

Representative Infinita Engineering Visual explaining the four-step workflow for Bond Pad Analysis: Failure Modes, Testing Methods & Elemental Characterization.What Is Bond Pad Analysis?
Bond pad analysis is the systematic characterization of the metallic contact pads on semiconductor die — the interface between the silicon chip and its external connections through wire bonds, flip-chip bumps, or probe contacts. Bond pads are the final electrical connection point before the chip is enclosed in its package, making their metallurgical condition, surface chemistry, and mechanical integrity critical to device yield, reliability, and long-term performance. Bond pad analysis is a routine discipline in the semiconductor, microelectronics, and LED manufacturing industries, applied during process development, failure investigation, and qualification testing.
Bond Pad Metallurgy
Aluminum Bond Pads
Conventional bond pads are aluminum alloy — typically Al-1%Si, Al-0.5%Cu, or Al-1%Si-0.5%Cu — deposited by PVD sputtering with a thickness of 500–1,500 nm. Copper addition improves electromigration resistance in metal lines feeding the pad. Silicon addition prevents silicon precipitation at grain boundaries during thermal processing.
Gold and Copper Bond Pads
Advanced packages use gold (Au) or copper (Cu) bond pads for wire bonding with Au or Cu wires to form ball bonds. Cu bond pads require copper wire bonding under nitrogen or forming gas atmosphere to prevent oxidation during bonding. Gold-capped aluminum pads eliminate native oxide variability but add process cost.
Under Bump Metallization (UBM)
For flip-chip packages, an under-bump metallization (UBM) stack — typically Ti/Ni/Au, TiW/Cu, or Al/NiV/Cu — is deposited over the aluminum pad to provide solderable surfaces for solder-bump attachment. UBM composition and thickness are critical — an insufficient Ni barrier can lead to Kirkendall void formation at the Sn-Cu interface during solder joint aging.
Bond Pad Failure Mechanisms
Cratering (Silicon Nodule Cracking)
Cratering occurs when the ultrasonic energy and force during wire bonding fracture the silicon substrate beneath the pad metallization, leaving a hemispherical cavity. It is caused by excessive bonding energy, low pad stiffness, or mechanically weak pad stack designs. SEM cross-section and FIB analysis definitively diagnose cratering.
Intermetallic Compound (IMC) Growth
At gold wire-aluminum pad interfaces, Au-Al intermetallics (Au₄Al, Au₂Al, AuAl₂) form during bonding and grow during thermal aging. The purple plague (AuAl₂) and white plague (Au₄Al) intermetallics are mechanically brittle and exhibit high electrical resistance, leading to bond lift, high contact resistance, and open circuits under thermal stress.
Corrosion and Ionic Contamination
Aluminum pad surfaces exposed to moisture and ionic contaminants (chloride and phosphate from die-processing chemicals) develop galvanic corrosion pits that increase contact resistance and reduce bondability. XPS surface analysis and SEM-EDS reveal contamination chemistry; AES depth profiling quantifies oxide thickness.
Pad Peeling and Metal Lift
Inadequate adhesion between the metal pad stack and the underlying passivation/intermetal dielectric layers causes pad peeling under wire-pull or ball-shear stress. It is diagnosed using cross-sectional SEM and FIB-TEM analyses of the adhesion interface.
Conclusion
Analysis of the bond pad is important to ensure electrical connections in semiconductor devices. It helps to evaluate the metallurgy of the bond pad and the surface condition to improve process control and reliability. It identifies problems such as cratering, corrosion, and intermetallic formation using techniques including SEM, FIB, and surface analysis. This improves the yield and reliability of microelectronic and semiconductor devices.
Why Choose Infinita Lab for Bond Pad Analysis?
Infinita Lab is a leading provider of bond pad analysis and semiconductor failure analysis services, with 2,000+ accredited labs across the USA, offering wire pull, ball shear, SEM-EDS, AES, XPS, and FIB-TEM analyses, along with comprehensive project management.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090. [Request a Quote]
Frequently Asked Questions
What is the wire bond pull test and what does it measure? The wire bond pull test (MIL-STD-883 Method 2011, ASTM F459) hooks a probe under a wire loop and pulls until failure, recording the force and failure mode. Minimum pull force specifications ensure adequate bond strength. Failure at the wire midpoint (wire break) indicates acceptable bonding; failure at the ball bond (cratering, pad lift) indicates a bond pad or bonding process problem.
What is the ball shear test and when is it used? The ball shear test (MIL-STD-883 Method 2019, ASTM F1269) pushes a shear tool horizontally against the ball bond at the pad surface, measuring the force required to shear the ball from the pad. It directly evaluates the gold or copper ball-to-pad bond quality — detecting cratering, IMC embrittlement, and pad contamination that the pull test may miss.
What is the purple plague in aluminum-gold wire bonds? Purple plague is the intermetallic compound AuAl₂ (purple-colored) that forms at gold wire-aluminum pad interfaces during thermal aging. It is mechanically brittle and electrically resistive — causing bond failures in devices exposed to elevated temperatures. Low-temperature bonding, minimizing heat exposure after bonding, and using Cu wire instead of Au wire are mitigation strategies.
How is Auger Electron Spectroscopy (AES) used in bond pad analysis? AES provides elemental depth profiling of bond pad surfaces at nanometer depth resolution — quantifying native aluminum oxide thickness, detecting ionic contamination layers, and profiling intermetallic compound composition and thickness in cross-sectioned bond interfaces. It is the primary surface analytical technique for diagnosing bondability problems related to pad surface chemistry.
What causes bond pad corrosion and how is it prevented? Bond pad corrosion is caused by chloride ions (from plasma etch residues or die saw coolant) reacting with aluminum in the presence of moisture — forming aluminum chloride that hydrolyzes to aluminum hydroxide, pitting the pad surface and increasing resistivity. Prevention involves post-etch cleaning, plasma passivation, hermetic packaging, and proper die storage humidity control.
