Melt Flow Rate Testing for Polymers: Method, Standards & Quality Control

Written by Vishal Ranjan | Updated: May 17, 2026

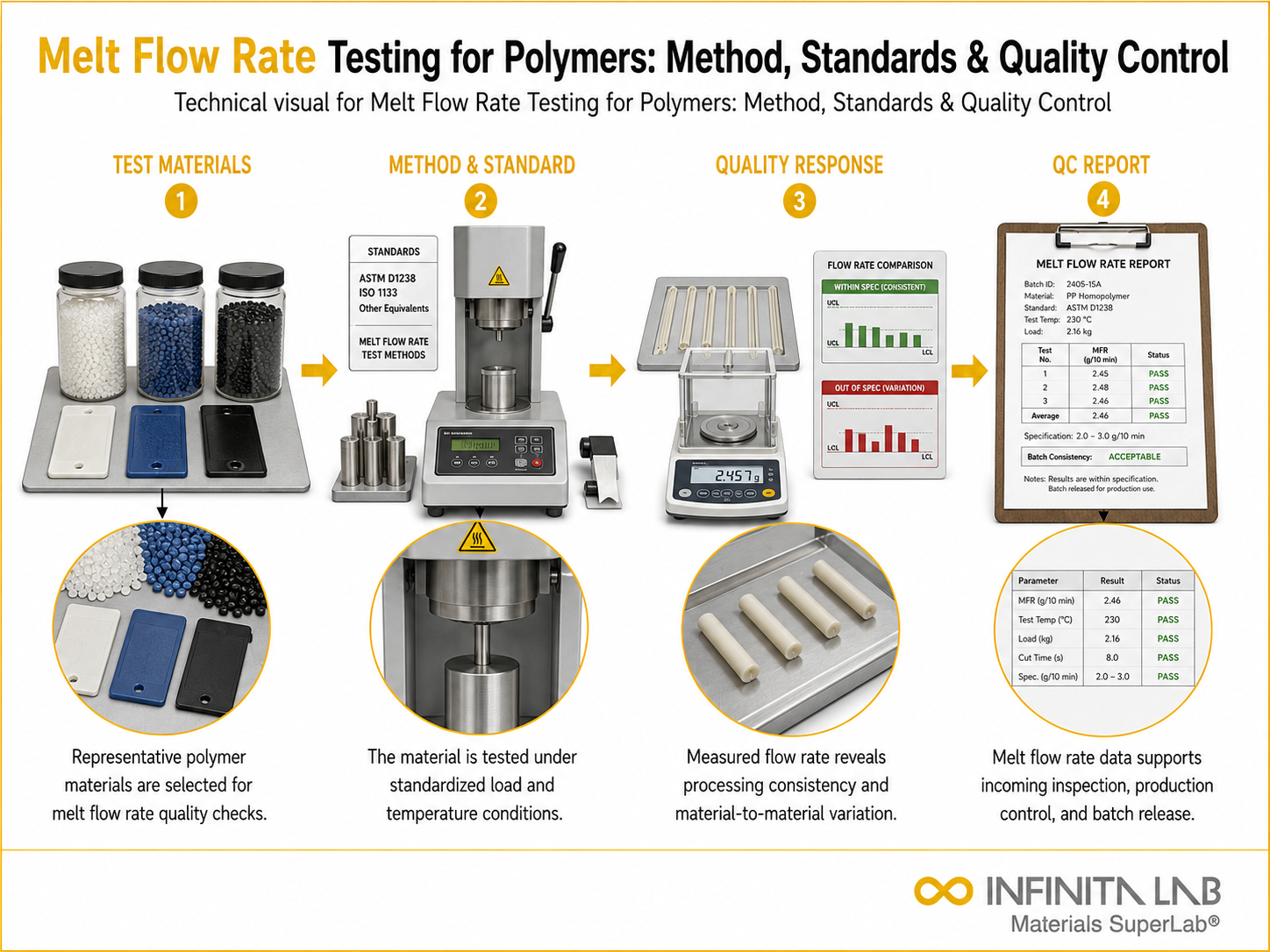

What Is Melt Flow Rate?

Melt Flow Rate (MFR) is a standardized measure of the mass flow rate of a thermoplastic polymer through a defined capillary under specific temperature and load conditions. Expressed in grams per 10 minutes (g/10 min), MFR is the most widely used single-parameter indicator of polymer melt viscosity and molecular weight in production quality control and incoming material inspection.

While Blog 85 introduced the MFI/MFR measurement method in detail, this guide focuses on how polymer engineers and processors use MFR data in practice—from supplier qualification and specification writing to troubleshooting processing problems across the injection molding, extrusion, blow molding, and fiber industries.

Writing MFR Specifications: Best Practices

Define the Test Condition Completely

Always specify the complete MFR test condition: temperature and load (e.g., “MFR = 8–12 g/10 min per ASTM D1238, 230°C/2.16 kg for polypropylene”). An incomplete specification creates supplier confusion and allows non-conforming material to pass on a technicality.

Set Realistic Tolerance Windows

The width of the MFR specification window must balance two competing needs:

Narrow window: Better process consistency; more lots rejected; higher cost
Wide window: More material variation; more process adjustment required

Typical practical MFR tolerance windows are ±15–25% of the target value. For injection molding grades, a range such as “8–14 g/10 min” at a target of ~11 g/10 min is reasonable.

Specify Both Upper and Lower Limits

Specifying only a maximum MFR allows low-MFR (high-MW) material that may not fill thin-wall cavities. Specifying only a minimum allows high-MFR (low-MW) material with inadequate impact resistance. Always specify both limits for injection molding and extrusion applications.

Using MFR Data to Troubleshoot Processing Problems

Short Shots in Injection Molding

Cause: MFR too low (viscosity too high) for the tool and machine combination. Check incoming material MFR against specification. If within spec but still short-shotting, increase melt temperature or injection speed, or consult supplier about a higher-MFR grade.

Flash in Injection Molding

Cause: MFR too high (viscosity too low) allowing melt to penetrate parting line gaps. Verify MFR is within spec. Consider reducing melt temperature or switching to a lower-MFR grade.

Sag in Extrusion Blow Molding

Cause: MFR too high (insufficient melt strength) causing the parison to sag before the mold closes. Parison programming or switching to a lower-MFR (higher-MW) grade addresses this.

Draw Resonance in Film Extrusion

Draw resonance (periodic thickness variation in blown film) is often associated with narrow molecular weight distribution—a condition that correlates with specific MFR ratio values (low MFR ratio = narrow MWD = prone to draw resonance).

MFR and Recycled Polymer Quality

In circular economy programs, MFR monitoring of recycled and reprocessed polymer is a critical quality indicator:

Degradation tracking: Each reprocessing cycle degrades the polymer (chain scission), increasing MFR. Monitoring MFR tracks the cumulative degradation through recycling loops.
Blend detection: Addition of off-spec material or blending of different grades produces unexpected MFR values.
Specification compliance: Recycled polymer suppliers must demonstrate that regrind and recycled pellets meet MFR specifications comparable to virgin material for the intended application.

MFR and Molecular Weight: A Practical Correlation

For a single polymer type and grade family, MFR correlates inversely with weight-average molecular weight (Mw). The relationship is approximately:

MFR ∝ 1/Mw^(3.4)

This strong dependence means small molecular weight changes produce large MFR changes—MFR is a sensitive, amplified indicator of molecular weight. However, this relationship is grade-family specific; comparing MFR values between different polymer types or between grades with different molecular weight distributions is not meaningful.

Why Choose Infinita Lab for MFR Testing and Polymer Characterization?

Infinita Lab offers comprehensive polymer characterization services—MFR, GPC/SEC molecular weight distribution, DSC thermal analysis, and rheology—through its nationwide accredited laboratory network. Our polymer specialists provide expert interpretation of MFR data in the context of processing and performance requirements.

Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote

Frequently Asked Questions (FAQs)

Can two polymers with the same MFR have different processing behavior?

Yes. MFR is a single-point viscosity measurement at a specific shear stress. Two polymers with identical MFR but different molecular weight distributions (MWD) will have different shear-thinning behavior at the higher shear rates of injection molding or extrusion. The polymer with broader MWD will thin more at high shear rates, filling more easily in thin-wall sections despite identical MFR.

How does MFR relate to gel permeation chromatography (GPC) molecular weight data?

GPC (SEC) provides the complete molecular weight distribution (Mn, Mw, Mz, PDI). MFR is primarily governed by Mw—higher Mw gives lower MFR. For the same Mw, a broader PDI gives higher MFR because the low-MW tail lubricates the high-MW chains. MFR is a useful QC surrogate for Mw but does not provide the full molecular architecture information available from GPC.

Why do some polymer datasheets list two MFR values for the same grade?

Some datasheets list MFR at two different loads (e.g., 2.16 kg and 21.6 kg) to characterize the shear-thinning behavior through the MFR ratio. Others list MFR at both the standard condition and a secondary condition used in specific industries (e.g., both ISO 1133 and ASTM D1238 conditions for global market products). Always verify which condition applies to your process simulation.

What causes MFR to increase during storage of polymer pellets?

Several mechanisms can increase MFR during storage: thermal oxidation (especially if pellets were hot when bagged), moisture hydrolysis (hygroscopic polymers like PA and PC without adequate drying), and UV degradation of unstabilized polymers in transparent bags exposed to sunlight. Proper storage conditions—cool, dry, dark, in sealed containers—prevent these degradation pathways.

Is MFR a sufficient quality specification for high-performance polymer applications?

For commodity applications (film, pipe, blow molding), MFR combined with density is often sufficient for routine QC. For high-performance engineering applications (automotive structural parts, medical devices, aerospace composites), MFR alone is insufficient—full mechanical property certification (tensile, impact, fatigue), thermal characterization (DSC, TGA), and molecular weight distribution (GPC) are required to fully characterize the material.
