Viscosity Measurement: Methods, Units, and Instruments

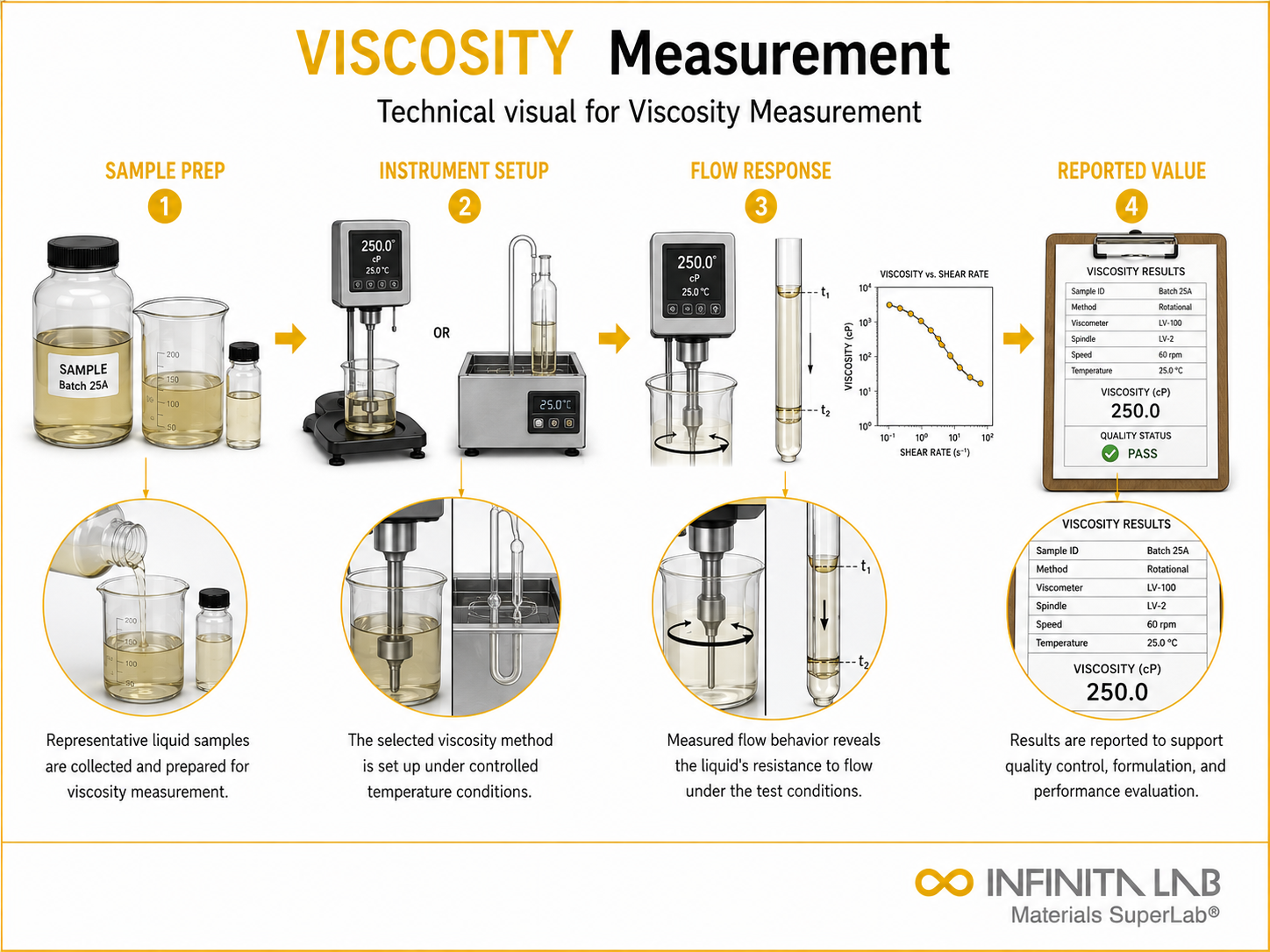

Representative Infinita Engineering Visual explaining the four-step workflow for Viscosity Measurement.What Is Viscosity Measurement?
Viscosity measurement quantifies a fluid’s resistance to flow — mathematically, the ratio of shear stress to shear rate. Newtonian fluids (like water) show constant viscosity regardless of shear rate; non-Newtonian fluids either shear-thin (viscosity drops as shear rate increases) or, less commonly, shear-thicken. Selecting the right instrument depends heavily on which behavior the fluid exhibits.
Instrument Types
- Capillary viscometers: measure flow time or pressure drop as fluid passes through a calibrated capillary, using the Hagen-Poiseuille relationship. Well suited to Newtonian fluids of low-to-moderate viscosity, but not appropriate for non-Newtonian fluids since shear stress cannot be varied independently.
- Rotational viscometers: measure the torque needed to rotate a spindle or cylinder within the fluid at controlled speeds. Best suited for non-Newtonian fluids since shear rate can be varied directly, revealing how viscosity changes with applied shear.
- Falling-ball / falling-sphere viscometers: measure the time for a sphere of known density to fall through the fluid under gravity.
- Rheometers: the most versatile instruments, available in rotational (shear) and capillary extrusion configurations, capable of capturing full flow curves and viscoelastic behavior rather than a single-point viscosity value.
Test Procedure (General, Rotational)
- Select a spindle/geometry and rotational speed range appropriate to the expected viscosity and shear rate of interest
- Load the sample into the measurement geometry, controlling temperature via a calibrated temperature-control unit
- Apply a controlled rotational speed or torque and record the resulting torque or displacement
- Repeat across multiple shear rates to characterize non-Newtonian behavior, if present
- Calculate viscosity from the torque-speed relationship using the instrument’s calibrated geometry factors
Selection Guidance
Orifice-type viscometers favor robustness and simplicity over precision — appropriate where ease of use matters more than accuracy. Capillary viscometers, in contrast, require precise calibration since viscosity is proportional to the fourth power of capillary diameter, meaning small dimensional errors compound significantly in the result.
Industry Specifications Referencing Viscosity Measurement
- ASTM D446: glass capillary kinematic viscometer calibration
- ASTM D2171: vacuum/pressure capillary viscometry for higher-shear applications
- Common applications: polymer melts, coatings, biopharmaceutical formulations, lubricants
Conclusion
The right viscometer is the one that matches your fluid’s flow behavior — forcing a non-Newtonian fluid through a capillary viscometer, or a low-viscosity Newtonian fluid onto a high-torque rotational rheometer, produces technically valid-looking numbers that don’t actually characterize the material correctly.
What is the difference between dynamic and kinematic viscosity? Dynamic viscosity measures resistance to flow under an applied force. Kinematic viscosity is dynamic viscosity divided by the fluid’s density and describes flow under gravity.
What units are used to measure viscosity? Dynamic viscosity is commonly reported in pascal-seconds (Pa·s), millipascal-seconds (mPa·s), or centipoise (cP). Kinematic viscosity is reported in square millimetres per second (mm²/s) or centistokes (cSt).
Which instruments are used for viscosity measurement? Common instruments include rotational viscometers, capillary viscometers, falling-ball viscometers, flow cups, and rheometers. The appropriate instrument depends on the material and required measurement range.
How does a rotational viscometer work? A rotational viscometer measures the force required to rotate a spindle within a fluid. The resistance experienced by the spindle is used to calculate the fluid’s viscosity.
Why is temperature control important? Viscosity can change significantly with temperature. Most liquids become less viscous when heated, so testing must be performed at a controlled and clearly reported temperature.
