Carbon Black Particle Size Distribution: Testing Methods & Analytical Standards

Carbon black is one of the most widely used industrial materials in the world — a critical reinforcing agent in rubber compounds, a pigment in plastics and coatings, and a conductive additive in batteries and electronic components. Among all the physical properties that govern carbon black performance, particle size distribution stands out as the single most influential parameter affecting rubber reinforcement efficiency, pigment dispersion quality, and electrical conductivity. In the carbon & rubber industry, accurate characterisation of carbon black particle size distribution is essential for quality control, grade verification, and compound optimisation.

What Is Carbon Black and Why Does Particle Size Matter?

Carbon black consists of near-spherical primary particles of elemental carbon, typically ranging from 10 to 500 nanometers in diameter, arranged into aggregates and agglomerates. The primary particle size — and its distribution across the population — directly governs:

• Reinforcement efficiency in rubber — smaller particles provide more surface area per unit mass, greater polymer-filler interaction, and higher tensile and tear strength
• Jetness and tinting strength in pigment applications — finer particles produce deeper blacks and higher tinting power
• Electrical and thermal conductivity — particle size controls the percolation network efficiency in conductive polymer composites
• Dispersibility — finer, higher-structure grades require more intensive mixing energy to achieve uniform dispersion

Primary Particles, Aggregates, and Agglomerates

Understanding carbon black morphology requires distinguishing three structural levels:

Primary particles — the individual spherical units formed during combustion, ranging from 10nm (furnace blacks like N110) to 500nm (thermal blacks). Primary particle size is the most fundamental morphological parameter.

Aggregates — fused assemblies of primary particles, formed during the manufacturing process. These are the smallest dispersible units in rubber mixing and cannot be broken apart without chemical means.

Agglomerates — loose assemblies of aggregates held together by van der Waals forces. These break apart during mixing and disperse as aggregate-level units.

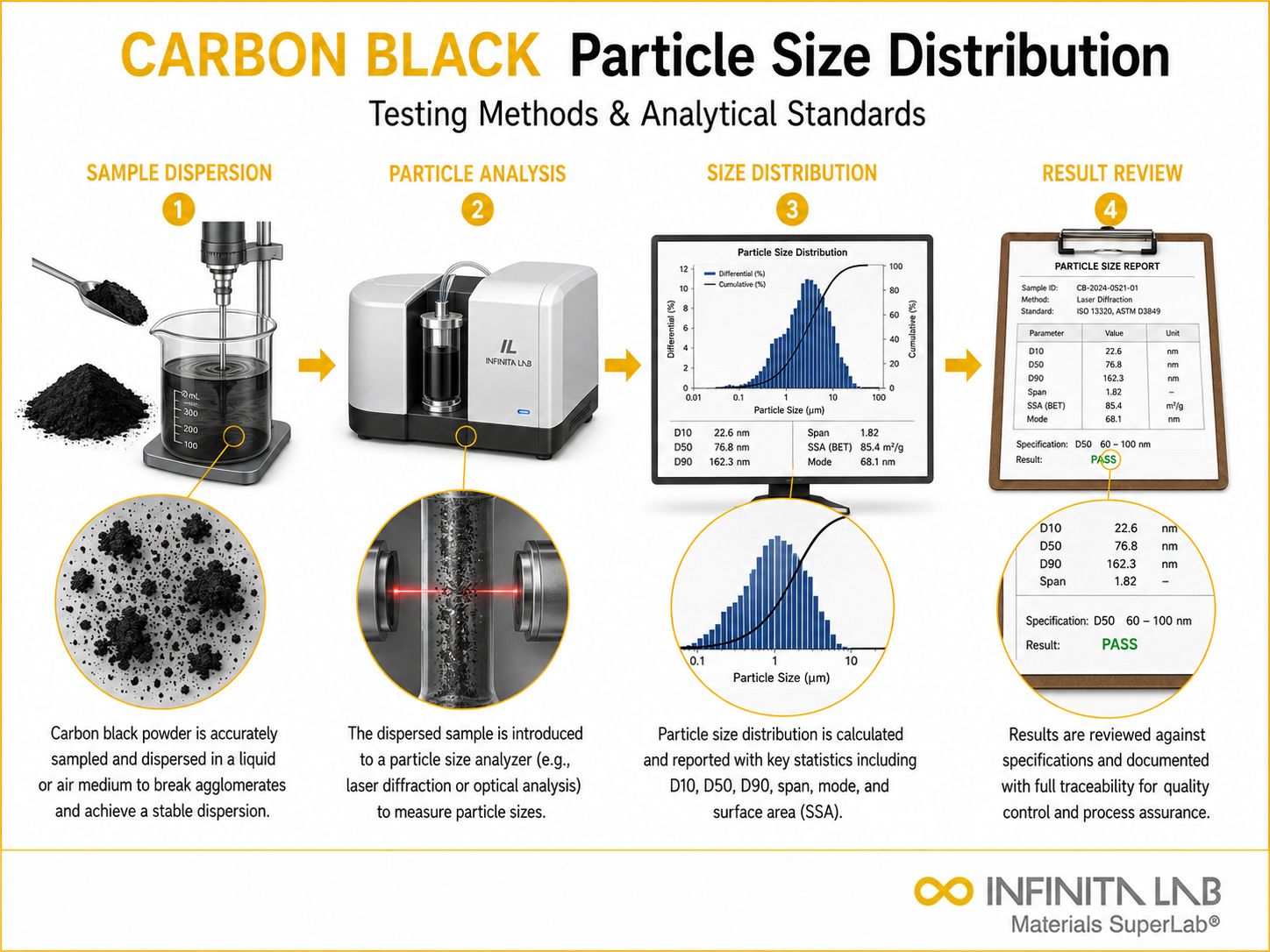

Methods for Measuring Carbon Black Particle Size Distribution

Transmission Electron Microscopy (TEM) — ASTM D3849

TEM is the reference method for carbon black primary particle size characterisation. Specimens dispersed in solvent are deposited on electron-transparent support films, and individual particles are imaged at magnifications of 50,000× to 500,000×. Image analysis software measures the Feret diameter of individual particles across statistically significant populations (typically 2,000–4,000 particles per sample).

ASTM D3849 — Standard Test Method for Carbon Black — Morphological Characterisation of Carbon Black Using Electron Microscopy — specifies specimen preparation, imaging conditions, and measurement protocols for the carbon & rubber industry.

Dynamic Light Scattering (DLS)

DLS measures the hydrodynamic diameter of particles in suspension by analysing the time-dependent fluctuations in scattered laser light. While rapid and widely available, DLS measures aggregate/agglomerate size in dispersion rather than primary particle size — results are influenced by dispersion protocol and are not directly comparable to TEM primary particle measurements.

DLS is most useful for monitoring lot-to-lot consistency and detecting agglomerate size changes rather than for absolute primary particle characterisation.

Small Angle X-Ray Scattering (SAXS) and Small Angle Neutron Scattering (SANS)

These scattering techniques probe particle size in the nanometre range without requiring specimen dispersion, preserving native aggregate structures. SAXS provides primary particle radius of gyration and aggregate size information simultaneously — making it a valuable research tool for fundamental carbon black characterisation.

Centrifugal Sedimentation

Disc centrifuge photosedimentometry (DCP) separates particles by sedimentation rate in a centrifugal field, generating a complete particle size distribution from approximately 30nm to several microns. This technique bridges the gap between TEM (primary particles) and DLS (aggregates/agglomerates) and is particularly useful for characterising bimodal or broad distributions.

Particle Size Distribution and Rubber Compound Performance

Reinforcement Mechanism

The reinforcement of rubber by carbon black occurs through multiple mechanisms: hydrodynamic reinforcement (particle volume effect), polymer-filler adhesion (bound rubber formation), and filler network effects (Payne effect). All three mechanisms scale with particle size — smaller primary particles create more surface area and more intimate polymer-filler contact, amplifying reinforcement effects.

Standard ASTM nomenclature for carbon black grades encodes performance characteristics: N110 (11 = small particle size range, 0 = high structure) is the finest reinforcing grade; N990 (99 = very large particle size) is a thermal black used as a semi-reinforcing, low-hysteresis filler.

Hysteresis and Heat Build-Up

Finer particle blacks generally produce higher hysteresis — heat generated per cycle of deformation — due to their greater interaction with the polymer network. For tyre treads, this translates to improved wet traction but potentially higher rolling resistance. Compound designers balance particle size, structure, and loading to achieve target performance profiles.

Conclusion

Carbon black particle size distribution is a key parameter that directly influences reinforcement, dispersion, and conductivity across rubber, plastics, and coatings. Smaller particles provide higher surface area, leading to improved mechanical strength, deeper colour, and enhanced interaction with the polymer matrix.

By understanding and controlling particle size distribution, manufacturers can optimise material performance, ensure consistency, and meet specific application requirements. It remains a critical factor linking material structure to real-world performance in the carbon and rubber industry.
