Carbon Black Content Testing: ASTM D1603 and D6370 Methods

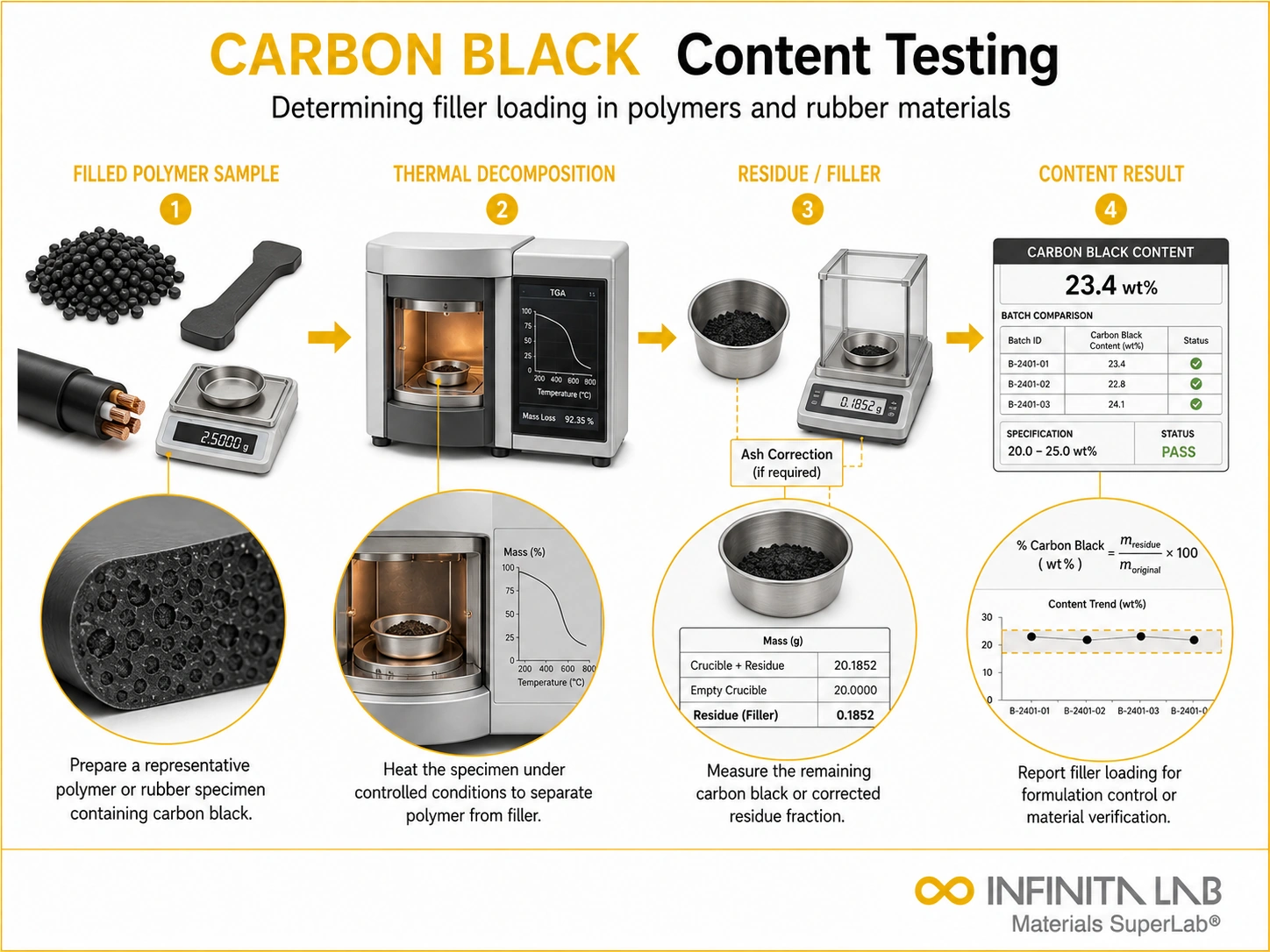

Representative Infinita Engineering Visual explaining the four-step workflow for Carbon Black Content Testing.What Is Carbon Black Content Testing?
Carbon black content testing quantifies the percentage of carbon black filler in a polymer or rubber compound, a property that directly affects tensile strength, tear resistance, hardness, and viscosity. ASTM D1603 covers carbon black content in olefin plastics (commonly polyethylene pipe), while ASTM D6370 provides a thermogravimetric (TGA) method for rubber compounds, and ASTM D4218 covers polyethylene compounds specifically via the muffle-furnace technique.
Muffle-Furnace Method (ASTM D1603/D4218)
The sample is weighed, then heated in a furnace to pyrolyse (thermally decompose) the polymer under an inert or reduced-oxygen atmosphere, burning off the polymer matrix while preserving the carbon black residue. The remaining residue is weighed, and carbon black content is calculated as a percentage of the original sample mass.
TGA Method (ASTM D6370)
For rubber compounds, ASTM D6370 uses a calibrated TGA instrument to separate organics (oil, polymer), carbon black, and ash (inorganic filler) within a single run:
- A small rubber sample (approximately 10-12 mg) is placed in a platinum TGA pan
- Under nitrogen or argon purge, the sample is heated from 50°C to 560°C at 10°C/min, decomposing organics and polymer
- The sample is cooled to 300°C, held to equilibrate, then the purge gas is switched to air or oxygen
- The sample is reheated from 300°C to 800°C at 10°C/min, oxidising the carbon black and leaving only inorganic ash
- Mass lost during each stage quantifies organics, carbon black, and ash respectively
Factors Affecting Accuracy
Sample representativeness and handling are critical — contamination or improper storage can skew results before testing even begins. Furnace atmosphere and temperature control during the pyrolysis stage must be tightly maintained, since incomplete combustion or oxidation at the wrong stage will misattribute mass loss between the polymer and carbon black fractions.
Effect of Carbon Black Content on Material Properties
Increasing carbon black loading in rubber compounds generally improves tensile strength and tear resistance, but also increases compound viscosity and hardness — meaning the “right” carbon black content is always an application-specific tradeoff between mechanical performance and processability, not a fixed target.
Industry Specifications Referencing Carbon Black Content Testing
- ASTM D1603: carbon black content in olefin plastics
- ASTM D4218: muffle-furnace technique for polyethylene compounds
- ASTM D6370: TGA compositional analysis for rubber
- ISO 6964: PE pipe carbon black content, European equivalent
Conclusion
Whether by muffle furnace or TGA, carbon black content testing works on the same underlying principle — selectively burning away everything except the carbon black — but the TGA method’s ability to separate organics, filler, and ash within one continuous run makes it the more informative choice whenever a full compositional breakdown, not just a single carbon black number, is needed.
What is ASTM D1603? ASTM D1603 is a gravimetric test method for determining carbon black content in polyethylene, polypropylene, and polybutylene plastics. The material is pyrolyzed in a nitrogen atmosphere, leaving carbon black and any nonvolatile inorganic residue behind.
What is ASTM D6370? ASTM D6370 is a thermogravimetric analysis, or TGA, method used to determine the amounts of organic material, carbon black, and ash or inorganic filler in rubber compounds. The currently listed ASTM edition is ASTM D6370-23.
How does ASTM D1603 measure carbon black content? A weighed polymer sample is heated in a controlled nitrogen atmosphere so that the polymer matrix decomposes without oxidizing the carbon black. The remaining residue is subsequently evaluated gravimetrically. Carbon black content is calculated from the change in mass relative to the original sample.
Can ASTM D6370 measure ash content? Yes. After organic components and carbon black have been removed, the remaining non-combustible residue can be reported as ash or inorganic filler. ASTM D6370 is designed to determine organics, carbon black, and ash within rubber compounds.
Can finished products be tested? Yes. Samples can often be removed from finished products such as pipes, sheets, liners, seals, hoses, cables, gaskets, and molded rubber parts. The selected specimen should be representative of the product and free from unrelated surface contamination.
