ASTM D731: Flow Testing of Thermosetting Molding Compounds
Digi-Test digital durometer measuring Shore A rubber hardness with precision readoutWhat Is ASTM D731?
ASTM D731 — Standard Test Method for Moulding Index of Thermosetting Molding Compounds — provides a standardised procedure for evaluating the mould flow behaviour of thermosetting moulding compounds (phenolic, urea, melamine, diallyl phthalate, and other thermoset moulding powders) using a defined test mould and press conditions. The moulding index characterises how easily and completely the material fills the mould during compression moulding. This critical processing characteristic determines whether the compound can be moulded into complex shapes without voids, short shots, or excessive flash.
What Are Thermosetting Moulding Compounds?
Thermosetting moulding compounds are granular or powder polymer materials that cure irreversibly when heated under pressure in a mould — unlike thermoplastics, which soften and flow repeatedly. They consist of a thermosetting resin (phenol-formaldehyde, melamine-formaldehyde, epoxy, or DAP) combined with fillers (wood flour, glass fibre, calcium carbonate, and other mineral fillers), curing agents, lubricants, pigments, and flow-control additives.
Upon heating in a compression mould, the resin first softens and flows to fill the mould geometry, then crosslinks (cures) to form a rigid, infusible part. The flow characteristics during this liquid phase — controlled by resin viscosity, cure rate, mould temperature, and cure time — determine whether defect-free parts can be consistently produced.

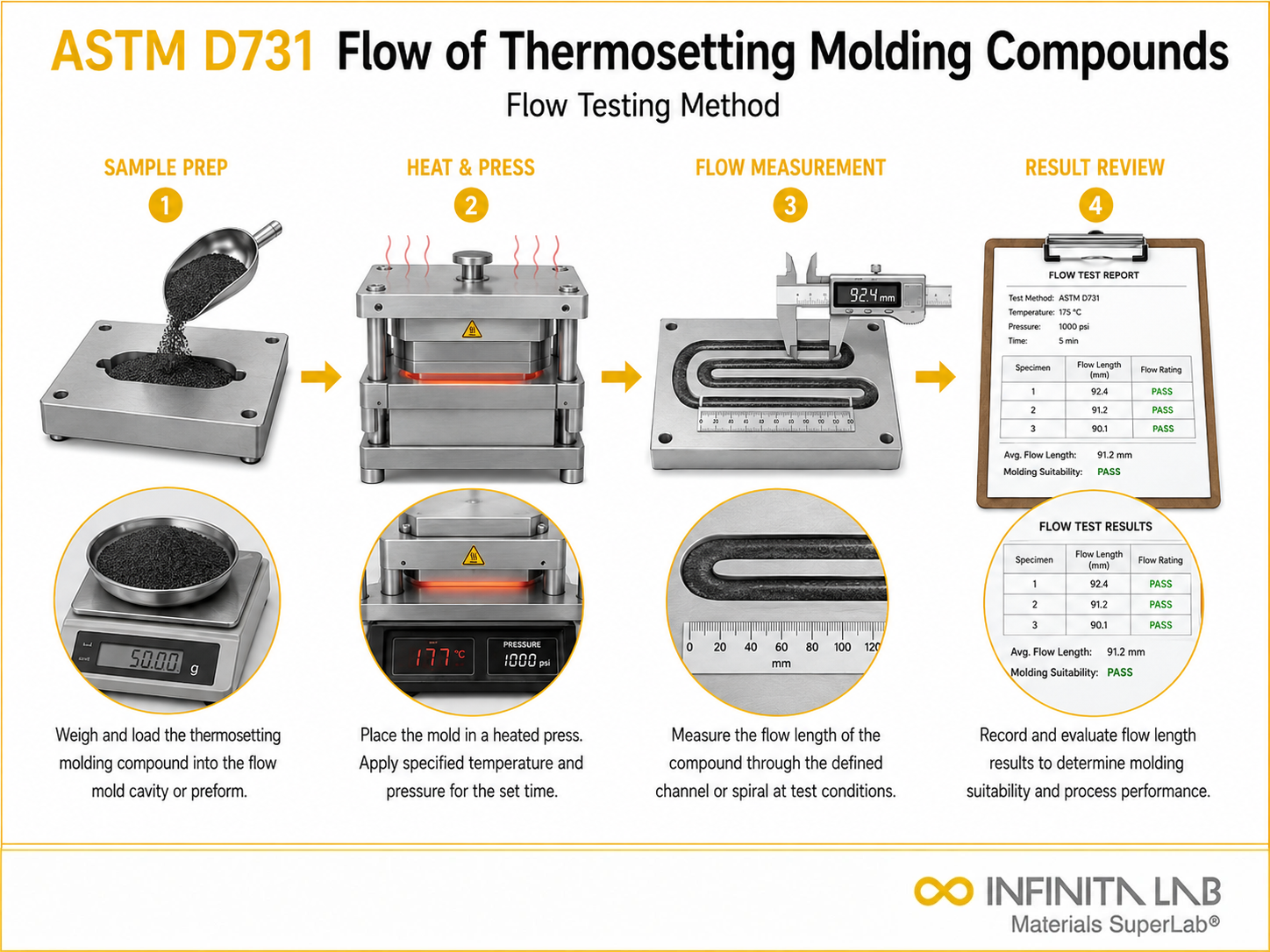

ASTM D731 Moulding Index Test Procedure
Test Mould Design
The ASTM D731 test mould produces a standardised cup-shaped part with a central hub and four overflow sprues. The amount of material flowing into the overflow sprues during moulding at defined conditions is measured to characterise material flow under representative compression moulding conditions.
Test Conditions
A defined charge weight of moulding compound is placed in the preheated mould (temperature specified in the material standard — typically 149–177°C for phenolics). The press closes and applies a defined force. After a defined cure time, the mould is opened, and the specimen is removed. The moulding index is calculated as the weight of the main part divided by the overflow sprue weight.
Moulding Weight = Weight of overflow / Total weight × 100%
Higher moulding index values indicate better mould flow — more material flowed into the overflow sprues. A low moulding index indicates restricted flow — the compound is too stiff or fast-curing to fill complex mould geometry.
Why Moulding Index Matters
Mould flow directly determines:
- Cavity fill quality: Poor flow causes short shots and incomplete filling of thin sections and complex features
- Weld line strength: Adequate flow ensures proper knit line formation where flow fronts meet
- Surface finish: Good flow produces smooth, defect-free surface reproduction
- Cycle time compatibility: Flow characteristics must match the press cycle time for productive manufacturing
- Batch-to-batch consistency: Moulding index variation between batches indicates raw material or formulation inconsistency
Complementary Thermoset Compound Tests
ASTM D731 is part of a broader qualification programme for thermosetting moulding compounds. Complementary tests include:
- ASTM D792 (density): Verifies filler content and formulation consistency
- ASTM D570 (water absorption): Characterises moisture sensitivity for electrical applications
- ASTM D638 / D695 (mechanical properties): Tensile and compressive strength of moulded specimens
- ASTM D257 (electrical resistivity): For moulding compounds in electrical insulation applications
- ASTM D648 (heat deflection temperature): Upper service temperature characterisation
Industrial Applications
Phenolic thermosetting moulding compounds are used in electrical connectors, switchgear components, circuit breakers, cookware handles, automotive under-hood parts, and appliance housings. Melamine compounds are used in dinnerware and surface laminate applications. All of these applications require controlled mould flow to produce defect-free parts with consistent quality.
Conclusion
ASTM D731 moulding index testing — focused on evaluating the flow behaviour of thermosetting moulding compounds under defined compression moulding conditions — provides critical insight into processability, cavity fill capability, and production consistency. By quantifying material flow into overflow sections, this method helps identify whether a compound can produce defect-free, complex parts within specified cycle times. Selecting appropriate test conditions and interpreting moulding index results alongside complementary material tests is essential to ensure reliable manufacturing performance and product quality — making processing evaluation as important as the final part properties themselves.
Why Choose Infinita Lab for Thermosetting Compound Testing?
Infinita Lab provides ASTM D731 moulding index testing alongside comprehensive thermosetting compound characterisation through our nationwide accredited polymer testing laboratory network.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you.
Frequently Asked Questions (FAQs)
What is the difference between thermosetting and thermoplastic moulding compounds in terms of processing? Thermoplastic compounds melt and flow when heated, filling the mould, then solidify on cooling without chemical change — and can be remelted. Thermosetting compounds soften briefly when heated, flow to fill the mould, then cure irreversibly by crosslinking under heat and pressure — they cannot be remelted or reshaped after curing.
Why is moulding index an important QC parameter for thermosetting compound suppliers? Moulding index directly affects the ability to mould complex, precision parts in production. Lot-to-lot variation in moulding index — caused by variations in resin molecular weight, catalyst level, or filler particle size — can cause short shots, dimensional variation, or surface defects in production parts, requiring press parameter adjustment. Regular moulding index testing catches these variations before they reach the production floor.
What factors cause low moulding index (poor flow) in phenolic moulding compounds? Low moulding index results from: advanced resin cure state (pre-curing during storage or elevated temperature exposure), excessive catalyst content, very fine filler particle size causing high viscosity, or insufficient lubricant. Any of these reduces the material's ability to flow before crosslinking is complete.
Is ASTM D731 applicable to all thermosetting moulding compounds? ASTM D731 is most directly applicable to compression moulding compounds including phenolic, urea, melamine, and DAP. For transfer moulding compounds (typically epoxy and silicone), spiral flow tests or transfer index tests more closely simulate the actual process and are preferred. Injection moulding-grade thermosets use melt flow characterisation methods.
What moulding temperature is typically used in ASTM D731 testing? The mould temperature is specified in the applicable material specification rather than ASTM D731 itself. Common temperatures are 163°C (325°F) for phenolic general-purpose grades and 149°C (300°F) for lower-temperature cure grades. The temperature must be documented in all test reports as it significantly affects both resin flow and cure rate.
