Structured Thermal Armor: Achieving Liquid Cooling Above 1000°C — Material Testing

The Thermal Management Challenge at Extreme Temperatures

Thermal management at temperatures exceeding 1000°C represents one of the most demanding material and engineering challenges in modern industry. Conventional liquid cooling systems — the most effective method for removing large heat fluxes from surfaces — are fundamentally limited by the thermal stability of the coolant (water boils at 100°C; most organic coolants degrade well below 500°C) and the structural integrity of the materials forming the cooling channels.

For applications in hypersonic aerospace vehicles, nuclear fusion reactors, advanced gas turbines, and concentrated solar power systems, this thermal ceiling has long constrained system design. The emergence of structured thermal armor — engineered ceramic and composite material architectures that enable liquid cooling at temperatures above 1000°C — represents a potential breakthrough for these industries.

What Is Structured Thermal Armor?

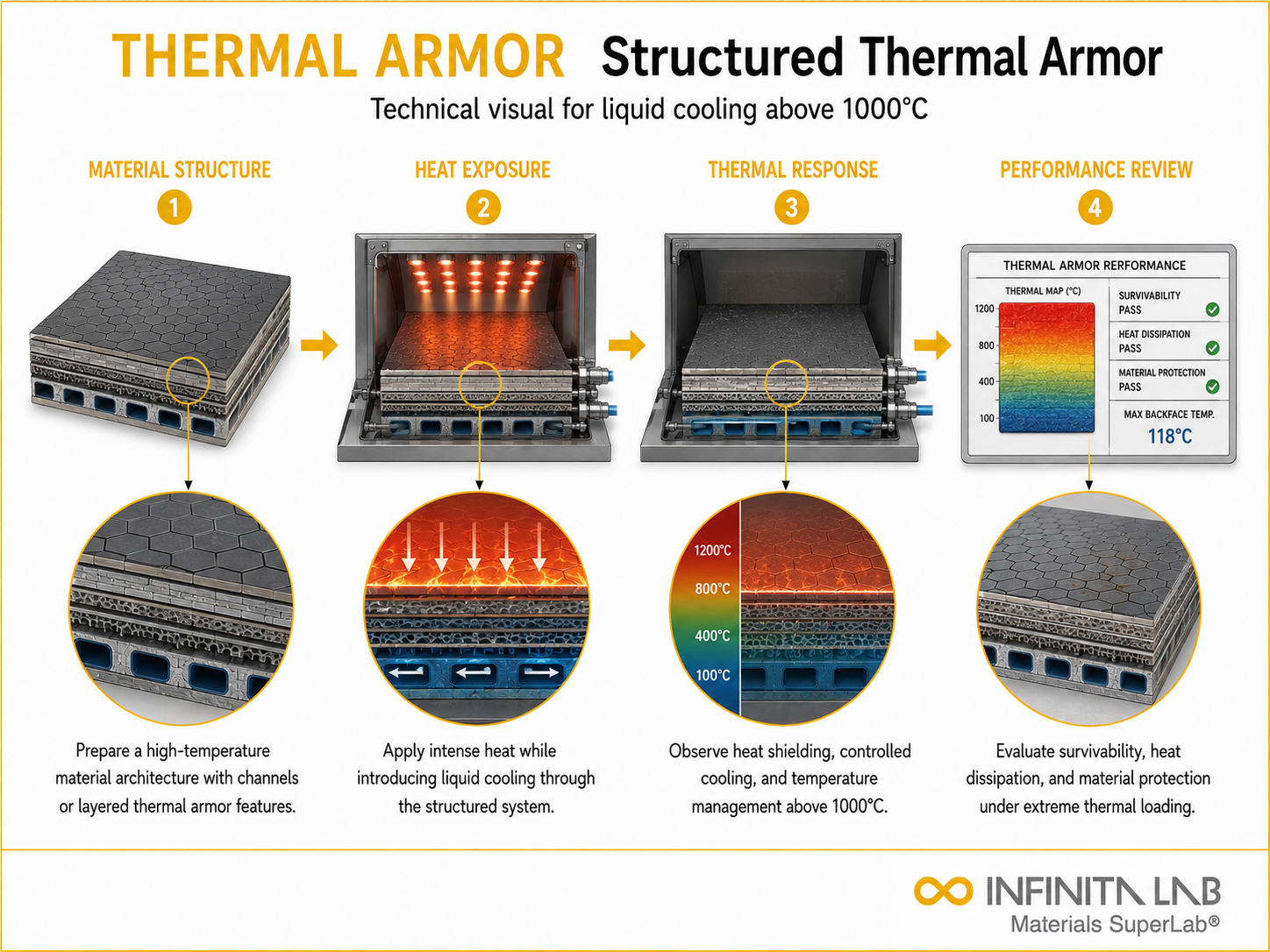

Structured thermal armor refers to engineered multilayer material systems that combine:

1. An outer thermal protection layer — typically ultra-high-temperature ceramics (UHTCs) such as hafnium diboride (HfB₂), zirconium diboride (ZrB₂), or silicon carbide (SiC) composites — capable of withstanding surface temperatures above 2000°C
2. An internal microstructured cooling channel network — fabricated by additive manufacturing, laser machining, or ceramic injection molding — through which a coolant (water, supercritical CO₂, or liquid metal) flows at elevated pressure
3. A thermal gradient management layer — managing the steep temperature drop between the outer hot face and the cooled inner surface to prevent thermally-induced cracking

The structural innovation lies in fabricating the cooling channel architecture within or behind an ultra-high-temperature ceramic shell — a task that has become feasible with the maturation of ceramic additive manufacturing and precision microfabrication.

Key Material Systems in High-Temperature Thermal Armor

Ultra-High-Temperature Ceramics (UHTCs)

HfB₂ and ZrB₂ composites with SiC additions exhibit oxidation resistance and structural integrity above 2000°C — the primary candidates for outer thermal protection in structured armor. Their thermal conductivity (10–60 W/m·K) is sufficient to transport heat toward the internal cooling network.

SiC/SiC Ceramic Matrix Composites (CMCs)

SiC fiber-reinforced SiC matrix composites combine high-temperature capability (1200–1400°C structural-use temperature) with damage tolerance that is absent in monolithic ceramics. Their use in cooling channel walls enables the architecture to withstand the cyclic thermal stresses of operation.

Refractory Metal Cooling Channel Inserts

Tungsten, molybdenum, and rhenium liners within ceramic cooling channel networks provide ductility and thermal conductivity at the coolant interface — accommodating differential thermal expansion and enabling reliable sealing.

Testing Requirements for Structured Thermal Armor

Qualifying structured thermal armor systems demands a comprehensive test program:

Applications and Industries

• Hypersonic aerospace: Leading edges and control surfaces of Mach 5+ vehicles experience extreme aerodynamic heating
• Fusion energy: Plasma-facing components in tokamak reactors must survive neutron bombardment and plasma heat fluxes
• Advanced gas turbines: Next-generation turbine blades operating at higher inlet temperatures require active cooling via CMC components.
• Concentrated solar power (CSP): Receiver tubes at focus points of parabolic trough systems operate at 500–1000°C

Conclusion

Structured thermal armor that achieves liquid cooling above 1000°C represents a genuine materials engineering frontier — combining ultra-high-temperature ceramics, precision-fabricated microarchitectures, and advanced thermal analysis to extend the operational envelope of liquid cooling into temperature regimes previously accessible only to passive ablative or transpiration cooling solutions. As additive manufacturing of ceramics and refractory metals matures, these systems will transition from laboratory demonstrations into operational platforms in hypersonic, energy, and advanced propulsion applications.
