Top 20 Energy Storage Equipment Testing Methods

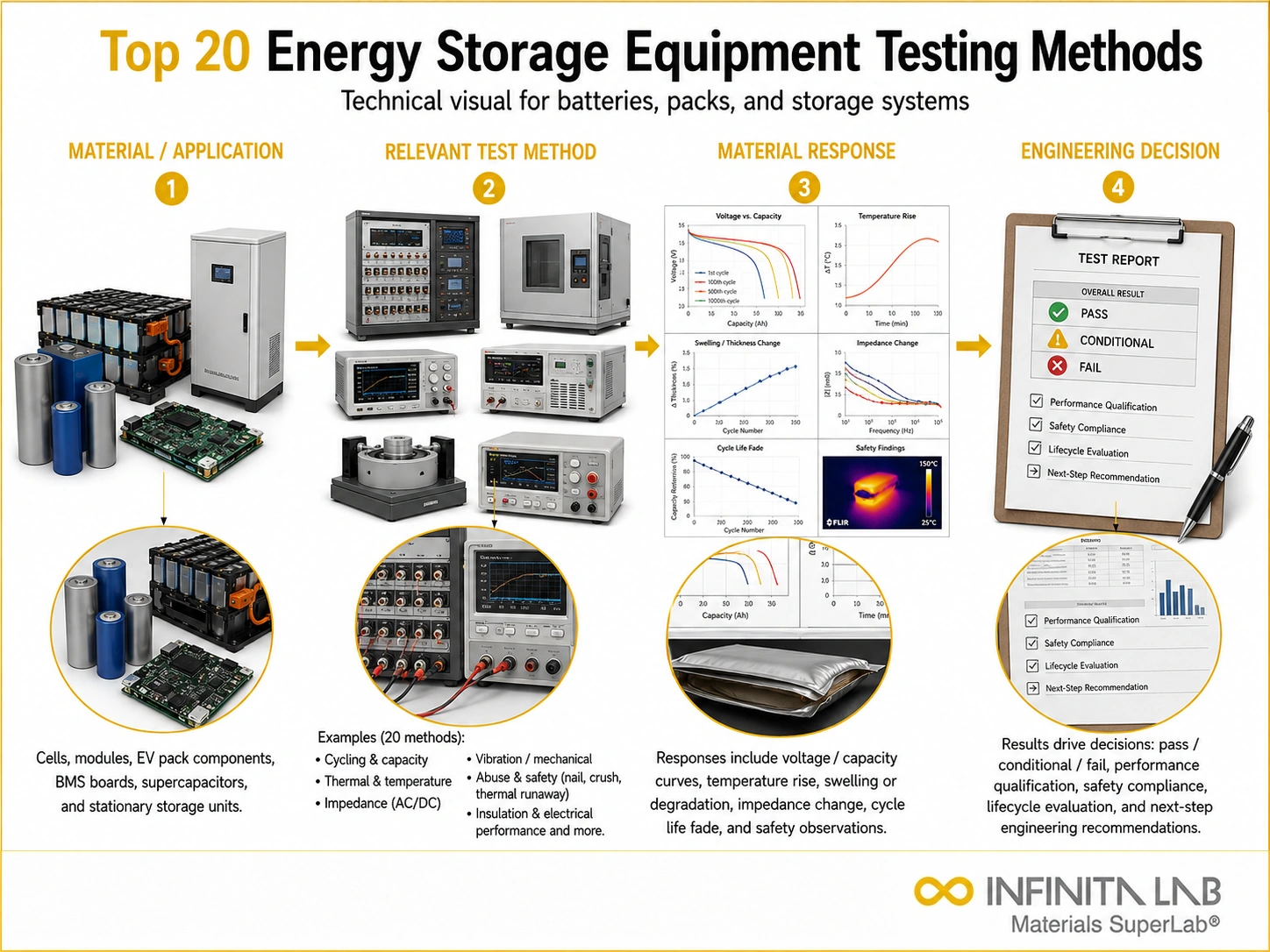

Representative Infinita Engineering Visual explaining the four-step workflow for Top 20 Energy Storage Equipment Testing Methods.What Is Energy Storage Testing?
Energy storage testing evaluates the performance, safety, and durability of systems that store electrical energy for later use – spanning lithium-ion and flow batteries, supercapacitors, flywheels, and thermal storage systems. Unlike single-cell battery testing, energy storage system (ESS) testing often extends to full packs, racks, and grid-connected installations, incorporating power electronics, thermal management, and control systems into the evaluation alongside the storage medium itself.
Why Energy Storage Testing Matters
Grid-scale and behind-the-meter storage systems represent significant capital investment and carry real safety stakes when deployed near people and infrastructure. Testing protects against:
- Underperformance relative to rated capacity or power output
- Thermal events in densely packed storage installations
- Premature degradation reducing system lifetime economics
- Integration failures between storage, inverter, and control systems
- Non-compliance with UL 9540, IEC 62933, and grid interconnection standards
Top 20 Energy Storage Testing Methods
- Capacity and Energy Throughput Testing – Measures total usable energy (kWh) delivered under defined cycling conditions.
- Round-Trip Efficiency Testing – Compares energy input during charging to energy recovered during discharge to quantify system losses.
- Cycle Life Testing – Repeated charge/discharge cycling quantifies capacity fade over the system’s expected operational life.
- Calendar Life / Storage Aging Testing – Evaluates degradation during idle storage, relevant for systems with intermittent use patterns.
- Power Rating Verification – Confirms maximum charge/discharge power the system can sustain without exceeding thermal or voltage limits.
- Thermal Management System Validation – Verifies cooling or heating systems maintain safe cell temperatures under full-power operation.
- Thermal Runaway Propagation Testing (UL 9540A) – Assesses whether a single-cell failure propagates to adjacent cells or modules within a rack.
- Fire Testing and Suppression Validation – Evaluates fire behavior and the effectiveness of built-in suppression systems in large-format installations.
- Environmental Enclosure Testing (IP Rating) – Confirms ingress protection against dust and water for outdoor-rated storage enclosures.
- Seismic and Mechanical Shock Testing – Evaluates structural integrity of storage racks and enclosures under simulated seismic events.
- Grid Interconnection / Power Quality Testing (IEEE 1547) – Verifies inverter and control system behavior meets grid codes for voltage, frequency, and harmonic distortion.
- State of Charge (SOC) and State of Health (SOH) Accuracy Testing – Validates battery management system estimates against actual measured performance.
- Response Time / Ramp Rate Testing – Measures how quickly a storage system can respond to grid dispatch signals, critical for frequency regulation applications.
- Overcharge and Overdischarge Protection Testing – Confirms battery management systems correctly prevent unsafe charge states.
- Electrochemical Impedance Spectroscopy (EIS) – Characterizes internal resistance and aging mechanisms at the cell or module level.
- Flow Battery Electrolyte Analysis – For redox flow systems, evaluates electrolyte purity, concentration, and degradation over service life.
- Supercapacitor Cycling and Leakage Current Testing – Evaluates rapid charge/discharge cycling durability and self-discharge behavior unique to supercapacitors.
- Insulation Resistance and Dielectric Withstand Testing – Confirms electrical isolation between storage components and enclosure/ground to prevent shock hazards.
- Communication and Control Interoperability Testing – Verifies the storage system correctly communicates with inverters, energy management systems, and grid operators.
- End-of-Life / Second-Life Capacity Assessment – Evaluates remaining capacity and safety of retired batteries being considered for second-life applications.
Energy Storage Test Method Comparison
Property Evaluated | Representative Method | Typical Standard |
|---|
Performance | Capacity, round-trip efficiency | IEC 62933-2-1 |
Safety (cell-to-system) | Thermal runaway propagation | UL 9540A |
Grid integration | Power quality, interconnection | IEEE 1547 |
Environmental durability | IP rating, seismic testing | IEC 60529 |
Degradation | Cycle life, calendar life, EIS | IEC 61427 |
Applications by Industry
- Utility-Scale Grid Storage – Large battery energy storage systems (BESS) tested for round-trip efficiency, grid interconnection compliance, and thermal runaway propagation given proximity to critical infrastructure.
- Commercial & Industrial (Behind-the-Meter) – Systems tested for peak-shaving performance, response time, and integration with existing electrical systems.
- Renewable Energy Integration – Storage paired with solar or wind tested for ramp-rate response and round-trip efficiency to maximize renewable capture.
- Residential Storage – Home battery systems tested for safety enclosure ratings, thermal management, and cycle life under daily use patterns.
- Microgrids & Backup Power – Systems tested for rapid response time and reliable islanding/reconnection behavior during grid outages.
Industry Standards Referencing Energy Storage Testing
- Safety: UL 9540, UL 9540A, IEC 62619
- Grid Interconnection: IEEE 1547, IEEE 2030
- Performance: IEC 62933 series, IEC 61427
- Environmental: IEC 60529 (IP rating), IEEE 693 (seismic)
Advantages and Limitations
Advantages
- Validates safety at the system level, not just individual cells
- Confirms grid compliance before interconnection approval
- Supports accurate lifetime and ROI modeling for large capital investments
- Identifies thermal or control-system integration issues before field deployment
Limitations
- Full-scale system and propagation testing (UL 9540A) requires significant facility investment and is destructive
- Grid interconnection requirements vary by region and utility, sometimes requiring redundant testing
- Long-duration calendar life testing can take months to years to complete meaningfully
- Emerging chemistries (flow batteries, solid-state) may lack fully mature standardized test protocols
Conclusion
As energy storage moves from single-cell chemistry to grid-scale infrastructure, testing has expanded to match – covering not just electrochemical performance but thermal safety, grid integration, and mechanical durability at the full system level. A thorough testing program across these dimensions is essential to deploying storage systems that are both economically sound and safe at scale.
Frequently Asked Questions (FAQs)
What is energy storage equipment testing? It evaluates the safety, performance, reliability, efficiency, and durability of battery systems, inverters, power conversion equipment, and control systems.
What is round-trip efficiency testing? Round-trip efficiency testing compares the energy supplied during charging with the energy recovered during discharge.
How is power performance tested? Rated power, peak power, response time, ramp rate, and continuous discharge tests confirm whether the system meets its output specifications.
Which electrical safety tests are performed? Common tests include insulation resistance, dielectric strength, grounding, leakage current, short-circuit protection, and overcurrent testing.
Which environmental tests are commonly used? Temperature cycling, humidity, vibration, shock, dust, water ingress, corrosion, and altitude tests simulate operating and transportation conditions.
