Battery Charge-Discharge Testing: Capacity, Efficiency & Cycle Life Methods

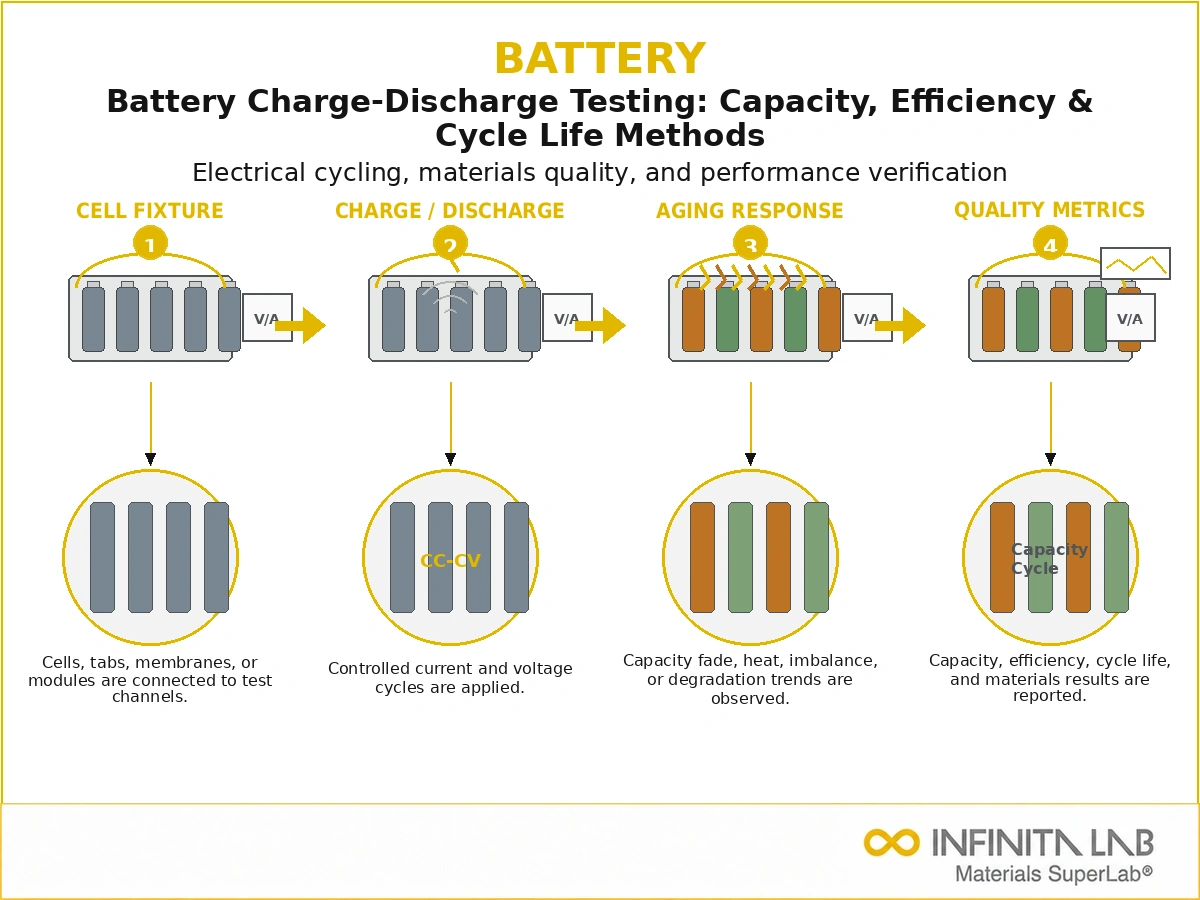

Comprehensive Battery Performance Validation Through Charge-Discharge Testing

Battery charge-discharge testing is the definitive method for characterising the electrochemical performance, capacity, efficiency, rate capability, and long-term cycle stability of battery cells, modules, and packs across the EV, energy storage, consumer electronics, and defence industries. Every performance claim on a battery product — energy density, power density, cycle life, operating temperature range — is underpinned by systematically acquired charge-discharge test data from accredited laboratories using calibrated battery test systems.

Battery Test System Architecture

Precision Battery Cyclers

Modern battery test systems (Arbin BT2000, Maccor Series 4000, BioLogic BCS-815) apply programmable current profiles to battery specimens while recording voltage, current, temperature, and impedance at millisecond sampling rates. Four-quadrant operation enables both charge and discharge in a single instrument. Current accuracy of ±0.02–0.05% of full scale and voltage measurement accuracy of ±0.01% ensure traceable, reproducible results across multiple test channels and instruments.

Temperature-Controlled Test Environments

Battery performance is strongly temperature-dependent — most lithium-ion chemistries show 20–40% capacity reduction at −20°C versus 25°C. Temperature-controlled chambers integrated with cyclers enable systematic performance mapping from −40°C to +60°C. Thermal runaway detection systems (pressure sensors, thermocouples, gas detectors) provide safety shutdown capability during abuse testing.

Standard Battery Test Protocols

Reference Performance Test (RPT)

An RPT consists of a capacity check at C/5 rate (5-hour discharge), HPPC (Hybrid Pulse Power Characterisation per Idaho National Laboratory methodology) for internal resistance and power capability mapping, and EIS measurement. RPTs are performed at defined cycle intervals (every 50–100 cycles) to track capacity fade, resistance growth, and power fade with cycling — providing state-of-health (SOH) versus cycle number curves.

Constant Current Constant Voltage (CC-CV) Charging

Standard lithium-ion charging protocol — constant current (C/2 or 1C) until maximum voltage, then constant voltage hold until current drops to C/20 cut-off. Total charge time and charge acceptance efficiency (Ah in vs. Ah out) are measured. Fast charging protocols (2C, 3C) are tested with and without temperature limits to characterise charging speed versus capacity and degradation trade-offs.

Drive Cycle Testing

EV battery packs are subjected to standardised drive cycle current profiles — WLTP, UDDS, US06, HWFET — that replicate real-world power demand patterns, including regenerative braking pulses. Energy throughput, round-trip efficiency, and thermal behaviour during realistic duty cycles characterise range prediction accuracy and thermal management system adequacy.

Safety Testing

IEC 62133 Safety Testing

IEC 62133 for portable sealed secondary lithium cells and batteries includes overcharge, over discharge, short circuit, free fall, thermal abuse, and forced discharge tests — demonstrating that cell safety mechanisms (PTC, CID, vent) function correctly under abuse conditions.

Conclusion

Battery charge-discharge testing is the foundation of reliable battery performance validation, providing quantitative insights into capacity, efficiency, power capability, and long-term durability. By utilising precision battery cyclers, temperature-controlled environments, and standardised protocols such as RPT, CC-CV charging, and drive cycle simulations, manufacturers can accurately characterise battery behaviour under real-world and extreme conditions. In addition, rigorous safety testing under standards IEC 62133 ensures that batteries meet global transportation and operational safety requirements. Together, these comprehensive testing methodologies enable the development of high-performance, safe, and durable batteries for electric vehicles, energy storage systems, consumer electronics, and defence applications.
