Top 20 Battery Testing Methods for Lithium-Ion & Energy Storage

What Is Battery Testing?

Battery testing is the systematic evaluation of electrochemical cells, modules, and packs to verify performance, safety, and durability across the full range of conditions they’ll encounter in service. As batteries – from consumer lithium-ion cells to large-format EV and grid-storage packs – carry more energy density and see wider deployment, testing has expanded well beyond simple capacity checks to include abuse testing, thermal behaviour, and long-term degradation modelling.

Why Battery Testing Matters

A battery that underperforms or fails unsafely can mean anything from a disappointed customer to a fire risk. Testing protects against:

• Capacity or cycle-life shortfalls versus specification
• Thermal runaway under abuse or fault conditions
• Performance degradation in extreme temperatures
• Internal short circuits or manufacturing defects
• Non-compliance with UN 38.3, UL, or IEC transport and safety standards

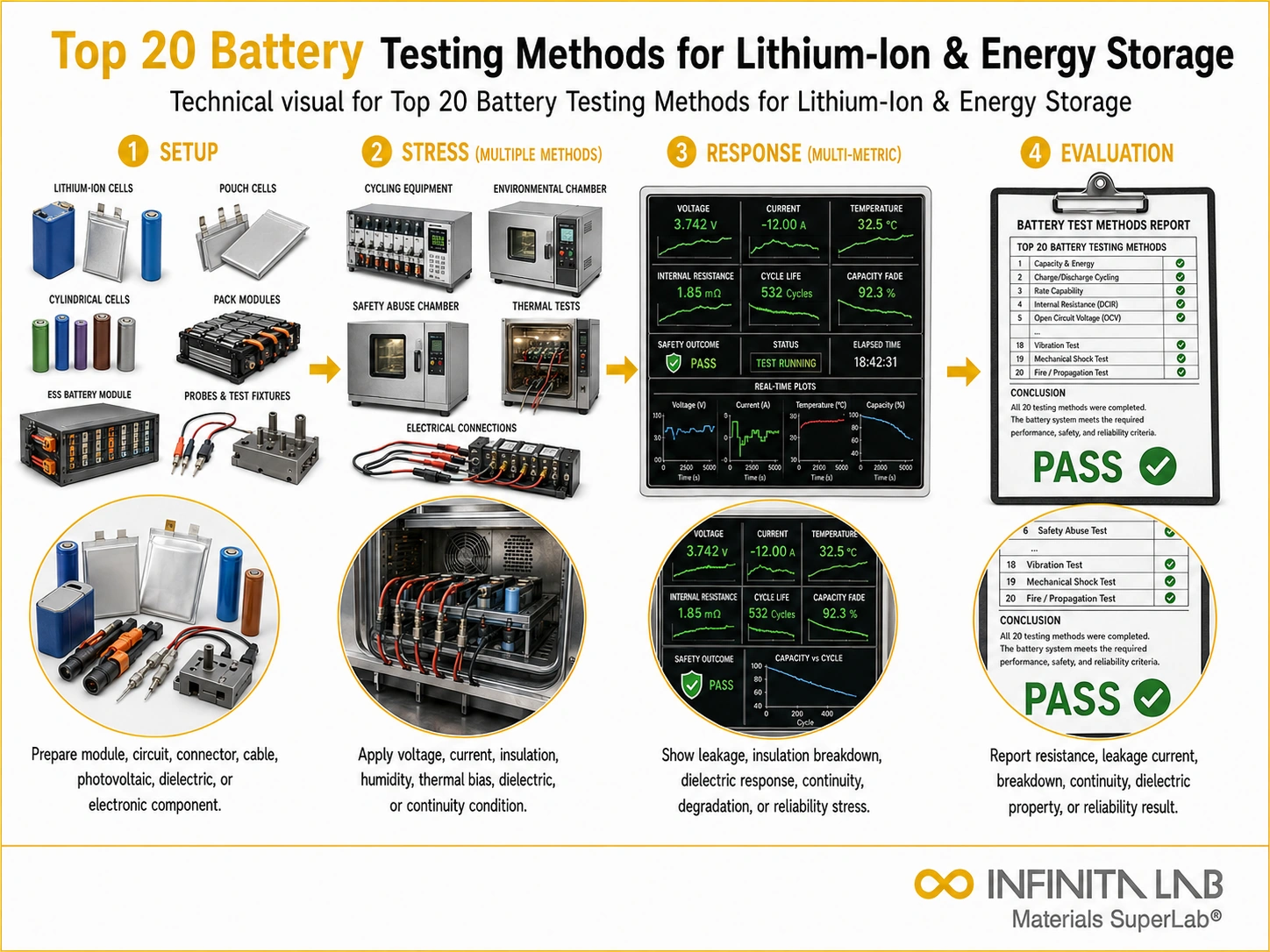

Top 20 Battery Testing Methods

1. Capacity Testing – Measures the actual charge (Ah) a battery can deliver under defined discharge conditions, compared to rated capacity.
2. Cycle Life Testing – Repeated charge/discharge cycles quantify how capacity fades over hundreds or thousands of cycles.
3. Rate Capability (C-Rate) Testing – Evaluates performance across different charge/discharge rates to characterise power delivery limits.
4. Internal Resistance (EIS) Testing – Electrochemical impedance spectroscopy measures internal resistance and its components, indicating cell health and ageing.
5. Open Circuit Voltage (OCV) Testing – Measures resting voltage to estimate state of charge and detect self-discharge issues.
6. Thermal Runaway / Abuse Testing – Overcharge, over-discharge, short-circuit, crush, and nail penetration tests evaluate worst-case failure behaviour.
7. Overcharge Testing – Charges a cell beyond rated voltage to assess safety response and failure mode.
8. Short Circuit Testing – Deliberately shorts the battery terminals to evaluate current surge behaviour and protective response.
9. Crush and Penetration Testing – Mechanically deforms or punctures a cell to simulate collision or manufacturing-defect scenarios.
10. Thermal Cycling Testing – Cycles the battery through temperature extremes to evaluate performance stability and mechanical integrity of seals and casings.
11. High/Low Temperature Performance Testing – Measures capacity and power delivery at extreme hot and cold conditions relevant to end-use environment.
12. Vibration and Mechanical Shock Testing (IEC 62133, UN 38.3) – Simulates transportation and in-service vibration to check for connector loosening or internal damage.
13. Overdischarge Testing – Discharges a cell below its safe voltage floor to evaluate reversibility and safety response.
14. Self-Discharge Rate Testing – Measures capacity loss during storage without use, important for shelf-life specification.
15. State of Health (SOH) Estimation – Combines capacity, impedance, and cycling data to estimate remaining useful life of a battery.
16. State of Charge (SOC) Accuracy Testing – Validates the accuracy of a battery management system’s charge-level estimation.
17. Gas Evolution / Swelling Analysis – Monitors internal gas generation during cycling or abuse, an early indicator of degradation or venting risk.
18. Calorimetry (Accelerating Rate Calorimetry, ARC) – Measures heat generation during thermal runaway to characterise onset temperature and severity.
19. Nail Penetration Testing – A standardised abuse test that penetrates a cell with a nail to evaluate internal short-circuit and thermal response.
20. Environmental / Altitude Simulation (UN 38.3) – Simulates low-pressure air transport conditions to confirm cells won’t leak, vent, or rupture in flight.

Also Read – Sieve Analysis of Raw Materials for Glass Manufacture: Method & Standards

Battery Test Method Comparison

Applications by Industry

• Electric Vehicles – Battery packs tested for cycle life, thermal runaway propagation, and crash-relevant mechanical abuse across the vehicle’s expected lifetime.
• Consumer Electronics – Small-format lithium cells tested for capacity, cycle life, and UN 38.3 transport compliance before shipment.
• Grid Energy Storage – Large stationary battery systems tested for long-duration cycle life, thermal management, and safety under continuous operation.
• Aerospace & Defence – Batteries tested under extreme environmental and altitude conditions given mission-critical reliability requirements.
• Medical Devices – Implantable and portable device batteries tested for long-term reliability and abuse tolerance given patient safety implications.

Industry Standards Referencing Battery Testing

• Transport Safety: UN 38.3
• Cell & Pack Safety: UL 1642, UL 2054, IEC 62133
• EV-Specific: SAE J2464, SAE J2929, ISO 12405
• Performance: IEC 61960, IEC 61951

Advantages and Limitations

Advantages

• Confirms real-world safety behaviour before large-scale deployment
• Enables accurate cycle-life and warranty predictions
• Supports regulatory compliance for shipping and market entry
• Detects manufacturing defects before field failures occur

Limitations

• Abuse testing is inherently destructive and consumes test samples
• Accelerated ageing tests approximate but don’t perfectly predict multi-year real-world degradation
• Large-format pack testing requires significant facility investment (thermal chambers, calorimetry, containment)
• Test results can vary meaningfully with cell chemistry, format, and manufacturer

Also Read – Substances of Very High Concern (SVHC): REACH Testing & Compliance

Conclusion

Battery testing has grown from a simple capacity check into a multi-layered safety and performance discipline, particularly as lithium-ion chemistries scale into EVs and grid storage. A rigorous test program spanning performance, thermal, and abuse conditions is what separates a battery that merely works from one that’s proven safe across its full operating envelope.
