Top 20 Semiconductor Testing Methods for Device & Material Analysis

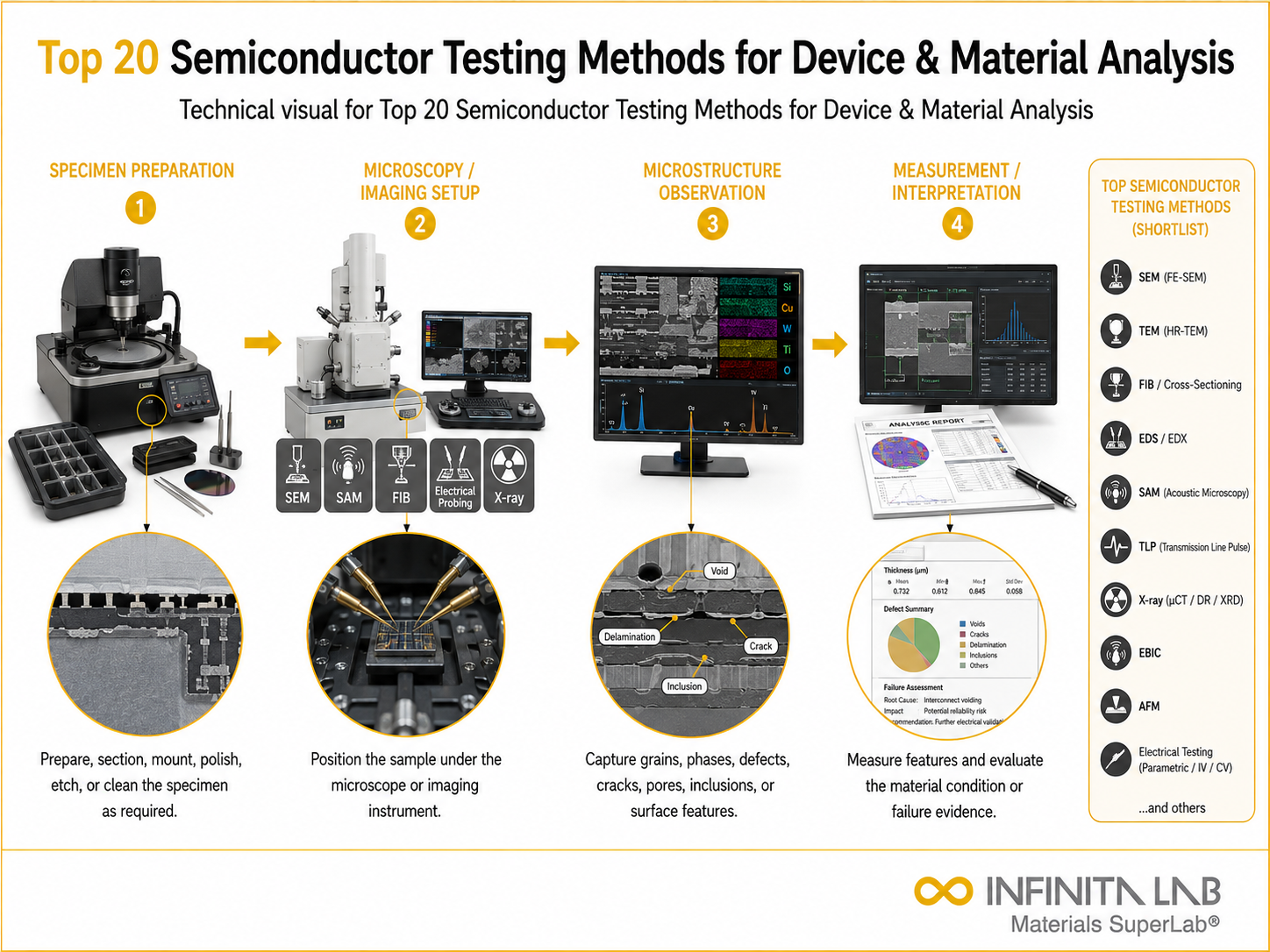

Representative Infinita Engineering Visual explaining the four-step workflow for Top 20 Semiconductor Testing Methods for Device & Material Analysis.What Is Semiconductor Testing?
Semiconductor testing evaluates integrated circuits, discrete devices, and wafer-level structures for electrical function, reliability, and defect-free manufacturing across the fabrication and packaging process. Because a single defect at the nanometer scale can render a chip non-functional, semiconductor testing spans wafer-level probing, packaged-device functional testing, and long-term reliability stress testing.
Why Semiconductor Testing Matters
- Confirms electrical performance meets design specification
- Detects manufacturing defects at wafer and package level before shipment
- Verifies long-term reliability under thermal, electrical, and mechanical stress
- Supports quality requirements for automotive, aerospace, and medical-grade devices
Top 20 Semiconductor Testing Methods
- Wafer-Level Electrical Probing – Tests individual dies on the wafer for basic electrical function before dicing and packaging.
- Functional Testing – Verifies the packaged device performs its intended logic or analogue function under simulated operating conditions.
- Parametric Testing – Measures specific electrical parameters (voltage, current, resistance) against datasheet specifications.
- Burn-In Testing – Operates devices at elevated voltage and temperature to precipitate early-life failures before shipment.
- Highly Accelerated Stress Testing (HAST) – Combines high temperature, humidity, and voltage bias to accelerate moisture-related failure mechanisms.
- Temperature Cycling Testing (JESD22-A104) – Cycles devices through temperature extremes to evaluate package and solder joint reliability.
- Thermal Shock Testing (JESD22-A106) – Applies rapid temperature transitions to stress package materials and interfaces.
- Electromigration Testing – Evaluates interconnect reliability under sustained high current density at elevated temperature.
- Electrostatic Discharge (ESD) Testing (JESD22-A114) – Verifies device robustness against static discharge during handling.
- Latch-Up Testing (JESD78) – Evaluates susceptibility to a parasitic short-circuit condition triggered by voltage transients.
- Wire Bond Pull and Shear Testing – Verifies mechanical reliability of wire bonds connecting die to package leads.
- Die Shear Testing – Evaluates the strength of the die attach bond within the package.
- Scanning Acoustic Microscopy (SAM) – Non-destructively detects delamination and voids within the packaged device.
- X-Ray Inspection – Reveals internal defects such as wire bond issues or voiding not visible externally.
- Decap and Physical Failure Analysis – Chemically or mechanically opens a package to examine die-level defects under microscopy.
- Leakage Current Testing – Measures unintended current flow, indicating potential defects or degradation.
- Hot Carrier Injection (HCI) Reliability Testing – Evaluates transistor degradation from high-energy carriers over device lifetime.
- Time-Dependent Dielectric Breakdown (TDDB) Testing – Evaluates gate oxide reliability under sustained electrical stress.
- Radiation / Single-Event Effect Testing – Evaluates device behaviour under radiation exposure, critical for aerospace and space applications.
- Moisture Sensitivity Level (MSL) Testing (J-STD-020) – Classifies package sensitivity to moisture absorption before reflow soldering.
Semiconductor Test Method Comparison
Property Evaluated | Representative Method | Typical Standard |
|---|
Electrical function | Wafer probing, functional/parametric testing | JEDEC JESD test methods |
Package reliability | Temperature cycling, thermal shock | JESD22-A104, A106 |
Interconnect reliability | Electromigration, wire bond pull | JESD61, JESD22-B116 |
Environmental stress | HAST, MSL testing | JESD22-A118, J-STD-020 |
Defect analysis | X-ray, SAM, decap analysis | – |
Applications by Industry
Consumer Electronics – Functional and burn-in testing to meet fast production cycles and cost targets. Automotive – Extensive temperature cycling, HAST, and reliability testing given long service life and safety-critical applications (AEC-Q100). Aerospace & Defence – Radiation and single-event effect testing for space and mission-critical electronics. Medical Devices – Reliability and functional testing supporting long-term implantable and diagnostic electronics. Telecommunications – High-speed functional and signal integrity testing for networking and RF components.
Industry Standards Referencing Semiconductor Testing
JEDEC JESD22 series (environmental/reliability), JESD78 (latch-up), JESD61 (electromigration), J-STD-020 (moisture sensitivity), AEC-Q100 (automotive qualification)
Advantages and Limitations
Advantages: Detects wafer and package-level defects before costly downstream assembly; predicts long-term reliability through accelerated stress testing; supports stringent qualification requirements for automotive and aerospace-grade devices. Limitations: Wafer-level testing cannot always predict package-level reliability issues introduced during assembly; accelerated reliability tests (HAST, burn-in) require careful acceleration factor modelling to translate to real-world lifetime; advanced node geometries continue to push beyond some legacy test method assumptions.
Conclusion
Semiconductor reliability is built through layered testing across the manufacturing flow – from wafer-level electrical probing through package-level burn-in and accelerated stress testing – because a defect invisible at one stage can surface as a costly field failure if not caught earlier in the process.
Why is semiconductor testing important? Testing identifies defects, verifies device performance, improves production yield, and confirms long-term reliability.
What is wafer probing? Wafer probing electrically tests individual dies before packaging to identify defective devices and measure key performance parameters.
What is parametric testing? Parametric testing measures electrical properties such as voltage, current, resistance, capacitance, leakage, and threshold voltage.
How are semiconductor defects detected? Common methods include optical inspection, X-ray imaging, scanning electron microscopy, acoustic microscopy, and electrical fault isolation.
Which reliability tests are commonly used? Common tests include thermal cycling, thermal shock, humidity bias, high-temperature operating life, vibration, and mechanical shock.
