Top 20 Electronics Testing Methods for PCB & Component Reliability

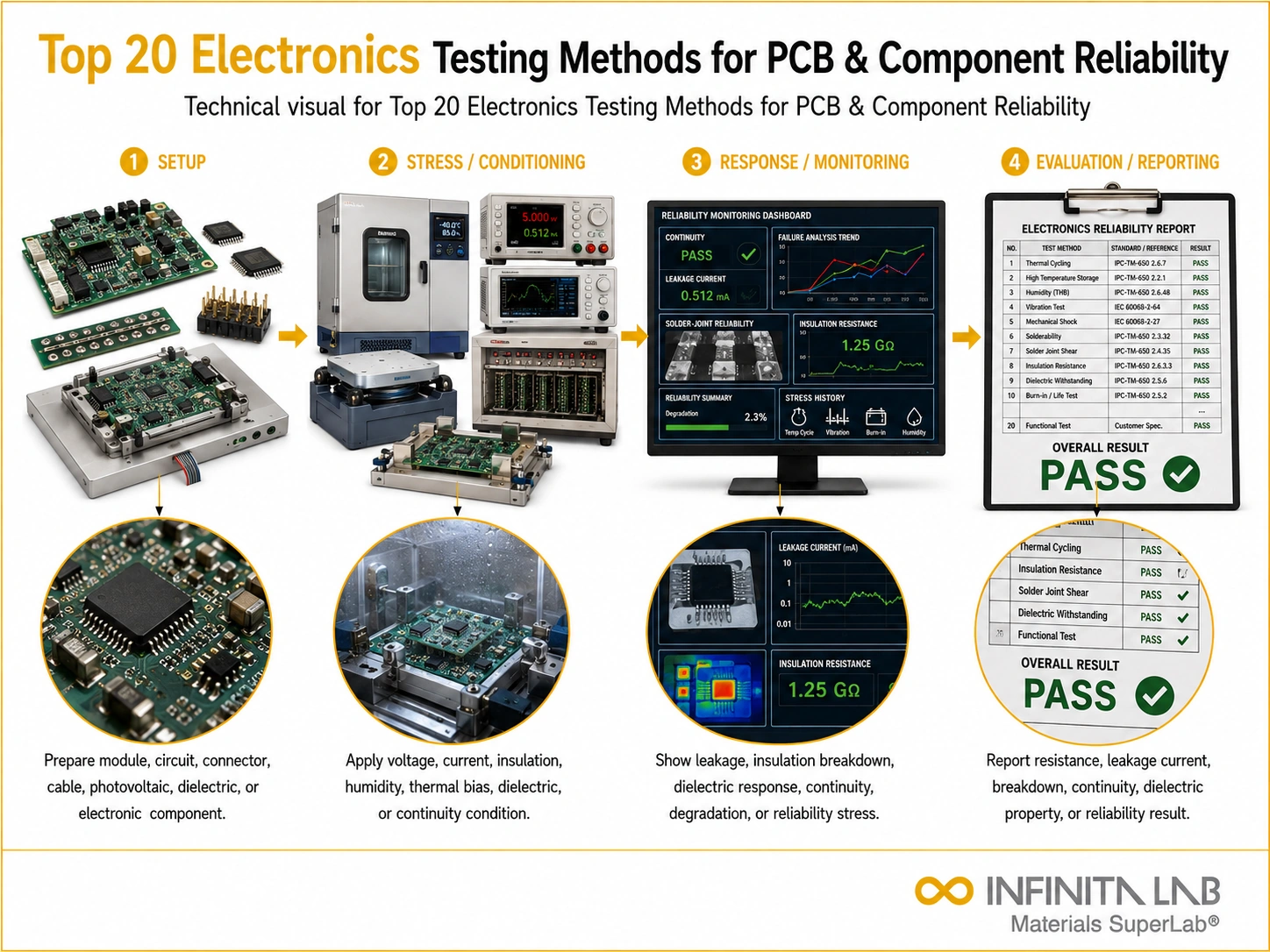

Representative Infinita Engineering Visual explaining the four-step workflow for Top 20 Electronics Testing Methods for PCB & Component Reliability.What Is Electronics Testing?
Electronics testing evaluates components, circuit boards, and assembled devices for electrical function, environmental durability, and compliance with safety and interference regulations. As electronics are packed into smaller, denser, and more thermally stressed designs, testing spans everything from a single resistor’s tolerance to a fully assembled device’s behaviour under vibration, heat, and electromagnetic interference.
Why Electronics Testing Matters
- Confirms functional performance meets design specification
- Verifies reliability under thermal, vibration, and humidity stress
- Ensures electromagnetic compatibility with other devices and regulatory limits
- Detects manufacturing defects before field failure
Top 20 Electronics Testing Methods
- In-Circuit Testing (ICT) – Probes individual components on an assembled PCB to verify correct values and connections.
- Functional Testing – Powers the assembled device and verifies it performs its intended function under simulated operating conditions.
- Automated Optical Inspection (AOI) – Camera-based inspection detects solder defects, missing components, and placement errors.
- X-Ray Inspection – Reveals hidden solder joints (e.g., BGA packages) and internal defects not visible optically.
- Burn-In Testing – Operates devices at elevated temperature and voltage for an extended period to precipitate early-life failures.
- Thermal Cycling Testing – Cycles devices through temperature extremes to evaluate solder joint fatigue and component reliability.
- Highly Accelerated Life Testing (HALT) – Applies escalating thermal and vibration stress beyond specification to find design weaknesses quickly.
- Highly Accelerated Stress Screening (HASS) – A production-level derivative of HALT used to screen out defective units.
- Electromagnetic Compatibility (EMC) Testing – Verifies a device neither emits excessive electromagnetic interference nor is unduly affected by it.
- Electrostatic Discharge (ESD) Testing (IEC 61000-4-2) – Confirms device robustness against static discharge events during handling and use.
- Vibration and Mechanical Shock Testing (MIL-STD-810) – Evaluates durability under transportation and operational vibration/shock.
- Humidity and Environmental Chamber Testing – Assesses performance and corrosion resistance under controlled humidity and temperature.
- Insulation Resistance and Dielectric Withstand Testing – Verifies electrical isolation between circuits and enclosure to prevent shock hazards.
- Signal Integrity Testing – Evaluates high-speed signal quality (eye diagrams, jitter) on circuit boards and interconnects.
- Power Supply Ripple and Regulation Testing – Confirms power supplies maintain stable output under varying load conditions.
- Boundary Scan (JTAG) Testing – Tests interconnections on complex digital boards without physical test probes.
- Reliability / MTBF Prediction Testing – Combines component and stress data to estimate mean time between failures.
- Solderability Testing (J-STD-002) – Verifies component leads and PCB pads will form reliable solder joints during assembly.
- RoHS/REACH Compliance Testing – Screens for restricted hazardous substances in electronic components and assemblies.
- Salt Fog / Corrosion Testing – Evaluates connector and enclosure corrosion resistance for outdoor or marine electronics.
Electronics Test Method Comparison
Property Evaluated | Representative Method | Typical Standard |
|---|
Manufacturing defects | ICT, AOI, X-ray | IPC-A-610 |
Reliability | Burn-in, HALT/HASS | MIL-HDBK-217 |
EMC/ESD | Radiated/conducted emissions, ESD | IEC 61000 series |
Environmental durability | Thermal cycling, humidity, vibration | MIL-STD-810 |
Compliance | RoHS/REACH screening | IEC 62321 |
Applications by Industry
Consumer Electronics – Functional and EMC testing to meet fast product cycles and regulatory certification requirements. Automotive Electronics – Extensive thermal cycling and vibration testing given underhood and cabin environmental extremes. Aerospace & Defence – MIL-STD environmental and reliability testing for mission-critical, long-service-life equipment. Industrial Controls – EMC and environmental testing for equipment operating in electrically noisy factory environments. Telecommunications – Signal integrity and EMC testing for high-speed data equipment and infrastructure.
Also Read – ASTM D2684: Permeability of Thermoplastic Containers — Test Guide
Industry Standards Referencing Electronics Testing
IPC-A-610, IPC-J-STD-002, MIL-STD-810, MIL-STD-883, IEC 61000 series, IEC 62321 (RoHS), JEDEC JESD22 (reliability)
Advantages and Limitations
Advantages: Catches manufacturing defects before field deployment; predicts long-term reliability through accelerated stress testing; ensures regulatory compliance for global market access. Limitations: HALT/HASS results require experienced interpretation to distinguish genuine design weaknesses from test-induced artifacts; full EMC chamber testing requires significant facility investment; accelerated life testing carries inherent uncertainty translating to real-world years.
Conclusion
Electronics reliability is built through layered testing – catching assembly defects early, stressing designs beyond normal limits to expose weaknesses, and verifying electromagnetic and environmental compliance before a product reaches the field. That layered approach is what allows increasingly dense, complex electronic designs to remain reliable in demanding real-world conditions.
Frequently Asked Questions (FAQs)
Which tests detect PCB manufacturing defects? Automated optical inspection, X-ray inspection, in-circuit testing, flying-probe testing, and electrical continuity testing are commonly used to identify defects.
Why is thermal cycling testing performed? Thermal cycling exposes electronics to repeated temperature changes to detect solder-joint fatigue, cracking, delamination, and material expansion issues.
What is burn-in testing? Burn-in testing operates components or assemblies at elevated temperature and electrical stress to identify early-life failures.
How are solder joints inspected? Solder joints may be evaluated using optical microscopy, X-ray imaging, dye-and-pry testing, cross-sectioning, and SEM/EDS analysis.
How is resistance to moisture and contamination tested? Humidity testing, temperature-humidity-bias testing, ionic contamination analysis, and surface-insulation-resistance testing are commonly used.
