Transformer Oil Testing Explained

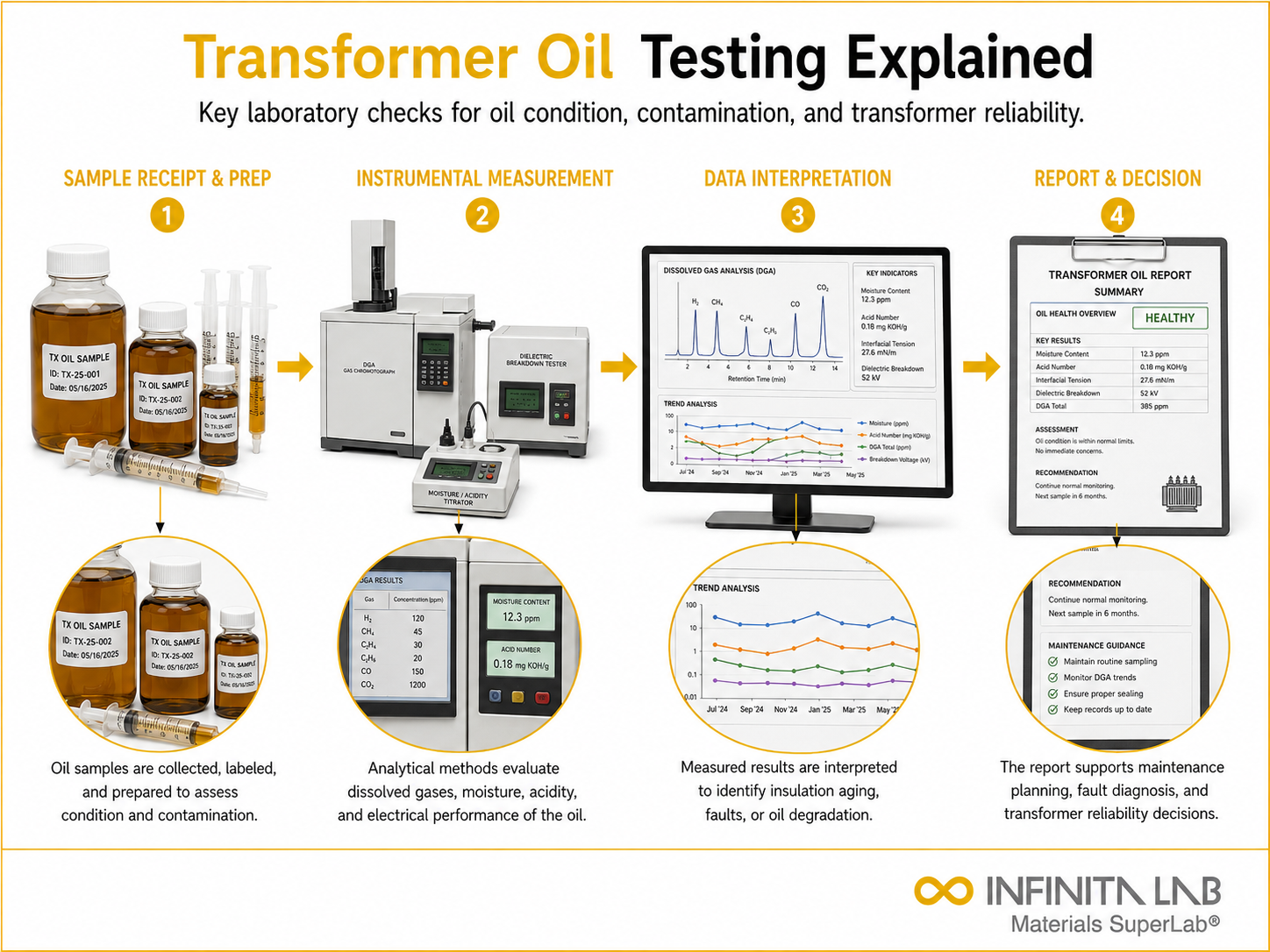

What Is Transformer Oil Testing?
Transformer oil testing evaluates the dielectric, chemical, and physical properties of the insulating mineral oil in power transformers, circuit breakers, and other high-voltage oil-filled equipment. The oil serves as both electrical insulation and a heat transfer medium. As the oil ages in service, it degrades through oxidation, moisture contamination, and thermal cracking, reducing insulating performance and increasing failure risk. Periodic oil testing is the primary diagnostic tool for assessing transformer health without taking equipment out of service.
Oil testing programs range from routine surveillance at defined intervals to in-depth investigations triggered by abnormal readings. The IEC and IEEE standards governing transformer oil testing define both the test methods and the limit values that separate acceptable from actionable conditions. Utilities, industrial facilities, and service companies use oil test results to prioritise maintenance, schedule oil treatment or replacement, and make repair-versus-retire decisions for aging transformers.
Key Transformer Oil Tests
Dissolved Gas Analysis (DGA)
DGA is the most diagnostically powerful transformer oil test. Electrical faults and thermal degradation dissolve characteristic gases into the oil. Partial discharge generates hydrogen and methane. Thermal faults produce ethylene and ethane. Arcing generates acetylene. These gases are extracted and quantified by gas chromatography. The ratio and concentration of dissolved gases diagnose fault type and severity per IEEE C57.104 and IEC 60599. A single DGA showing acetylene above threshold requires immediate investigation. Trend analysis of sequential DGA results tracks fault development over time.
Dielectric Breakdown Voltage (BDV)
BDV measures the voltage at which the oil fails electrically – at which a spark bridges the gap between two electrodes at a defined spacing. Clean, dry oil has BDV above 30 kV (ASTM D1816) or 40 kV (IEC 60156). Moisture and particulate contamination reduce BDV significantly – water at 30 ppm can reduce BDV by 50%. ASTM D1816 is used in North America; IEC 60156 internationally. BDV is the first test performed after oil processing to confirm treatment was effective.
Moisture Content (Karl Fischer)
Water in transformer oil reduces dielectric strength and accelerates paper insulation aging. Karl Fischer titration (ASTM D1533) measures water content in parts per million by weight. Acceptable moisture levels depend on voltage class: oil in equipment rated above 300 kV should contain less than 10 ppm; equipment below 69 kV may tolerate up to 35 ppm. Moisture distributes between oil and paper based on temperature – oil moisture readings require temperature correction for accurate assessment.
Also Read – ASTM D2684: Permeability of Thermoplastic Containers — Test Guide
Acid Number
The acid number measures oil acidity, expressed as milligrams of KOH required to neutralise the acid in one gram of oil (mg KOH/g). New oil has an acid number below 0.03 mg KOH/g. As oil oxidises in service, organic acids accumulate. Acids attack paper insulation and metal surfaces, forming sludge that deposits on windings and impedes heat transfer. ASTM D974 and IEC 62021 cover acid number determination. An acid number above 0.2 mg KOH/g is typically the threshold for oil reclamation or replacement.
Interfacial Tension (IFT) and Furan Analysis
IFT measures tension at the oil-water interface. New mineral oil has IFT above 40 mN/m; values below 22 mN/m indicate significant oxidative degradation. ASTM D971 covers IFT measurement. Furan analysis measures cellulose paper degradation products that dissolve into the oil. 2-furfuraldehyde (2-FAL) concentrations above 1,000 ppb (IEC 61198, ASTM D5837) indicate significant paper degradation and reduced remaining insulation life – the only indirect method for assessing paper condition without opening the transformer.
Industry Specifications
- Dissolved Gas Analysis: IEEE C57.104, IEC 60599, ASTM D3612 (gas extraction)
- Dielectric Breakdown Voltage: ASTM D1816, ASTM D877, IEC 60156
- Moisture Testing: ASTM D1533 (Karl Fischer), IEC 60814
- Acid and Oxidation: ASTM D974, IEC 62021 (acid number), ASTM D971 (IFT)
- Paper Insulation Condition: IEC 61198, ASTM D5837 (furans), IEEE C57.91
- New Oil Specifications: ASTM D3487 (mineral oil for transformers), IEC 60296
Conclusion
Transformer oil testing is the primary tool for assessing transformer health without removing equipment from service. DGA identifies and characterises internal faults by dissolved gases. BDV and moisture testing confirm dielectric integrity. Acid number and IFT track oxidative aging. Furan analysis assesses paper insulation condition. No single test tells the complete story – a comprehensive program uses several tests together and interprets results as trends over time rather than single-point measurements. Trending is what separates a maintenance-driven approach from a reactive one.
How often should transformer oil be tested? IEEE C57.104 recommends DGA annually for transformers above 100 kVA. Critical or aging transformers may warrant quarterly DGA. A new transformer baseline test at commissioning is essential for trend comparison. Routine surveillance covering BDV, moisture, acid number, and IFT is typically performed annually on the same schedule as DGA. When DGA shows abnormal gas levels, the interval is shortened - sometimes to monthly or weekly - to track fault progression rate.
What does acetylene in DGA indicate? Acetylene (C2H2) is produced only at very high temperatures (above approximately 700 degrees C) or by high-energy electrical discharge (arcing). Its presence in dissolved gas analysis, even at concentrations above 1-2 ppm, is a serious indicator of arcing or severe thermal faults. IEEE C57.104 classifies acetylene concentrations above 35 ppm as Condition 4 - immediate action required. Acetylene warrants prompt investigation regardless of other test results.
How is a transformer oil sample collected properly? The sampling valve is flushed with several volumes of oil before the sample is collected to clear static oil from the valve and tubing. Samples for DGA are collected in glass syringes (60-100 mL) without air bubbles, capped immediately, and shipped cold for analysis within 72 hours. Improper sampling - introducing air into a DGA sample or allowing moisture ingress - produces false results. Samples for physical and chemical testing are collected in clean glass or plastic bottles per the applicable test requirements.
What is the difference between mineral oil and synthetic ester transformer fluid? Mineral transformer oil is a petroleum-derived hydrocarbon fluid. Synthetic ester fluids (FR3, MIDEL 7131) are based on fatty acid esters. Synthetic esters have higher flash points (above 300 degrees C vs about 145 degrees C for mineral oil), biodegradability, and better low-temperature behavior. They are used in fire-sensitive locations (substations in buildings, offshore platforms). Test methods and limits differ between fluid types - IEC 62770 covers testing of ester fluids; mineral oil follows IEC 60296 and ASTM D3487.
Can transformer oil be reconditioned rather than replaced? Yes. Oil reclamation using activated clay removes polar oxidation products, reducing acid number and restoring IFT. Reclamation systems can be applied online without deenergizing the transformer. After reclamation, BDV testing confirms dielectric properties are restored. Vacuum oil processing removes moisture and dissolved gases. Oil replacement becomes necessary when degradation is too advanced for reclamation, or when furan analysis indicates the paper insulation is significantly degraded - at that point, oil reclamation extends oil life but cannot reverse paper aging.
