Wires & Cables Testing: Key Methods, Properties & Standards Overview
Wires and cables are the circulatory system of modern civilization — connecting power generation to consumers, transmitting data at terabit speeds, enabling communication networks, and energizing industrial machinery. The performance and reliability of cables directly determine the safety and continuity of every electrical and electronic system they serve. Comprehensive wires and cables testing validates that these products meet the electrical, mechanical, thermal, and environmental performance requirements of their intended application — from household wiring to aerospace harnesses to submarine telecommunications cables.
Why Wires and Cables Testing Matters
Failures in wiring systems can cause electrical fires, equipment damage, network outages, safety incidents, and economic disruption. Industry statistics consistently identify wiring faults as a leading cause of electrical fires in residential, commercial, and industrial environments. In safety-critical applications — aircraft wiring, power grid infrastructure, automotive electrical systems — cable failure can have catastrophic consequences.
Testing ensures that cables:
- Carry specified current loads without overheating
- Withstand specified voltage without insulation breakdown
- Resist mechanical stresses (bending, tension, abrasion) of their installation and service environment
- Perform reliably across the temperature range of their application
- Meet flame propagation and smoke emission requirements for safety in enclosed spaces

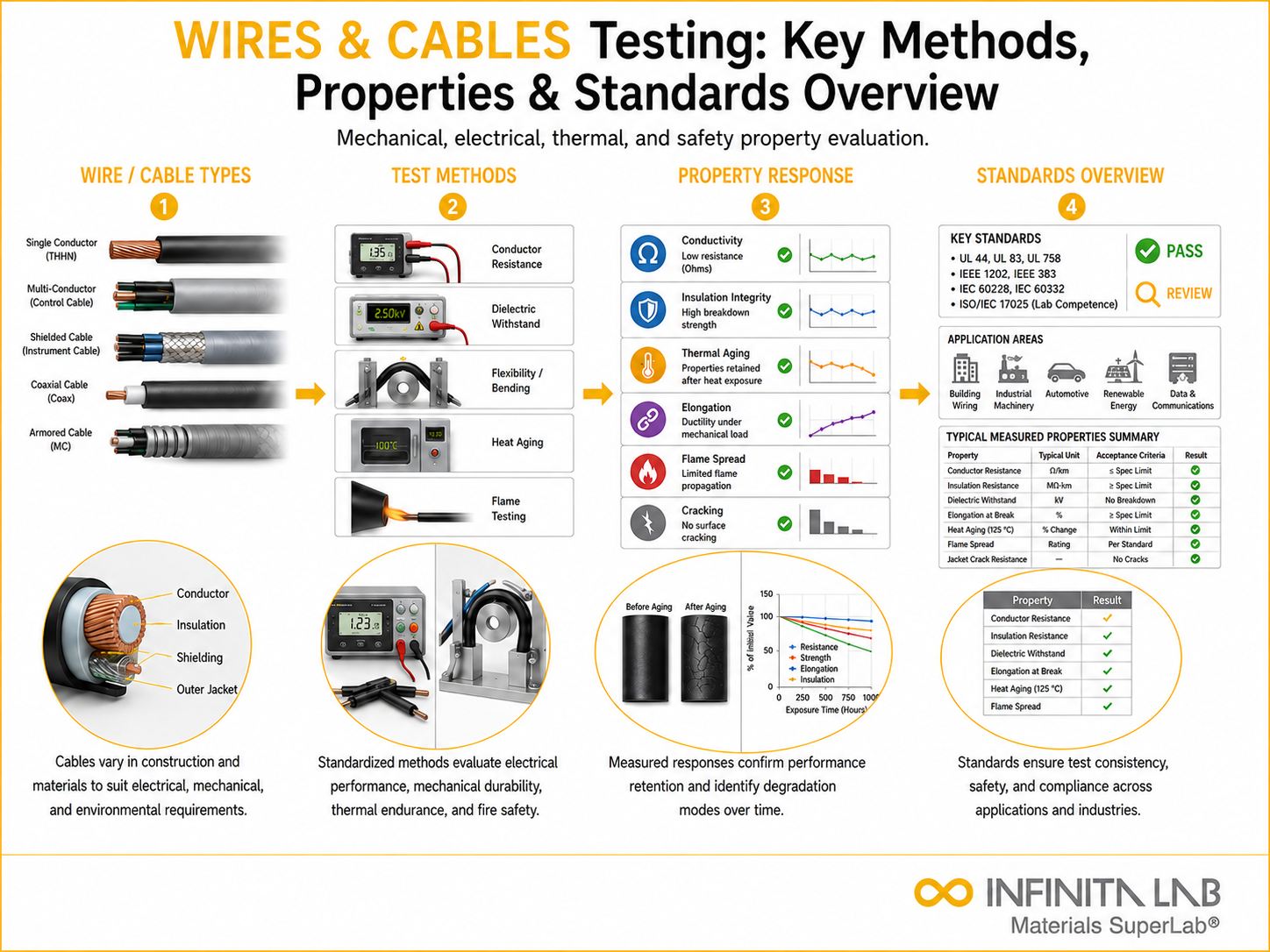

Electrical Performance Testing
Conductor Resistance Testing
The DC resistance of a wire conductor directly determines resistive heat generation under load and voltage drop over cable length. Resistance is measured per unit length (Ω/km) and compared to specification for the conductor cross-section and material (copper, aluminum, or alloy). Out-of-spec resistance indicates incorrect conductor size, alloy substitution, or manufacturing defects.
Dielectric Strength Testing
Dielectric strength (ASTM D149, IEC 60243) measures the maximum electric field a cable’s insulation can withstand without breakdown. A voltage is applied between the conductor and the outer sheath and ramped until insulation breakdown occurs. The dielectric strength rating defines the maximum safe operating voltage.
Insulation Resistance Testing
Insulation resistance (measured in MΩ or GΩ per unit length) quantifies the quality of the electrical insulation. Low insulation resistance indicates moisture ingress, contamination, insulation degradation, or manufacturing defects that would allow leakage current to flow — causing safety hazards and signal degradation in data cables.
Capacitance and Inductance
In high-frequency signal cables and RF cables, capacitance per unit length and inductance affect signal propagation speed, impedance matching, and signal integrity. Measurements confirm that the cable meets its transmission line specifications.
Mechanical Testing
Tensile Strength and Elongation
Individual conductors and complete cables are tested for tensile strength and elongation at break (ASTM B3 for copper wire). This confirms that conductors can survive installation stresses (pulling through conduit, routing around bends) and that insulation or jacketing materials have adequate elongation to accommodate deformation without cracking.
Bend and Flex Testing
Cables in mobile applications (robotics, festoon systems, automotive door harnesses) must withstand millions of flex cycles without conductor breakage or insulation failure. Cyclic flex testing to defined bend radii and cycle counts validates flex life.
Abrasion Resistance
Cable jackets exposed to mechanical contact must resist abrasive wear that could expose conductors or compromise insulation. Abrasion resistance tests (abrasive wheel or sand paper methods) quantify the jacket’s durability.
Crush and Impact Testing
Cables installed in areas exposed to mechanical impact or vehicle traffic must withstand crush forces without conductor shorting or insulation breakdown.
Thermal Testing
Heat Resistance
Cable insulation and jacketing materials are tested for dimensional stability and electrical performance at the maximum rated temperature — critical for cables in engine compartments, process equipment, or outdoor direct burial applications. ASTM D2219 and UL standards specify appropriate temperature aging conditions.
Cold Bend and Cold Impact
For cables installed in cold climates, low-temperature flexibility (cold bend testing) verifies that the jacket does not crack when bent at minimum installation temperature (commonly -40°C or -55°C).
Flame Retardancy and Smoke Emission
Cables installed in buildings and aircraft must meet flame propagation and smoke toxicity requirements (UL 1581, IEC 60332, ASTM E84) to prevent fire spread and protect occupants. These tests measure how far flame propagates along the cable under defined fire conditions and how much smoke is generated.
Industry Applications and Standards
Power distribution — ASTM B3 (copper wire), IEC 60228, UL 1581 (general wire and cable)
Telecommunications — TIA/EIA-568 (data cable performance), IEC 61156
Automotive — SAE J1128, ISO 6722 (low-voltage automotive cables)
Aerospace — MIL-W-22759, AS22759 (military and aerospace wire), ASTM F1292
Marine — IEEE 45 (marine cable)
Industrial — UL 508, IEC 60502 (medium-voltage power cable)
Partnering with Infinita Lab for Optimal Results
Infinita Lab addresses the most frustrating pain points in the wires and cable testing process: complexity, coordination, and confidentiality. Our platform is built for secure, simplified support, allowing engineering and R&D teams to focus on what matters most: innovation. From kickoff to final report, we orchestrate every detail—fast, seamlessly, and behind the scenes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the most important electrical test for power cables? Insulation resistance and dielectric strength testing are the most critical electrical tests, confirming that the insulation can safely contain the operating voltage without breakdown or leakage.
What does conductor resistance testing verify? It confirms that the conductor cross-section and material composition match the specification, ensuring that the cable will not overheat under its rated current load or produce excessive voltage drop.
What is flex testing for cables? Cyclic bend testing subjects cables to repeated bending at defined radii and cycle counts, verifying that neither conductor breakage nor insulation cracking will occur during the expected service life in mobile or flexible applications.
Why is flame retardancy testing important for cables? In buildings and vehicles, cable fires are a significant risk. Flame retardancy testing confirms that the cable meets safety standards that prevent or limit fire propagation through the cable installation.
How are telecommunications data cables tested? TIA/EIA-568 specifies performance requirements for structured cabling — measuring attenuation, crosstalk, return loss, and propagation delay to confirm that the cable supports the specified data rate and transmission distance.
