Surface Treatment Testing Services: Validation, Adhesion & Chemical Analysis

What Are Surface Treatment Services?

Surface treatment services encompass a broad range of industrial processes that modify the surface layer of a component to improve its functional performance — including corrosion resistance, wear resistance, electrical properties, aesthetics, and adhesion. Surface treatments are applied to metals, polymers, ceramics, and composites across the aerospace, automotive, electronics, and heavy equipment manufacturing industries.

Unlike surface coatings that add a distinct layer on top of the substrate, some surface treatments (such as anodising, conversion coating, and case hardening) chemically or physically alter the substrate surface itself.

Major Surface Treatment Processes

Electroplating

Electroplating deposits a thin metallic coating (nickel, chromium, zinc, copper, gold, silver, tin) on a conductive substrate through electrochemical reduction. Applications include corrosion protection (zinc plating on fasteners), wear resistance (hard chromium on hydraulic shafts), electrical conductivity (copper on PCB tracks), and decorative finishing.

Anodising

Anodising electrochemically grows a thick, hard aluminium oxide layer on aluminium substrates. Hard anodising (Type III per MIL-A-8625) produces coatings up to 100 µm thick with hardness exceeding 400 HV, used on aerospace hydraulic components and industrial tooling.

Phosphate Conversion Coating

Zinc, manganese, or iron phosphate coatings are deposited by chemical reaction with the steel surface. Phosphate coatings provide a microporous surface that improves paint adhesion and corrosion resistance. Manganese phosphate provides excellent break-in wear resistance for gears and engine components.

Chromate and Trivalent Chromium Conversion Coatings

Chromate conversion coatings (Alodine/Iridite) provide corrosion inhibition and paint adhesion on aluminium and zinc alloys. Due to RoHS and REACH restrictions on hexavalent chromium (Cr VI), trivalent chromium alternatives (TCP coatings) are increasingly replacing traditional chromate.

Thermal Spray

HVOF, plasma spray, and arc spray deposit metallic, ceramic, and cermet coatings onto large components for wear, corrosion, and thermal barrier protection. Applications include turbine blade thermal barrier coatings and pump component wear protection.

Passivation

Passivation of stainless steel (ASTM A380, ASTM A967) removes free iron and other contaminants from the surface and strengthens the passive chromium oxide film, maximising corrosion resistance. It is a mandatory step after machining or fabrication of stainless steel components for aerospace and medical applications.

Black Oxide

Black oxide is a chemical conversion coating applied to steel, stainless steel, and copper that provides mild corrosion resistance, reduces light reflection, and improves lubrication retention. Widely used for tools, firearms components, and precision optics.

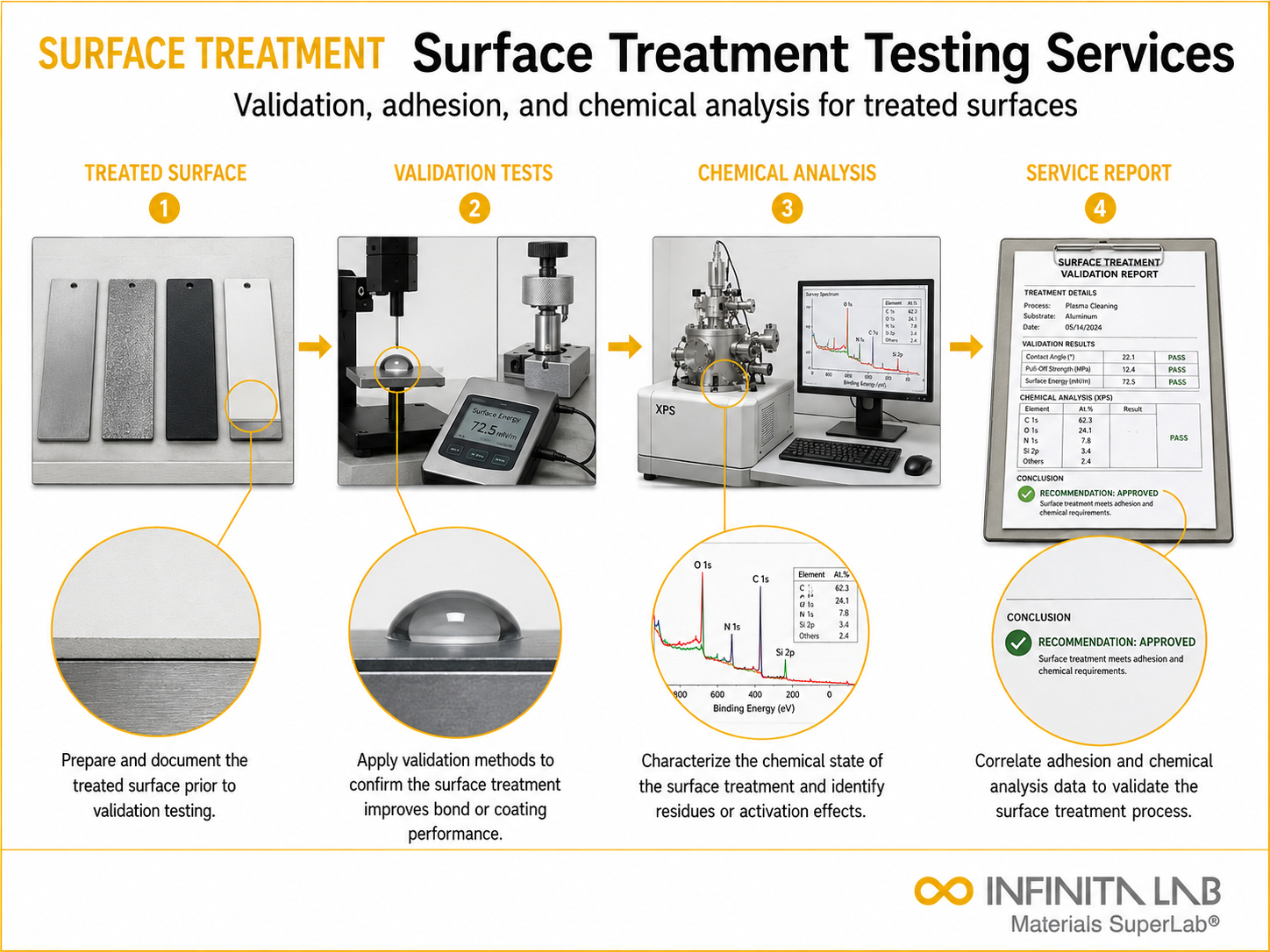

Quality Testing of Surface Treatments

Surface treatment quality is verified by:

• Coating thickness measurement: Magnetic, eddy current, or XRF methods
• Adhesion testing: Cross-cut (ASTM D3359), pull-off (ASTM D4541), or scratch test
• Corrosion resistance: Salt spray (ASTM B117), humidity, and electrochemical testing
• Hardness: Microhardness (Vickers, Knoop) per ASTM E384
• Surface appearance: Visual and optical inspection against reference standards
• Chemical composition: XRF, ICP-MS, or SEM-EDS for coating identification and SVHC screening

Conclusion

Surface treatment services are essential for enhancing the functional performance and longevity of engineering components by tailoring their surface properties without altering the bulk material. Through processes such as electroplating, anodising, conversion coatings, thermal spraying, and passivation, manufacturers can significantly improve corrosion resistance, wear behaviour, adhesion, and overall durability. These treatments not only extend service life but also ensure compliance with stringent industry standards, making them indispensable across aerospace, automotive, electronics, and industrial applications.
