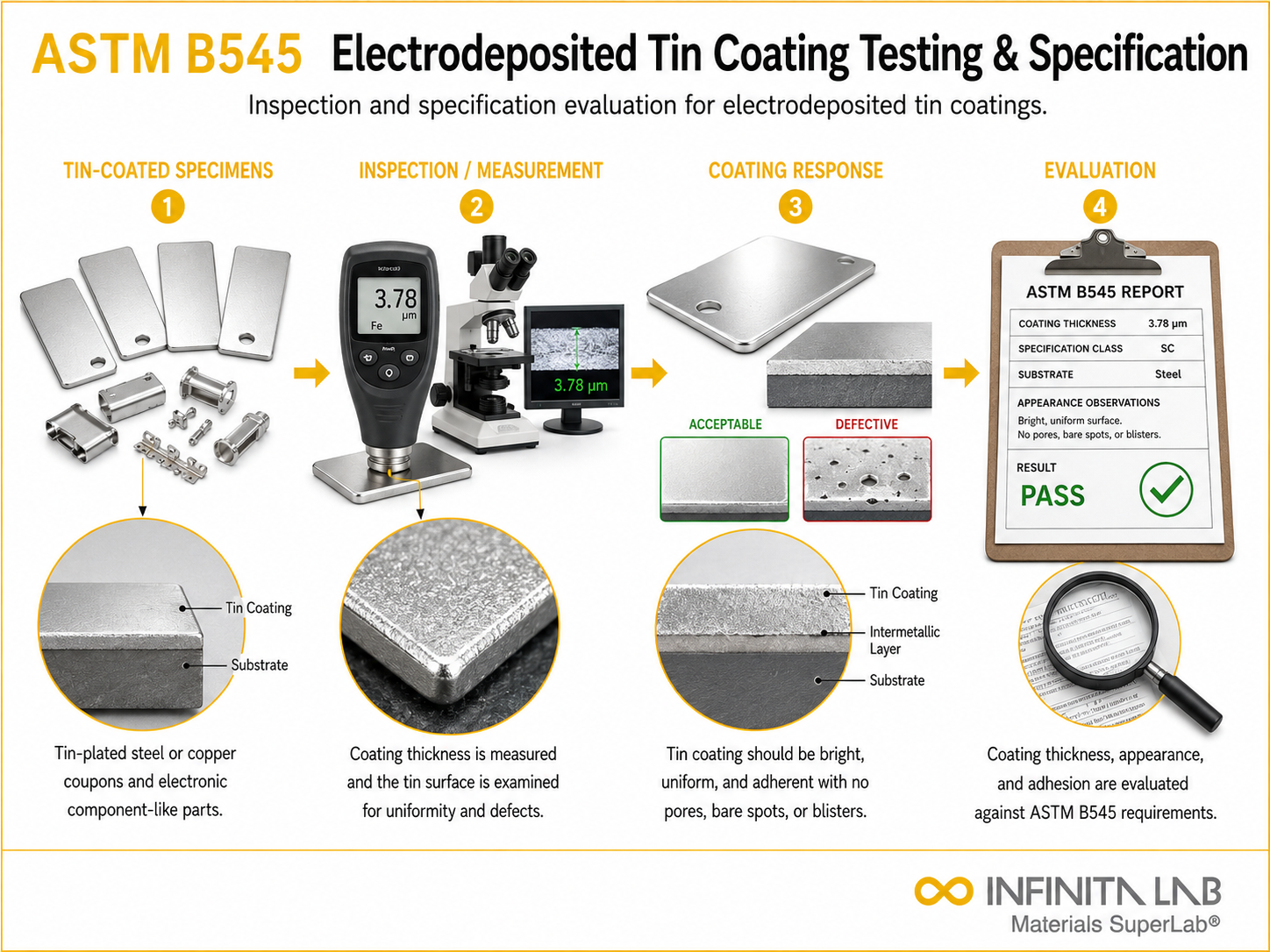

ASTM B545 Electrodeposited Tin Coating Testing & Specification
ASTM B545 aims to determine requirements for electrodeposited (electroplated) coatings of tin applied to metallic articles. Tin coatings are used to provide a low contact resistance surface, to protect against corrosion to facilitate soldering. The values are stated as per international standards.
TRUSTED BY
Precision-driven testing for dimensional accuracy and compliance
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
Overview
ASTM B545 specifies requirements for electrodeposited tin coatings applied on metallic substrates to enhance corrosion resistance, solderability, and surface protection. The standard defines coating thickness, adhesion, appearance, and testing requirements to ensure consistent quality and performance across industrial applications.
This specification is widely used in electronics, automotive, and manufacturing industries where tin coatings provide reliable electrical conductivity and protection against oxidation. ASTM B545 ensures uniform coating characteristics, enabling manufacturers to meet performance expectations and maintain compliance with quality standards.
Scope, Applications, and Benefits
Scope
ASTM B545 covers electrodeposited tin coatings applied to various metallic substrates for functional and decorative purposes. It includes requirements for coating thickness, finish, adhesion, and inspection criteria to ensure performance and durability.
Includes:
- Electrodeposited tin coatings on metal substrates
- Coating thickness classifications
- Adhesion and appearance requirements
- Surface finish and quality criteria
- Testing and inspection procedures
Applications
- Electronic connectors and terminals
- Printed circuit board components
- Automotive electrical parts
- Food processing equipment coatings
- Fasteners and hardware
- Electrical contacts and conductors
Benefits
- Excellent corrosion resistance
- Improved solderability for electronic components
- Good electrical conductivity
- Uniform and smooth surface finish
- Enhanced protection against oxidation
- Cost-effective coating solution
Test Process
Surface Preparation
Substrates are cleaned and pretreated to remove contaminants and ensure proper coating adhesion.
1Electroplating Process
Tin coating is electrochemically deposited for controlled thickness and uniformity.
2Thickness & Adhesion Testing
Coating thickness and adhesion are evaluated using standardized measurement and testing methods.
3Inspection & Evaluation
Finished coatings are inspected for defects, uniformity, and compliance.
4Technical Specifications
| Parameter | Details |
|---|---|
| Coating Type | Electrodeposited tin coating |
| Substrate | Metallic base materials such as steel, copper, or alloys |
| Coating Thickness | Defined classes based on application requirements |
| Finish Types | Matte, bright, or reflowed tin finishes |
| Corrosion Resistance | Enhanced protection against oxidation and environmental exposure |
| Solderability | High solderability for electronic applications |
| Surface Quality | Smooth, uniform, and free from defects |
Instrumentation Used for Testing
- Electroplating setup
- Coating thickness gauge
- Adhesion testing equipment
- Microscopes for surface inspection
- pH meter for bath control
- Power supply for electroplating
Results and Deliverables
- Coating thickness measurement report
- Adhesion test results
- Surface inspection report
- Compliance certification as per ASTM B545
- Visual and microscopic evaluation results
- Test summary with acceptance criteria
Frequently Asked Questions
ASTM B545 is used to specify requirements for electrodeposited tin coatings on metal substrates, ensuring consistent coating thickness, adhesion, corrosion resistance, and solderability for applications in electronics, automotive, and industrial components.
Tin coatings improve solderability and electrical conductivity while protecting components from oxidation and corrosion, making them essential for reliable performance in electronic connectors, circuits, and assemblies.
Solderability testing ensures that the tin-coated surface can form reliable solder joints, which is critical for electronic assembly and long-term performance.
The standard focuses on coating specifications and does not cover all environmental conditions, so additional testing may be required for specific applications.
Thickness classes define the minimum coating thickness required for different applications, ensuring adequate protection and performance under specific operating conditions.
