Non-Destructive Testing (NDT): Methods and When to Use Them

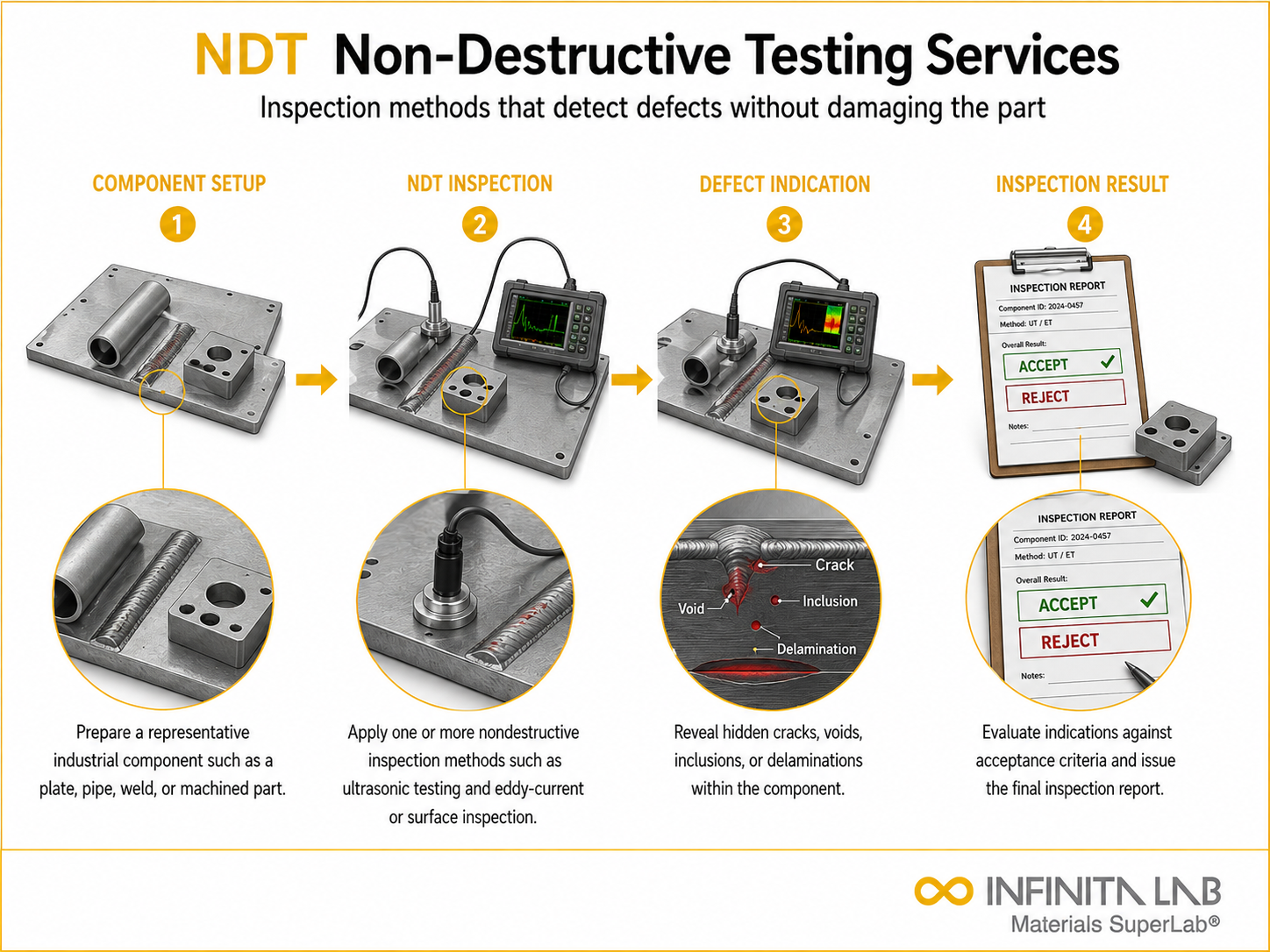

Representative Infinita Engineering Visual explaining the four-step workflow for Non Destructive Testing Ndt Services.What Is Non-Destructive Testing?
Non-destructive testing (NDT) evaluates a material, component, or system’s properties and integrity without damaging or permanently altering it — allowing full inspection coverage while keeping the part in service or available for further use. The six most common NDT methods are visual testing (VT), liquid penetrant testing (PT), magnetic particle testing (MT), eddy current testing (ET), radiographic testing (RT), and ultrasonic testing (UT); no single method detects every type of flaw, so a comprehensive inspection program typically combines several.
Visual Testing (VT)
The most basic NDT method — direct examination by eye or with optical aids, looking for surface cracks, corrosion, misalignment, or other visible damage. VT is frequently the first step in other NDT sequences, confirming the surface is clean and accessible before ultrasonic, radiographic, or penetrant methods proceed.
Liquid Penetrant Testing (PT)
A liquid dye — fluorescent or visibly colored — is applied to the surface, allowed to seep into surface-breaking flaws via capillary action, and the excess is removed. A developer is then applied to draw the trapped penetrant back out, making cracks, laps, and porosity visible. PT works on both ferrous and non-ferrous materials, making it a common complement to magnetic particle testing, which only works on ferromagnetic materials.
Magnetic Particle Testing (MT)
A magnetic field is induced in a ferromagnetic part, and iron particles are applied to the surface. Where a surface or near-surface flaw disrupts the magnetic field, particles cluster to reveal the defect’s shape and location. MT is limited to magnetic materials and is widely used on pressure vessels, boilers, and structural steel welds.
Eddy Current Testing (ET)
An alternating current coil induces eddy currents in a conductive part; discontinuities measurably disturb the resulting electromagnetic field. ET is especially effective for tubing and thin-walled components, including tubing already in service, without requiring direct contact or coupling fluid.
Radiographic Testing (RT)
X-rays or gamma rays pass through the part onto film or a digital detector, revealing internal voids, inclusions, and cracks as density variations in the resulting image. RT provides a permanent visual record but requires radiation safety controls and is generally slower and more expensive per inspection than ultrasonic methods.
Ultrasonic Testing (UT)
High-frequency sound waves (typically 0.5-15 MHz) are introduced into the material and reflect from internal flaws back to the transducer, allowing detection, location, and sizing of discontinuities with high accuracy. UT provides full volumetric coverage and is the leading method for weld inspection, forging integrity checks, and thickness monitoring for corrosion.
Also Read – Metal Fabrication Inspection Methods: NDT, Visual & Dimensional Testing
Industry Specifications Referencing NDT Methods
- ASTM E1444 (MT), E165 (PT), E1417, E2375: method-specific NDT standards
- AWS D1.1, ASME Section V: weld and pressure-vessel NDT requirements
- ASNT SNT-TC-1A: personnel qualification and certification standard across all NDT methods
Conclusion
NDT method selection is a matching exercise, not a hierarchy — surface-only flaws call for PT or MT, internal volumetric defects call for UT or RT, and thin-walled tubing calls for ET, meaning the right inspection program is usually a combination of methods chosen to cover each other’s blind spots.
When should visual testing be used? Visual testing is usually the first inspection method used because it is fast, economical, and suitable for identifying visible defects. It can detect surface cracks, corrosion, deformation, misalignment, poor weld profiles, coating damage, and leakage. Borescopes, cameras, magnifiers, and measurement tools may be used when direct access is limited.
When is ultrasonic testing appropriate? Ultrasonic testing is commonly used to detect internal cracks, voids, laminations, inclusions, and thickness loss. It is suitable for metals, composites, plastics, welds, forgings, and pressure-containing equipment. Ultrasonic testing is especially useful when access is available from only one side of the component and immediate results are required.
When should liquid penetrant testing be selected? Liquid penetrant testing is used to detect defects that are open to the surface, including fine cracks, seams, laps, and porosity. It can be applied to nonporous metals, ceramics, plastics, and glass. The method is useful for both ferromagnetic and non-ferromagnetic materials, but it cannot detect defects located entirely below the surface.
What is magnetic particle testing best suited for? Magnetic particle testing is used to locate surface and slightly subsurface discontinuities in ferromagnetic materials such as iron, nickel, cobalt, and many steels. It is frequently used for welds, shafts, gears, castings, and forged components. The method is sensitive to fine cracks but cannot be applied to aluminum, copper, or most stainless steels.
When is eddy current testing used? Eddy current testing is commonly used for conductive materials to detect surface and near-surface cracks, corrosion, material thinning, and changes in conductivity. Typical applications include aircraft structures, heat-exchanger tubes, fastener holes, wires, and thin metal components. It can provide rapid inspection without direct contact, but results may be affected by geometry and surface condition.
