Eddy Current Testing (ECT): Principles, Methods, and Applications

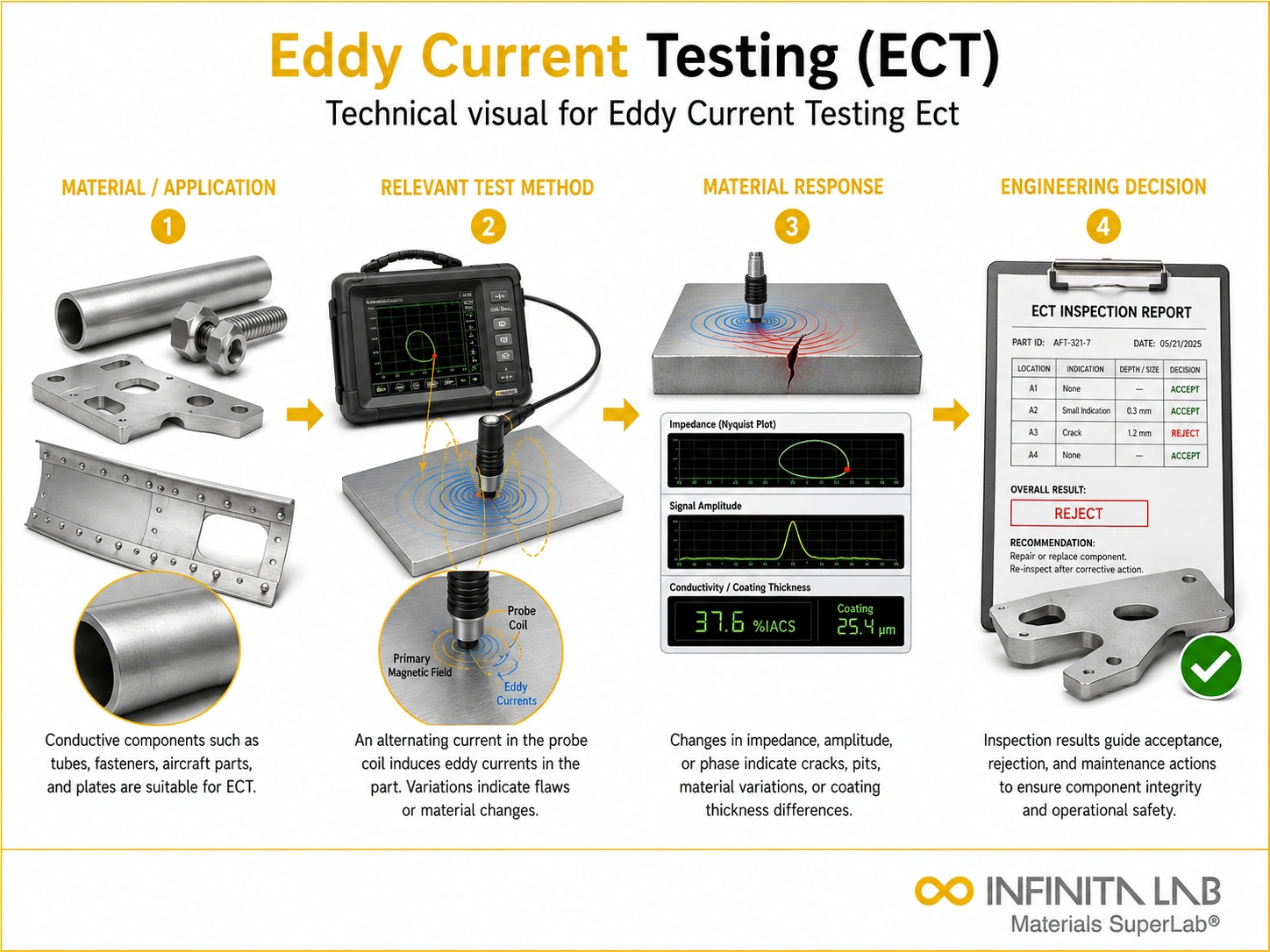

Representative Infinita Engineering Visual explaining the four-step workflow for Eddy Current Testing Ect.What Is Eddy Current Testing?
ASTM E426 is the Standard Practice for Electromagnetic (Eddy Current) Examination of Seamless and Welded Tubular Products made of relatively low-conductivity materials — titanium, austenitic stainless steel, and similar nickel alloys. It’s a nondestructive method for locating discontinuities such as cracks, laps, and pits without cutting or damaging the part.
Principle of Operation
An electromagnetic exciter coil induces eddy currents in the tube wall. Discontinuities alter the electromagnetic response, which is picked up by a sensor and converted into an audio, visual, or marked indication. This practice covers both encircling-coil and probe-coil techniques and applies to tubular products ranging from 0.125 to 5 in. in diameter and 0.005 to 0.250 in. in wall thickness.
Test Procedure
- Select coil configuration (encircling coil for full-circumference scanning, or probe coil for localized/internal scanning) based on tube geometry and access
- Standardise the equipment using reference standards with known, calibrated discontinuities (notches or drilled holes) matching the type expected in production
- Pass the tube through or over the coil at a controlled scanning speed
- Monitor signal response against the calibrated reference thresholds
- Flag and further evaluate any indication exceeding the rejection criteria
Interpreting Results
Not every signal indicates a true defect — eddy current response is also sensitive to variations in conductivity, chemical composition, permeability, and geometry that arise from normal processing. Distinguishing genuine discontinuities from these benign variations is a key part of technique qualification and operator training.
Industry Specifications Referencing ASTM E426
- ASTM E215: companion standard for aluminium-alloy tube examination
- Common applications: heat exchanger tubing inspection (including tubing already installed in service), aerospace and chemical process tubing
Also Read – Pneumatic & Hydraulic System Testing: Flow, Pressure & Seal Integrity
Conclusion
Eddy current testing gives a fast, 100%-coverage nondestructive check for tubing where a single undetected flaw can cause a costly in-service failure. Because signal response is geometry- and alloy-sensitive, proper calibration against known reference standards is what separates a reliable ECT program from one prone to false calls.
How does Eddy Current Testing work? An alternating current passes through a probe coil, creating a magnetic field that induces eddy currents in the test material. Defects or material variations change the current flow, producing a signal that can be analysed.
What defects can ECT detect? ECT can identify surface cracks, corrosion, pitting, wall thinning, voids and some subsurface discontinuities. Its effectiveness depends on defect orientation, depth, size and inspection frequency.
What materials can be tested? ECT can inspect conductive materials such as aluminium, copper, titanium, stainless steel and nickel alloys. Conventional eddy current testing cannot directly inspect nonconductive materials such as plastics or ceramics.
What are the main Eddy Current Testing methods? Common methods include surface scanning, encircling-coil testing, internal tube inspection, pulsed eddy current and eddy current array testing. The method is selected according to component geometry and the expected defect type.
How does test frequency affect ECT results? Higher frequencies provide greater sensitivity to surface defects but have limited penetration. Lower frequencies penetrate deeper into the material but may offer reduced sensitivity to small surface discontinuities.
