Forging Inspection and Testing: NDT and Quality Methods

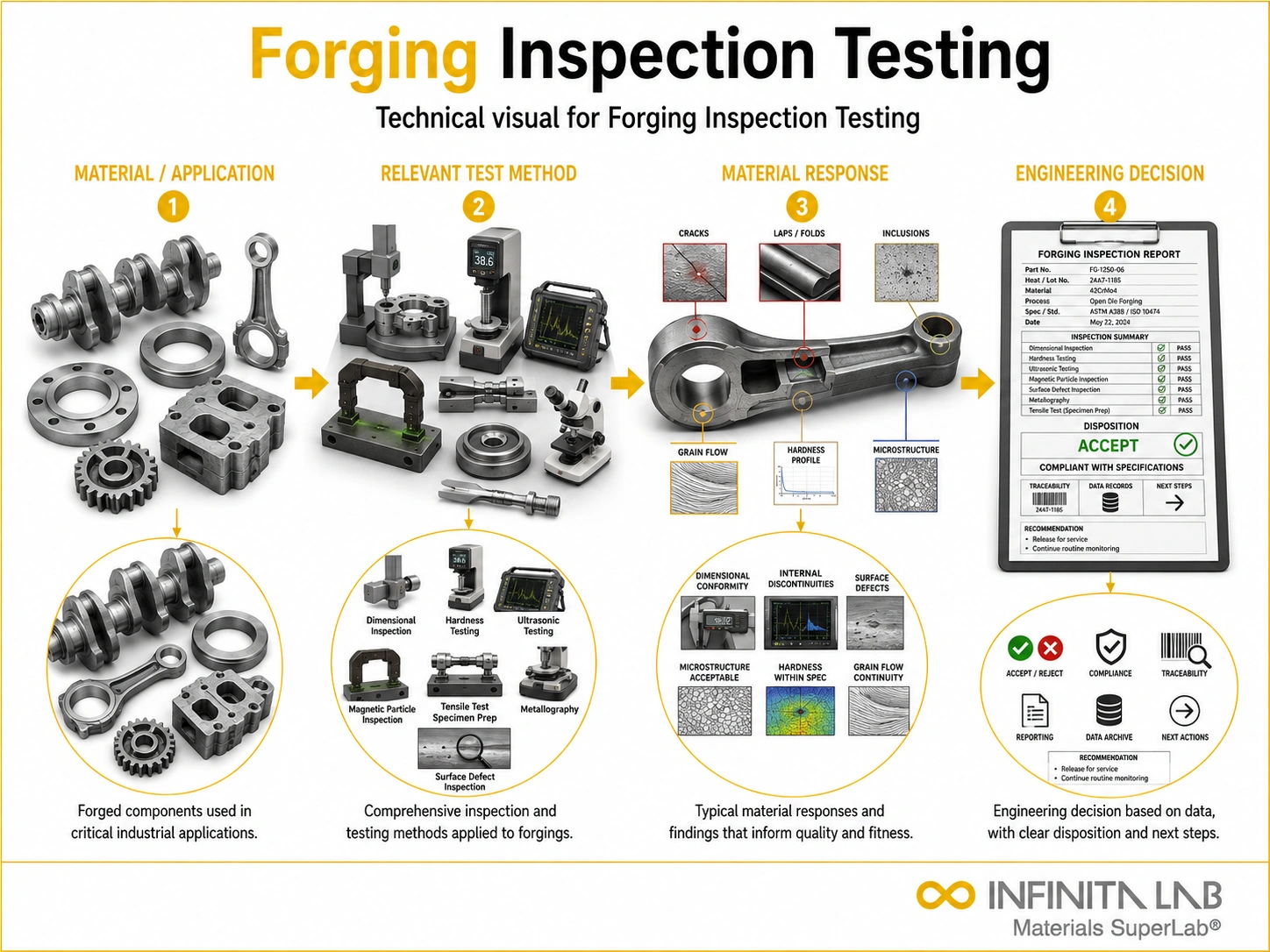

Representative Infinita Engineering Visual explaining the four-step workflow for Forging Inspection Testing.What Is Forging Inspection and Testing?
Forging inspection and testing verifies that a forged metal component is free of internal and surface defects and meets required mechanical properties after the forging process — pressing, pounding, or squeezing heated metal under intense pressure to produce high-strength parts. Because forging defects (laps, cold shuts, internal voids, inclusions) can originate at multiple stages of the process, a complete inspection program typically combines several NDT and destructive test methods.
Non-Destructive Testing Methods
- Ultrasonic testing (UT): the primary method for detecting internal flaws — cracks, inclusions, shrinkage cavities, and voids — using high-frequency sound waves; phased array UT adds beam-steering flexibility for complex forging geometries
- Magnetic particle inspection (MPI): detects surface and near-surface cracks in ferromagnetic forgings by inducing a magnetic field and applying iron particles, which cluster at flux leakage points where a defect disrupts the field
- Liquid penetrant inspection (PT): detects surface-breaking flaws on both ferrous and non-ferrous forgings via dye penetration and developer draw-out, useful where MPI doesn’t apply
- Radiographic testing (RT): provides a visual record of internal discontinuities via X-ray or gamma-ray imaging
Metallurgical and Destructive Testing
Metallographic examination prepares a small specimen by polishing and etching (commonly with 5-10% nitric acid solution for general steel), revealing grain size, microstructure, and micro-cleanliness under an optical or electron microscope. Macrostructure examination reveals flow lines and larger-scale structural features on a cross-section. Mechanical tests — tensile testing for yield strength and elongation, Charpy V-notch impact testing for toughness at temperature, and hardness testing for indentation resistance — confirm the forging meets its specified strength and ductility requirements, with specimens taken from representative locations on the part.
Dimensional Inspection
Coordinate measuring machine (CMM) inspection provides high-precision 3D measurement for complex forging geometries, confirming the finished part fits its intended assembly within specified tolerances.
Inspection Sequence
A typical program layers these methods: visual inspection to catch obvious surface imperfections, followed by magnetic particle or liquid penetrant testing for surface and near-surface cracks, followed by ultrasonic or radiographic testing for internal soundness, with final NDT and dimensional inspection performed after machining to catch any defects introduced during that later processing step.
Industry Specifications Referencing Forging Inspection
- ASTM A388: ultrasonic examination of steel forgings
- ASTM E1444: magnetic particle testing
- ASTM E165: liquid penetrant testing
- Common industries: aerospace, power generation, and military applications requiring NADCAP-accredited forging inspection
Also Read – Pneumatic & Hydraulic System Testing: Flow, Pressure & Seal Integrity
Conclusion
No single inspection method covers every forging defect mode — surface cracks, internal voids, and dimensional nonconformance each require a different test — which is why forging QA programs layer NDT, metallurgical evaluation, and dimensional inspection rather than relying on any one method alone.
Why is inspection important for forged components? Forged parts are often used in high-load and safety-critical applications such as aerospace, automotive, energy, oil and gas, and heavy machinery. Inspection helps detect cracks, laps, seams, inclusions, improper grain flow, dimensional errors, and heat-treatment problems before the component enters service. Early detection reduces the risk of premature failure and costly rework.
What defects can occur during forging? Common forging defects include laps, folds, seams, surface cracks, internal bursts, flakes, incomplete die filling, scale pits, excessive flash, and dimensional distortion. Defects may result from incorrect forging temperature, poor die design, unsuitable material flow, excessive deformation, improper cooling, or contamination in the starting material.
Which non-destructive testing methods are used for forgings? Common NDT methods for forgings include ultrasonic testing, magnetic particle testing, liquid penetrant testing, and visual inspection. Radiographic testing may also be used for certain shapes and materials. The selected method depends on whether the expected defects are located at the surface, slightly below the surface, or deep inside the component.
How is ultrasonic testing used to inspect forgings? Ultrasonic testing sends high-frequency sound waves through the forged material to detect internal discontinuities. It can identify cracks, inclusions, flakes, voids, and areas of incomplete bonding. Straight-beam and angle-beam probes may be used depending on the component geometry and expected flaw orientation. Ultrasonic testing is widely applied to shafts, rings, disks, and large forged blocks.
When is magnetic particle testing appropriate? Magnetic particle testing is used to detect surface and near-surface discontinuities in ferromagnetic materials such as carbon steel and many alloy steels. It is particularly effective for locating fine cracks, seams, laps, and grinding damage. The method cannot be used on nonmagnetic alloys such as aluminum, titanium, or most austenitic stainless steels.
