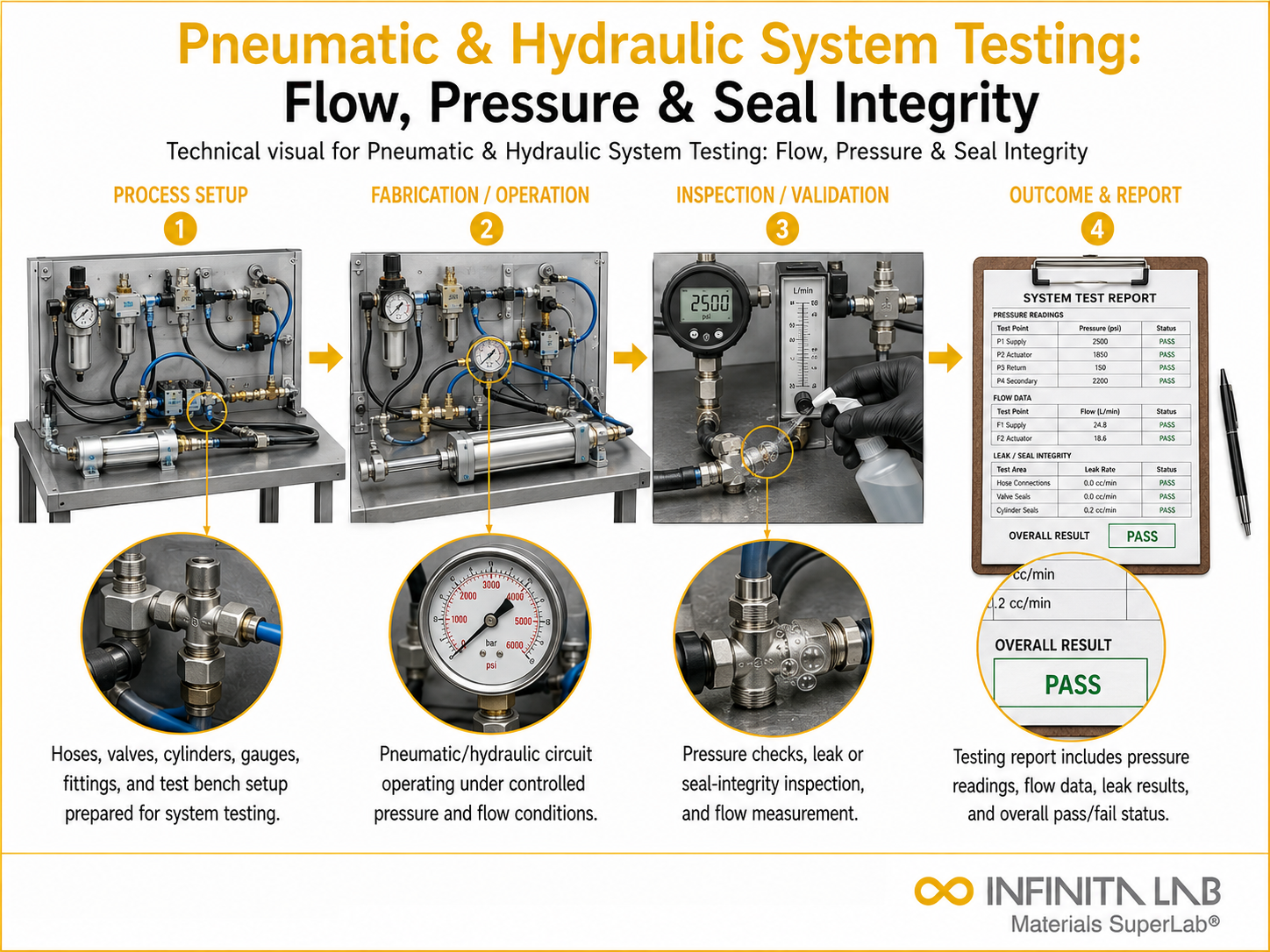

Pneumatic & Hydraulic System Testing: Flow, Pressure & Seal Integrity
Aerospace corrosion testing per MIL-STD-810 evaluating alloy and coating protection performanceWhat are Pneumatic and Hydraulic Characteristics Testing?
Pneumatic and hydraulic characteristics testing evaluates the flow, pressure, leak, and actuation performance of fluid power components and systems — including valves, cylinders, pumps, accumulators, seals, hoses, fittings, and complete fluid power assemblies. These tests verify that components deliver specified flow rates, pressure ratings, and actuation forces while maintaining acceptable leakage levels and surviving their rated operating conditions over their design service lives.
Pneumatic and hydraulic systems are critical power transmission technologies across the industrial machinery, automotive, aerospace, robotics, and heavy equipment industries — and the performance of every fluid power system is only as reliable as the components that compose it.
Key Parameters Measured
Flow Rate and Flow Coefficient (Cv / Kv)
The flow coefficient quantifies a valve’s or component’s flow capacity — the volumetric flow rate of water (for liquids) or equivalent air flow it passes at a defined pressure drop. Measuring Cv/Kv per ISA 75.01 (control valves) or ISO 6358 (pneumatic components) establishes component flow capacity for circuit design and component selection.
Pressure Drop Characteristics
The pressure drop across a component as a function of flow rate — generating the ΔP-Q characteristic curve. This data is used in hydraulic circuit calculations and pneumatic system sizing to ensure adequate system performance under all operating conditions.
Leak Testing
Fluid power components are tested for both:
- Internal leakage (bypass leakage): Flow past a closed valve seat, worn cylinder piston seals, or pump clearances — reducing actuator efficiency
- External leakage: Flow from the pressure circuit to the atmosphere through housing seals, fitting connections, or housing defects — a safety, environmental, and efficiency concern
Standard test methods include pressure decay, mass-flow leakage measurement, and bubble-emission testing (for gas-filled systems).
Pressure Rating Verification
Components are hydrostatically proof-tested to verify that they can sustain a defined overpressure multiple (typically 1.5× working pressure) without permanent deformation, leakage, or failure — per ISO 4413 (hydraulic systems) and ISO 4414 (pneumatic systems).
Actuation Force and Stroke
For hydraulic and pneumatic cylinders, actuation force (thrust) at the specified pressure and bore diameter is measured to verify agreement with design calculations and specification sheets. Friction force (seal drag) is measured separately to determine the net breakout force required to initiate movement.
Endurance and Cycle Life Testing
Fluid power components are subjected to accelerated cycle testing — repeatedly actuating through full stroke at rated pressure for millions of cycles to verify seal durability, wear resistance, and component fatigue life.
Applicable Standards
Standard | Scope |
ISO 4413 | Hydraulic fluid power safety and performance requirements |
ISO 4414 | Pneumatic fluid power safety and performance requirements |
ISO 6358 | Pneumatic component flow rate characteristics |
ISO 10100 | Pneumatic cylinder test methods |
NFPA T3.6.7 | Hydraulic cylinder testing |
ISA 75.01 | Control valve flow coefficient testing |
Conclusion
Pneumatic and hydraulic characteristics testing is the objective verification that fluid power components will perform as specified in the systems where they are installed. Flow coefficients, leakage rates, pressure ratings, and cycle life — all measured under defined, reproducible test conditions — provide the engineering data that circuit designers rely on for reliable system performance and that quality engineers use to ensure production consistency.
Why Choose Infinita Lab for Pneumatic and Hydraulic Testing?
Infinita Lab offers comprehensive pneumatic and hydraulic characteristics testing services — a comprehensive lab network, project management, confidentiality, and rapid turnaround. Trust Infinita Lab for your material and component testing needs, faster test results, cost savings, and reduced administrative workload.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the difference between Cv and Kv flow coefficients? Cv is the US customary flow coefficient — gallons per minute of water at 60°F passing through the valve at 1 psi pressure drop. Kv is the SI equivalent — cubic meters per hour of water at 1 bar pressure drop. The conversion is Cv = 1.156 × Kv. Both quantify valve flow capacity; the applicable standard determines which unit is required.
What is the difference between internal and external hydraulic leakage? Internal leakage bypasses from high-pressure to low-pressure ports within the component — reducing actuator efficiency and causing drift. External leakage escapes from the hydraulic system to atmosphere — creating contamination, fire risk, and environmental concerns. Both are measured separately with different test configurations and have different acceptance criteria.
What pressure is used for hydraulic component proof testing? I ISO 4413 specifies proof test pressure at 1.5× maximum allowable working pressure (MAWP), maintained for a defined period without permanent deformation, leakage, or failure. Burst test pressure is typically 4× MAWP — applied to verify structural margin before catastrophic failure.
How are pneumatic valve flow characteristics measured per ISO 6358? ISO 6358 uses a choked-flow test method — measuring sonic conductance (C) and critical back-pressure ratio (b) by passing air through the component at sufficient upstream pressure to achieve choked (sonic) flow at the throat. These parameters fully characterize the component's pneumatic flow behavior across all operating conditions.
What is endurance cycle testing for pneumatic cylinders? Endurance testing cycles a pneumatic cylinder through its full stroke repeatedly — typically 1–10 million cycles at rated pressure — monitoring seal condition, friction change, and dimensional stability throughout. NFPA T3.6.7 and ISO 10100 define the test conditions, acceptance criteria, and inspection intervals for cylinder endurance qualification.
