Metal Fabrication Inspection Methods: NDT, Visual & Dimensional Testing

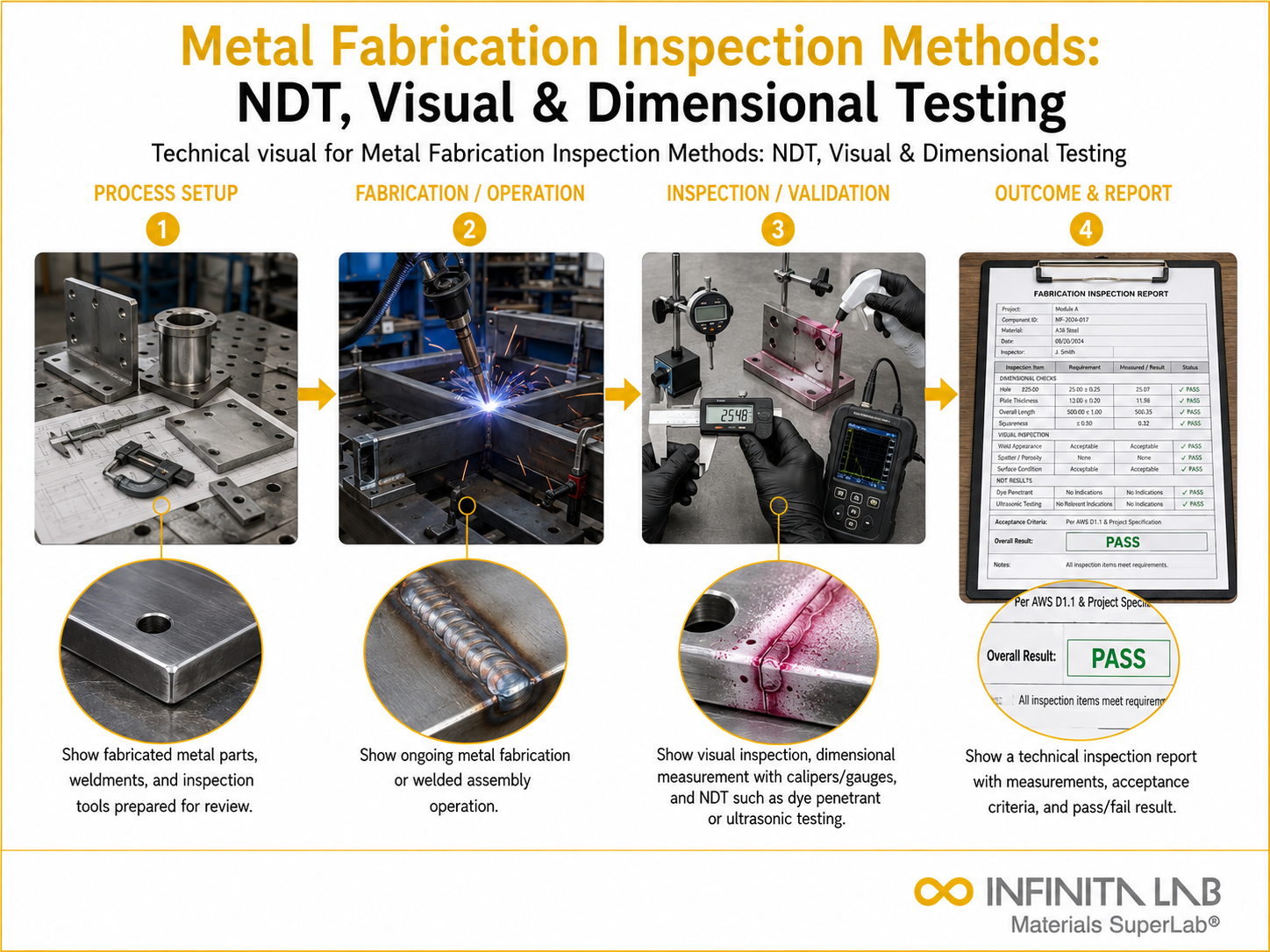

Metal fabrication inspection combining visual, dimensional, and NDT methods at Infinita LabWhat Is Metal Fabrication Inspection?
Metal fabrication inspection encompasses all measurement, testing, and evaluation activities performed to verify that fabricated metal components conform to design specifications, dimensional tolerances, and material property requirements. It spans the entire fabrication workflow — from incoming raw material verification through in-process monitoring to final part acceptance.
Rigorous inspection is essential in industries such as aerospace, automotive, energy, shipbuilding, heavy machinery, and electronics, where fabricated metal components must perform reliably under demanding operational conditions.
Why Metal Fabrication Inspection Is Critical
Defects introduced during fabrication — whether dimensional deviations, weld discontinuities, heat-affected zone cracking, or surface damage — can compromise component integrity and lead to costly field failures. Systematic inspection:
- Validates conformance to engineering drawings and standards
- Detects defects early before they propagate to downstream processes
- Provides documented evidence of quality for regulatory compliance
- Supports warranty claims and traceability throughout the supply chain
Key Metal Fabrication Inspection Methods
Dimensional and Geometric Inspection
Dimensional inspection verifies that machined, formed, and assembled components meet the geometric dimensioning and tolerancing (GD&T) requirements of engineering drawings. Key tools include:
- Coordinate Measuring Machines (CMM) for 3D measurement
- Optical comparators and vision systems for 2D profile comparison
- Laser trackers for large-structure inspection
- Callipers, micrometres, and go/no-go gauges for production-floor verification
Visual Inspection
Visual inspection is the first line of defence against surface defects, including cracks, porosity, undercuts, surface roughness anomalies, corrosion, and improper surface finish. AWS D1.1 (structural welding) and ASME standards specify acceptance criteria for visual weld inspection.
Non-Destructive Testing (NDT)
NDT methods evaluate internal and surface integrity without damaging the component:
- Radiographic Testing (RT): X-ray or gamma-ray imaging detects internal weld defects, voids, and inclusions
- Ultrasonic Testing (UT): Detects internal discontinuities, including cracks, laminations, and incomplete fusion in welds
- Magnetic Particle Inspection (MPI): Identifies surface and near-surface defects in ferromagnetic materials
- Dye Penetrant Testing (DPT): Reveals surface-breaking cracks and porosity in all metallic materials
- Eddy Current Testing (ECT): Detects surface and subsurface defects in conductive materials without contact
Mechanical Testing
Destructive testing of coupons or test pieces from fabrication batches verifies tensile strength, yield strength, hardness, impact toughness, and fatigue life against material specifications.
Weld Inspection
Welds are among the most critical features in fabricated assemblies. In addition to visual and NDT inspection, macro-examination of weld cross-sections, hardness mapping, and bend testing are performed to verify weld quality and heat-affected zone properties.
Surface Finish Inspection
Surface roughness, coating adhesion, coating thickness, and corrosion protection integrity are measured to ensure fabricated components meet functional and aesthetic requirements.
Inspection at Each Fabrication Stage
Incoming material inspection verifies mill certificates and material chemistry. In-process inspection during cutting, forming, welding, and machining prevents defect accumulation. Final inspection confirms dimensional conformance, surface quality, NDT acceptance, and documentation completeness before shipment.
Conclusion
Metal fabrication inspection is a critical quality control process that ensures fabricated components meet design specifications, dimensional tolerances, and performance requirements. By combining dimensional checks, visual inspection, non-destructive testing, and mechanical verification across all fabrication stages, manufacturers can detect defects early, ensure compliance with standards, and deliver reliable, high-quality metal products for demanding industrial applications.
Why Choose Infinita Lab for Metal Fabrication Inspection?
Infinita Lab offers complete metal fabrication inspection services — dimensional, NDT, mechanical, and surface — through our nationwide network of 2,000+ accredited laboratories. Our Single Point of Contact model ensures seamless coordination across multi-method inspection programmes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you.
Frequently Asked Questions (FAQs)
What is metal fabrication inspection? It is the process of measuring, testing, and evaluating fabricated metal components to ensure they meet design and quality requirements.
Why is inspection important in metal fabrication? It helps detect defects early, ensures compliance with standards, and prevents costly failures in service.
What are the main inspection methods used? Common methods include dimensional inspection, visual inspection, non-destructive testing (NDT), mechanical testing, and weld inspection.
What is NDT in metal fabrication? Non-destructive testing (NDT) includes techniques like ultrasonic, radiographic, and dye penetrant testing to detect defects without damaging the part.
What types of defects are commonly detected? Defects include cracks, porosity, weld discontinuities, dimensional deviations, and surface imperfections.
