ASTM D2562: Visual Defect Classification in Reinforced Plastics
What Is ASTM D2562?
ASTM D2562 is the standard practice for classifying visual defects in parts molded from reinforced thermosetting plastics — specifically those produced by compression and transfer molding processes. The standard provides standardized word descriptions and acceptance criteria for the visual defects that can occur in fiber-reinforced thermoset molded parts, creating a common language between manufacturers, customers, and quality inspectors for defect identification, classification, and acceptance/rejection decisions.
ASTM D2562 is applied across the industrial molded parts, electrical components, structural composites, and specialty thermoset industries wherever reinforced thermoset compression and transfer molded components must meet defined visual quality standards.
Why Visual Defect Classification Standards Are Needed
Reinforced thermosetting plastic molded parts are prone to a variety of surface and subsurface defects arising from the molding process, resin system, fiber reinforcement, mold design, or process parameter deviations. Without a standardized classification framework, the same defect feature may be described differently by different organizations — creating contractual ambiguity, inconsistent incoming inspection decisions, and unnecessary disputes over acceptance/rejection.
ASTM D2562 solves this problem by providing:
- Standardized defect type names and word descriptions
- Defined acceptance levels by defect type and product quality grade
- Consistent inspection methodology (unaided visual inspection)
Defect Types Classified by ASTM D2562
Surface Defects
Blisters: Raised areas on the surface caused by trapped gas, moisture, or resin volatiles expanding during cure. Classified by diameter and height above the nominal surface.
Cracks: Surface or through-cracks in the molded part — subdivided by orientation (transverse, longitudinal, irregular) and length. Cracks are among the most serious defect classifications as they may indicate structural compromise.
Crazing: Network of fine surface cracks creating a crazed appearance — often from thermal stress, solvent contact, or UV degradation. Classified by area and crack density.
Delamination: Separation of surface plies from the bulk laminate — visible as lifted, unbonded surface layers. Critical defect for structural applications.
Pitting: Small surface cavities from trapped gas, inadequate mold fill, or cure shrinkage. Classified by depth and diameter.
Sink marks: Surface depressions corresponding to internal void or thick-section shrinkage. Classified by depth and area.
Flash: Thin fins of excess material at the parting line or other mold interfaces — not structurally critical but cosmetically objectionable and potentially functionally problematic in assemblies.
Subsurface and Internal Defects (Visually Detectable)
Voids: Internal cavities visible through translucent parts or detectable by surface depression. Critical where structural performance is required.
Fiber print-through: Visible surface texture caused by fiber bundles or woven fabric reinforce showing through the resin surface layer — an aesthetic and potential surface finish defect.
Resin-rich / resin-starved areas: Zones of excessive or insufficient resin relative to the reinforcement — affecting surface appearance, mechanical properties, and chemical resistance.
Knit lines / weld lines: Meeting points of two resin flow fronts — potential stress concentration sites visible as surface lines or color changes.

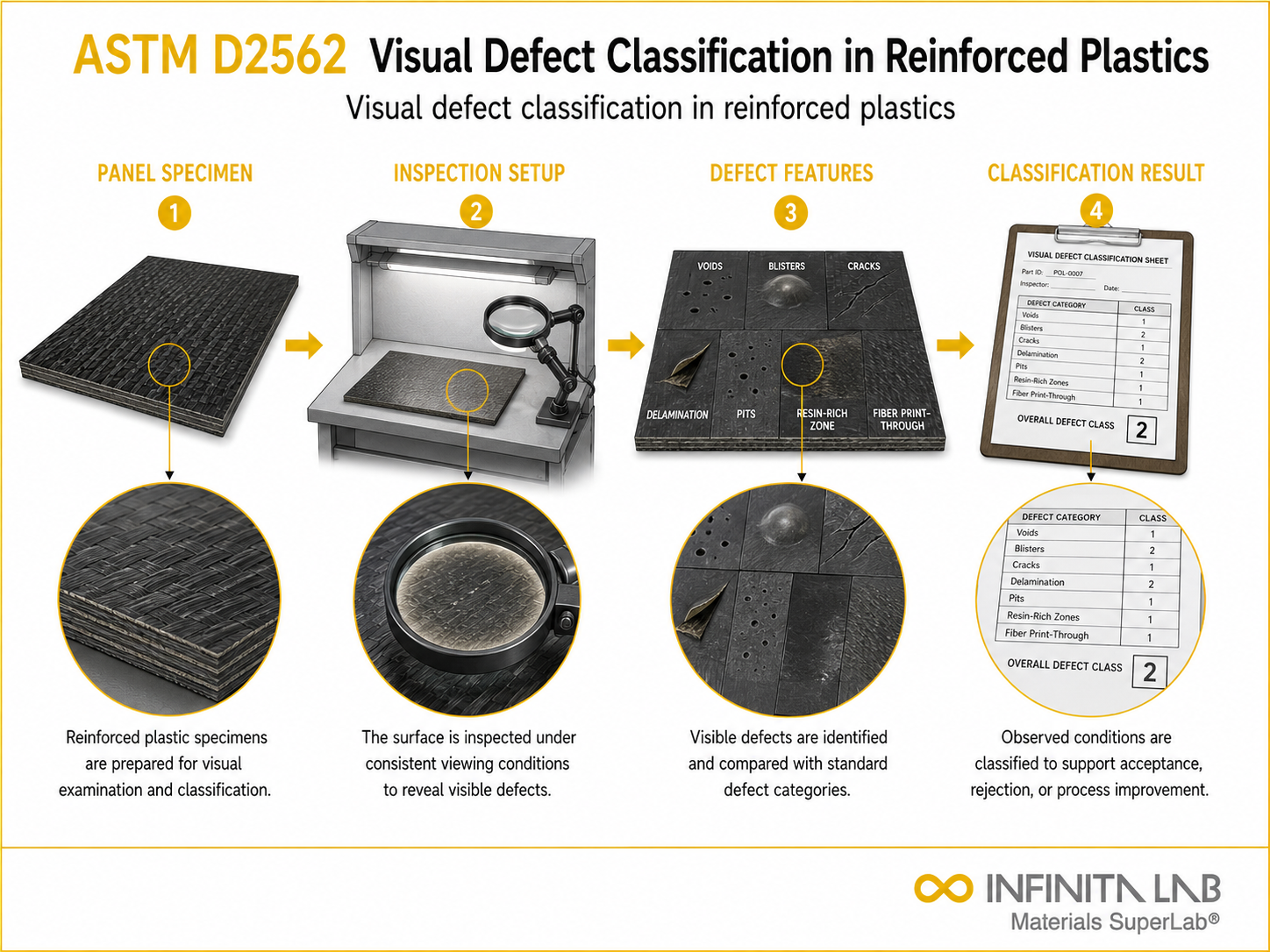

Inspection Methodology
ASTM D2562 specifies that each part shall be checked visually without the aid of magnification — under appropriate illumination with the inspector at normal reading distance. Defects are classified as to type and level per the standard’s descriptions. The standard categorizes inspection requirements into quality grades defining maximum acceptable defect levels — with the applicable grade selected by the customer specification or contract.
Conclusion
ASTM D2562 provides the shared visual quality vocabulary that allows reinforced thermoset molded part manufacturers and customers to communicate defect requirements and make consistent, defensible acceptance decisions. Implementing D2562 criteria in inspection procedures eliminates the subjectivity that otherwise characterizes visual quality control — replacing individual judgment with standardized, reproducible classification criteria.
Why Choose Infinita Lab for Visual Inspection and Composite Testing Services?
Infinita Lab offers comprehensive visual defect inspection, composite testing, and quality characterization services across an extensive network of accredited facilities. Our advanced equipment and expert professionals deliver highly accurate and prompt test results, helping businesses achieve quality compliance and product reliability.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What types of molding processes does ASTM D2562 cover? ASTM D2562 specifically covers compression molding and transfer molding of reinforced thermosetting plastics — processes used for BMC (bulk molding compound), SMC (sheet molding compound), and preform compression molding of polyester, vinyl ester, and epoxy composites. Injection molded and pultrusion thermosets are outside its scope.
Is magnification permitted during ASTM D2562 visual inspection? No. ASTM D2562 explicitly requires that inspection be conducted without magnification — at normal viewing distance under appropriate illumination. This reflects the standard's intent to classify defects visible during normal end-use inspection, not micro-scale features detectable only under optical magnification.
How does ASTM D2562 relate to ASTM D2563? ASTM D2563 is the companion standard covering visual defect classification for glass-reinforced plastic (GRP) laminates — specifically hand-layup and spray-up laminate products. ASTM D2562 covers compression and transfer molded thermosetting parts. Both standards address visual quality but for different manufacturing processes and product forms.
What are the most structurally critical defects classified by ASTM D2562? Delaminations, cracks, and large-area voids are the most structurally critical defects — potentially compromising load-carrying capacity, fatigue resistance, and chemical barrier performance. Pitting, fiber print-through, and minor sink marks are primarily aesthetic defects with limited structural implications at specified size limits.
Can ASTM D2562 be used for electronic and electrical thermoset components? Yes. Thermoset compression-molded electrical and electronic components — switchgear housings, circuit breakers, and electrical insulators made from glass-filled polyester, phenolic, or melamine — frequently reference ASTM D2562 for visual quality acceptance criteria. Electrical applications may require tighter defect limits than structural applications due to the impact of surface cracks and pitting on dielectric performance.
